EBYTE E70-900T14S2 TI CC1310 chip Wireless Serial Port Module Support Air Wakeup SMD RSSI Signal Strength IPX/Stamp Hole Antenna UART Module - IOT Module Shop Manufacturer Factory – Ebyte Official Store - IoT Module Manufacturer

EBYTE E70-900T14S2 TI CC1310 chip Wireless Serial Port Module Support Air Wakeup SMD RSSI Signal Strength IPX/Stamp Hole Antenna UART Module

$5.39

Shipping calculated at checkout.

E70-900T14S2 IPEX/Stamp Hole Ti 868/915 Mhz Transceiver Receiver TI CC1310 SoC Wireless Module [IC]:CC1310 [Frequency]:861~922.5MHz [Power]:14dBm [Distance]:1.5km [Product weight]:1.2g±0.1g [Size]:14*20mm [Introduction]:E70-900T14S2 wireless transceiver modules, operating at 861~922.5MHz (Default : 868/915MHz), is... Read more

Availability: In Stock

Shipping: Free Air Shipping Over $89.99(China Post only)If the China post cannot deliver, other logistics need to pay extra postage delivery

Ship From: China EBYTE Manufacturer Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes

Module plus antenna: E70-900T14S2

  • E70-900T14S2

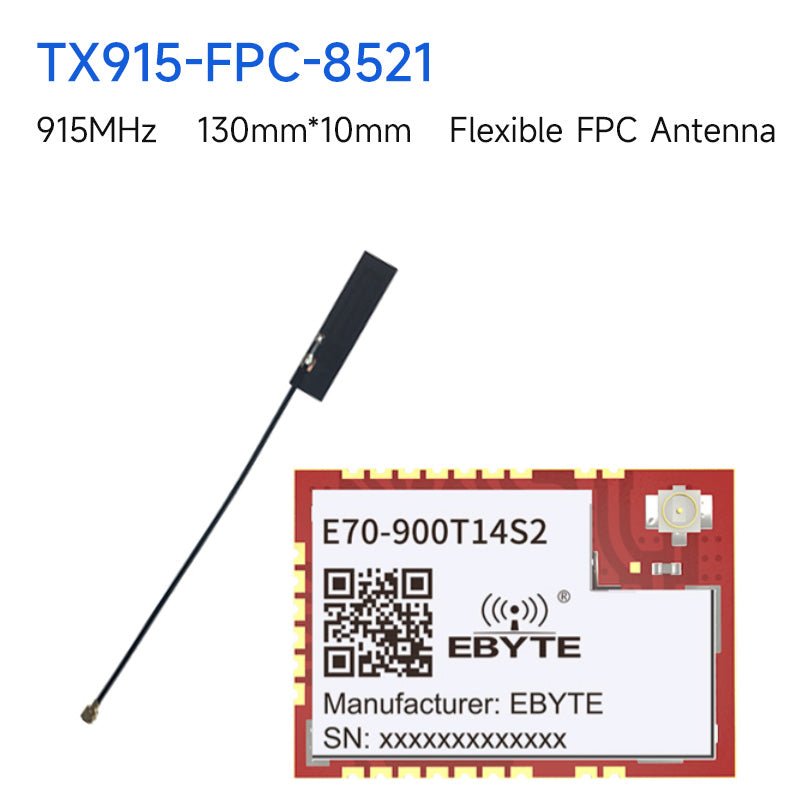

  • E70-900T14S2 and TX915-FPC-8521

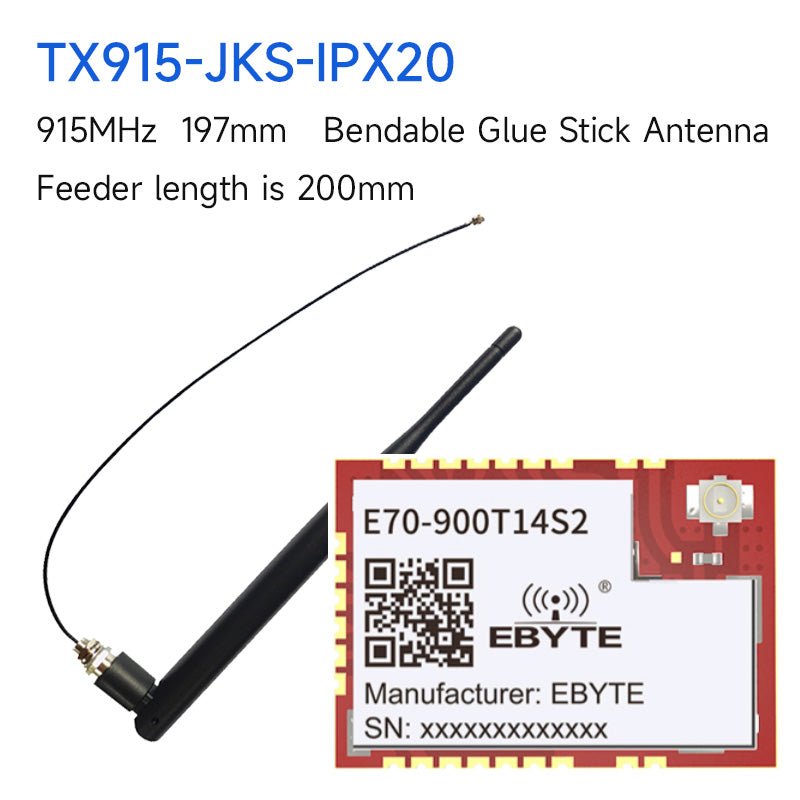

  • E70-900T14S2 and TX915-JKS-IPX20
Ne sera pas expédié avant [19041994]
$5.39
Produit en rupture
Référence produit : E70-900T14S2N/ATags : 868MHz/915MHz, CC1310, IPX, RFIC, SMD, Stamp hole

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

When will the order be shipped?

We have sufficient goods in stock. We will send out goods within 1 to 2 working days after payment. We use China Post Air Mail as our regular shipping method. It normally takes 7 to 15 working days to arrive. Free shipping applies to orders over $89.99, excluding fiberglass antennas and power supplies. More Shipping Policies

How can I track my shipment?

After shipment, you will receive an email with the tracking number, such as LZ4177733XXCN. Check logistics status here: https://ebyteiot.com/apps/17TRACK

How to buy samples priced at $0.1?

You can mix different sample types. Each order can buy maximum 2 pieces. Buy $0.1 Sample

Where can I download product manuals?

You can download related documents directly on each product page. More materials:https://www.cdebyte.com/Product-Selection

How about product performance?

All EBYTE products support return and exchange within 30 days. Our items work steadily and you do not need to worry about after-sales problems.

What certifications do the products own?

Our goods have passed CE, FCC and RoHS certifications. You can download certification files on product pages directly, fully meeting compliance requirements.

What is the price for bulk purchase?

You can place bulk orders directly online. Large orders of 50, 200, 500, 1000 pieces and above enjoy factory discounted prices. Shipping cost can be checked on the page. Delivery takes 7 to 15 working days.

Why check firmware version before bulk order?

If you buy products in large quantity, please confirm the firmware version of bulk goods is the same as your test sample. This ensures normal operation of your project.
If you cannot confirm the version number, contact online customer service or send emails to ebyteiot@cdebyte.com for confirmation.

Can I apply for an invoice?

Send your request to ebyteiot@cdebyte.com and mark your order number like #3188, we will make the invoice for you quickly.

What if I bought the wrong product model?

  1. If your order has not been shipped, email us immediately to change the item or get a refund to place a new order.
  2. If your order has already been shipped, please contact us within 30 days to apply for return or refund. More Returns & Refunds Policies

What if the package is detained or sent back by customs?

We will refund you immediately after receiving the goods, or arrange redelivery twice.

How to solve other technical problems?

Contact online support staff or send emails to ebyteiot@cdebyte.com. Our professional engineers will help you fix all technical issues.

How to contact us?

Email: ebyteiot@cdebyte.com.

Phone: +86-028-61543675

Fax: 0086-028-64146160

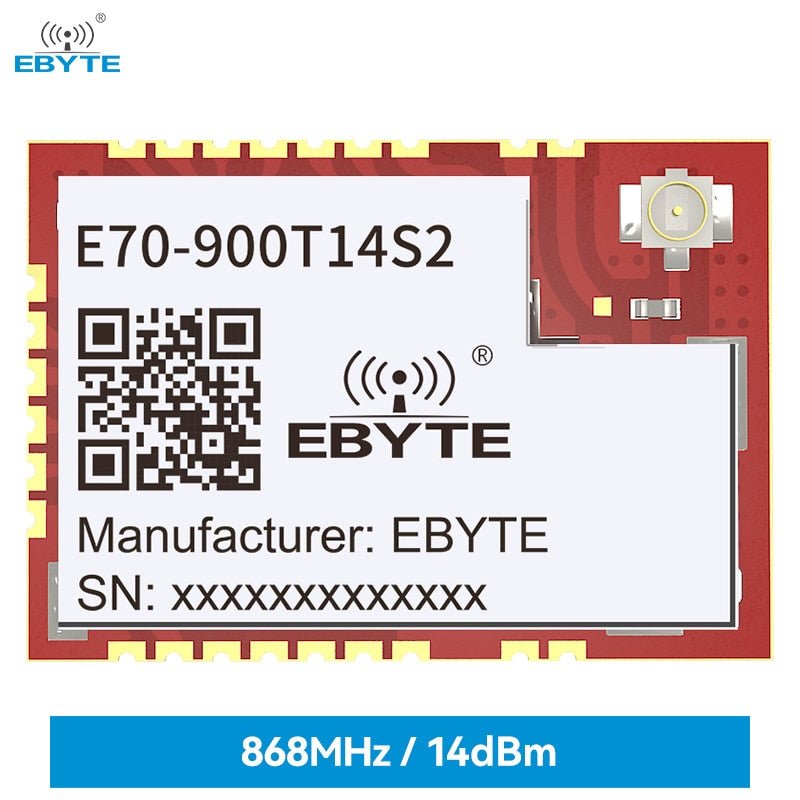

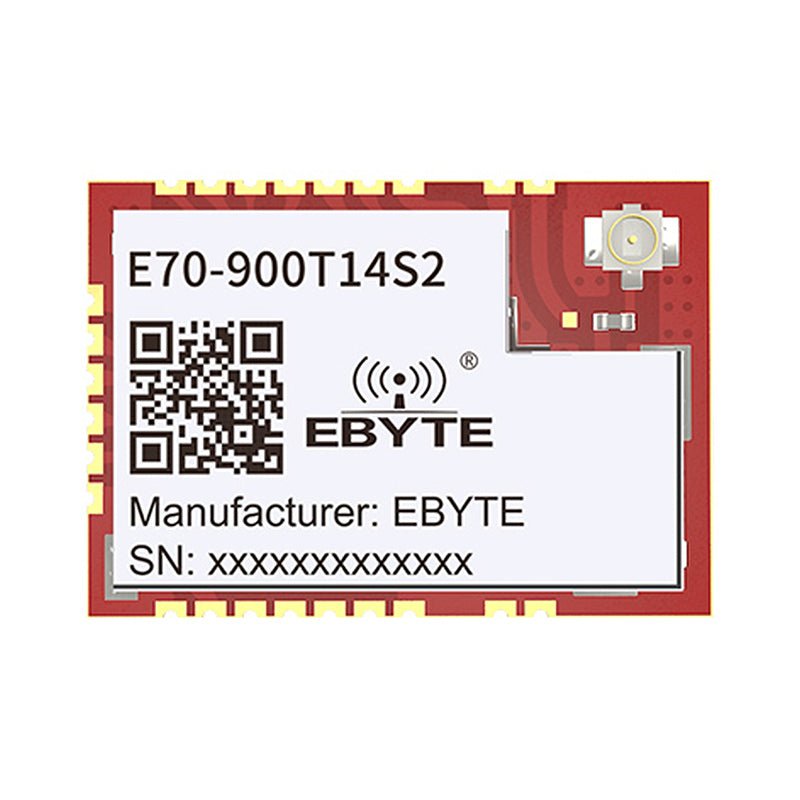

E70-900T14S2 IPEX/Stamp Hole Ti 868/915 Mhz Transceiver Receiver TI CC1310 SoC Wireless Module

[IC]:CC1310

[Frequency]:861~922.5MHz

[Power]:14dBm

[Distance]:1.5km

[Product weight]:1.2g±0.1g

[Size]:14*20mm

[Introduction]:E70-900T14S2 wireless transceiver modules, operating at 861~922.5MHz (Default : 868/915MHz), is based on originally imported CC1310 from TI, with TTL level output, 3.3V IO port voltage,24MHz industrial high-precision low-temperature drift crystal vibration; Ensure its industrial ability and stability.

Experience reliable wireless communication with the CC1310 Wireless Serial Port Module. with a UART interface and an IPX/Stamp Hole Antenna. It features air wakeup capability with a 3.3V IO port voltage and E70-900T14S2 wireless transceiver module operating at 861-922.5MHz (Default 868/915MHz). Get accurate readings with 24MHz industrial grade low-temperature drift crystal oscillator.

Brand Name: EBYTE

Origin: Mainland China

Condition: New

Type: Wireless Serial Port Module

Model Number: E70-900T14S2

Operating Temperature: -40℃-85℃

Application: Smart Home

Package: SMD

Power Supply Voltage: Max:3.8V

Antenna: IPX/Stamp Hole

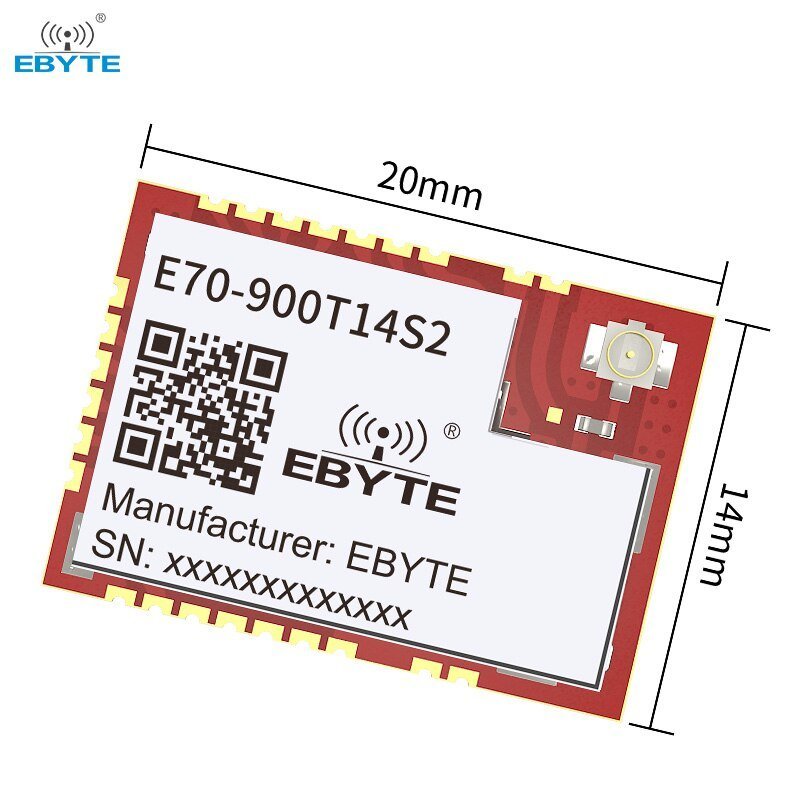

Size: 14*20mm

Main parameter Performance
Remark
Distance for reference
1500m

Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 2.5kbps

TX length
Transmission mode specification

See transmission mode for details

Buffer
2048 Btye

-

Modulation
GFSK

-

Communication interface
UART

-

Package
SMD

-

Connector
Stamp hole

Spacing of 1.27 mm

Size
14*20 mm

-

Antenna
IPEX/Stamp hole

50 ohm impedance

Main parameter Min. Typ. Max. Unit Remark
Operating voltage
2.2
3.3 3.8 V ≥3.3V ensures output power
Communication level - 3.3
- V
For 5V TTL, it may be at risk of burning down
Operating temperature
-40
- +85

Industrial design
Operating frequency
861
- 922.5
MHz
Support ISM band
Transmitting current
- 36 - mA
Instant power consumption
Receiving current
- 8 - mA
-
Turn-off current
- 1.2 - μA
Software is shut down
Max Tx power
13.6 14 15.3 dBm
-
Receiving sensitivity
-107 -108
-109 dBm
Air data rate is 2.5kbps
Air data rate
2.5k
2.5k
168k
bps
Controlled via user’s programming
