[Chip solution]:LoRa solution
[Transmitter Power]:30dBm
[Communication distance]:10km

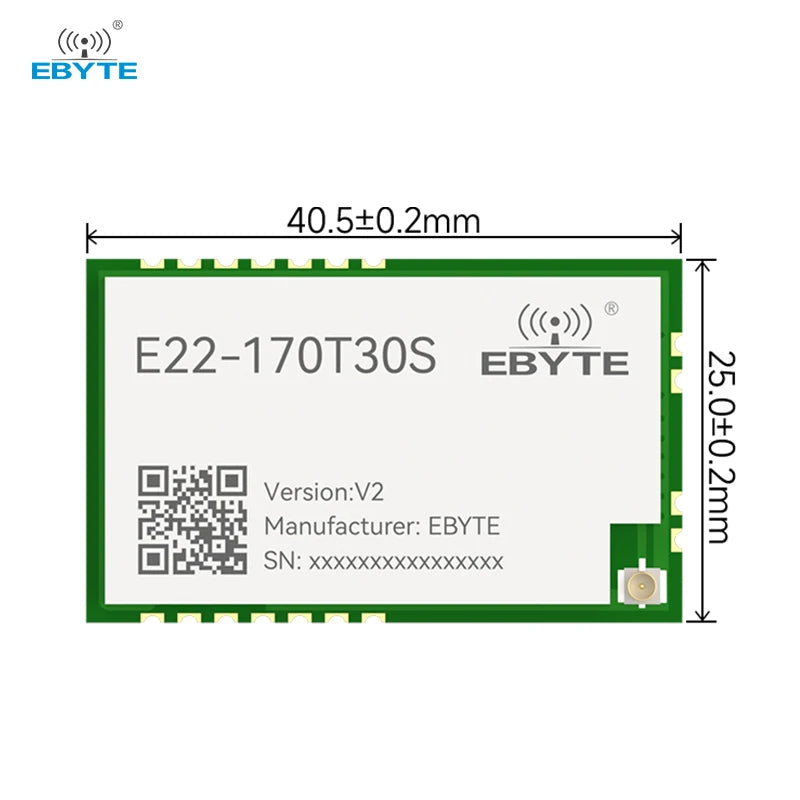

[Size]: 25 x 40.5mm
[Product weight]:5.8 ± 0.2g

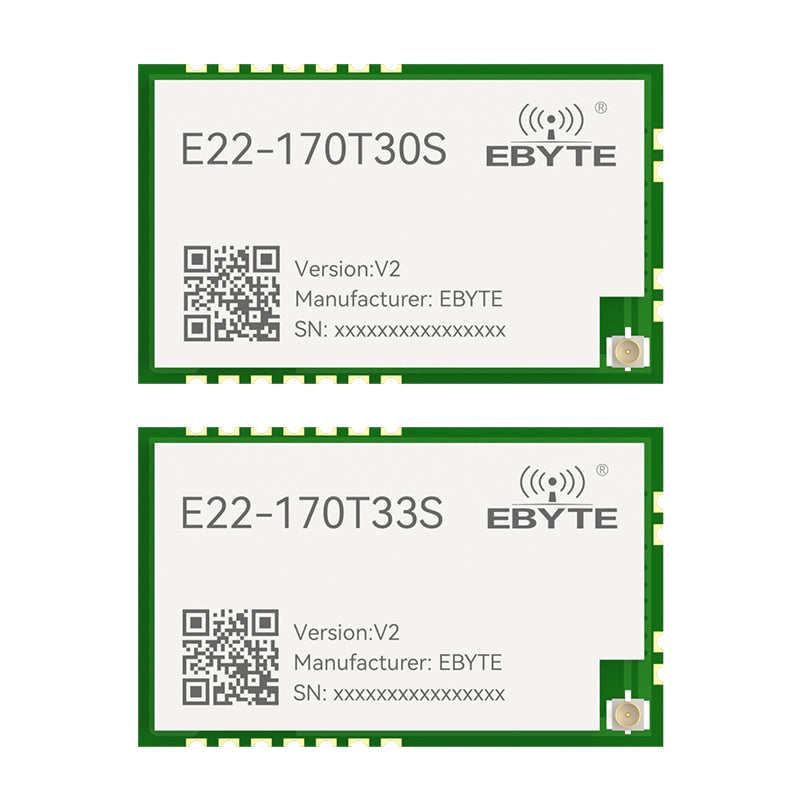

[Introduction]:The E22-170T30S is a new-generation LoRa wireless data transmission module. Developed based on SEMTECH's high-performance RF chip, this series (UART) LoRa module boasts a maximum transmit power of 33dBm, multiple transmission modes, and an operating frequency range of 150.125MHz to 173.125MHz (factory default: 170.125MHz). It features TTL output and is compatible with 3.3V IO port voltage. This wireless module utilizes the latest generation LoRa spread spectrum technology, resulting in faster speeds, lower power consumption, and a smaller size. It supports functions such as wake-up over air, wireless configuration, carrier sensing, automatic relaying, and communication key authentication. It also supports packet length configuration and offers custom development services.

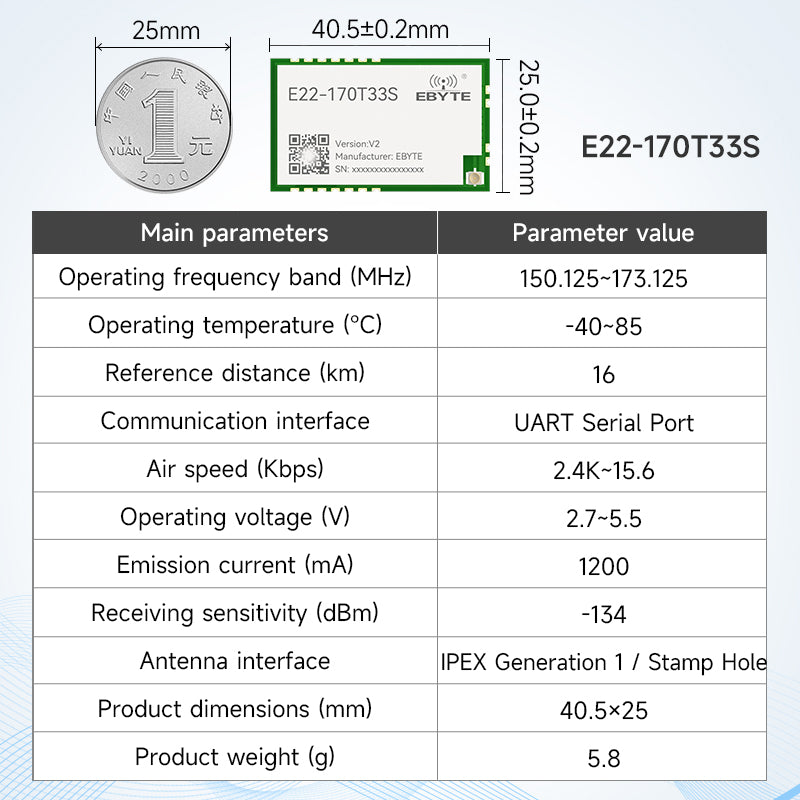

[Solución de chip]:Solución LoRa
[Potencia de transmisión]: 33dBm
[Distancia de comunicación]: 16km
[Tamaño]: 25 x 40,5 mm
[Peso del producto]: 5,8 ± 0,2 g

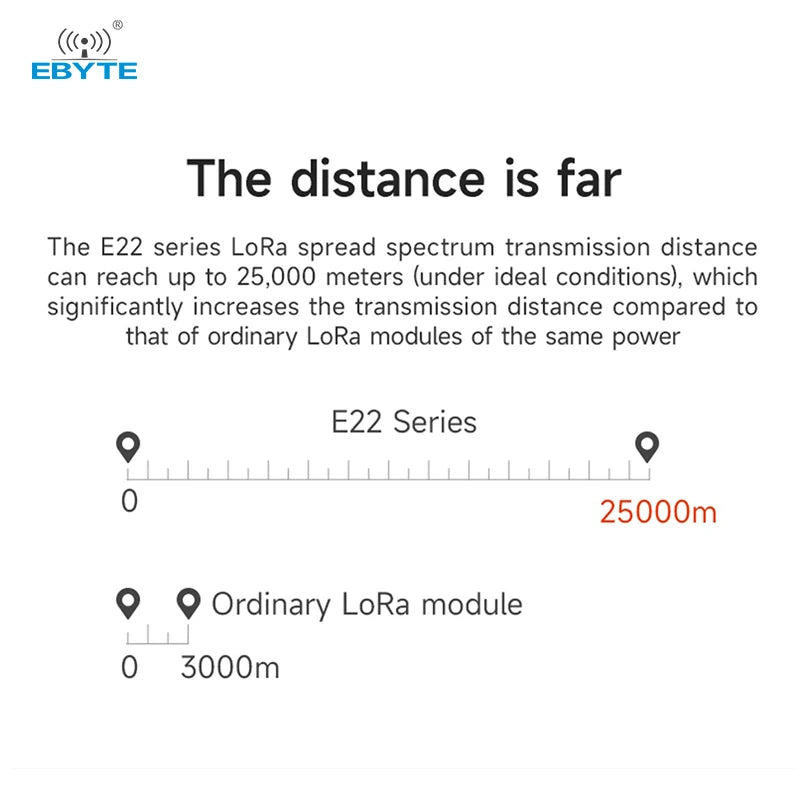

RF parameters | unit | Parameter value | Remark |
Maximum transmit power | dBm | 30.0±1 | - |
Receive sensitivity | dBm | -133 ~ -131 | The air rate is 2.4kbps |
Reference distance | m | 10k | In a clear and open environment, the antenna gain is 5dBi, the antenna height is 2.5 meters, and the air data rate is 2.4kbps. |
Operating frequency band | MHz | 150.125~173.125MHz | Default frequency band 170.125MHz |
Air speed | bps | 2.4K~15.6K | User programmable control |
Electrical parameters | unit | Parameter value | Remark | |
Operating voltage | In | 2.7~5.5 | ≥5V can guarantee the output power , and exceeding 5.5V may cause the risk of burning the module. | |
Communication level | In | 3.3V | Using 5V TTL may cause burnout | |
Power consumption | Emission current | m.a. | 650 | E22-170T30S instantaneous power consumption @30dBm |
Receive current | m.a. | 14 | ||
Sleep current | a | 2 | Software shutdown | |
temperature | Operating temperature | ℃ | -40~+85 | Industrial-grade design |
Storage temperature | ℃ | -40~+85 | Industrial-grade design |
Hardware Parameters | Parameter value | Remark |
Crystal oscillator frequency | 32MHz | Industrial-grade high-precision crystal oscillator |
Modulation method | LoRa | New generation LoRa modulation technology |
Interface | 1.27mm stamp hole | |
Communication interface | UART serial port | TTL level |
Launch length | 240 Byte | The command can be set to send packets of 32/64/128/240 bytes |
Packaging | SMD | - |
Cache capacity | 1000Byte | - |
Antenna interface | IPEX generation/stamp hole | Equivalent impedance is about 50Ω |
size | 40.5 * 25 mm | ±0.2mm |
Product Net Weight | 5.8g | ±0.2g |
