[Working voltage]:2.7-3.6V
[Communication protocol]:IEEE 802.11b/g/n + BLE5.2
[Transmitting power]:18dBm
[Communication distance]:500m
[Product size]:10*10mm

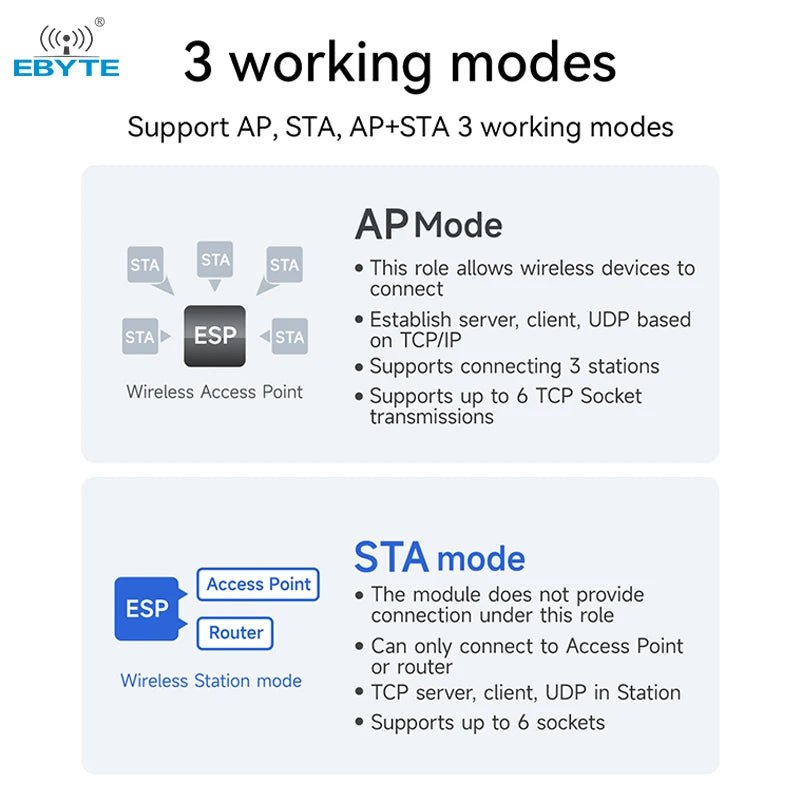

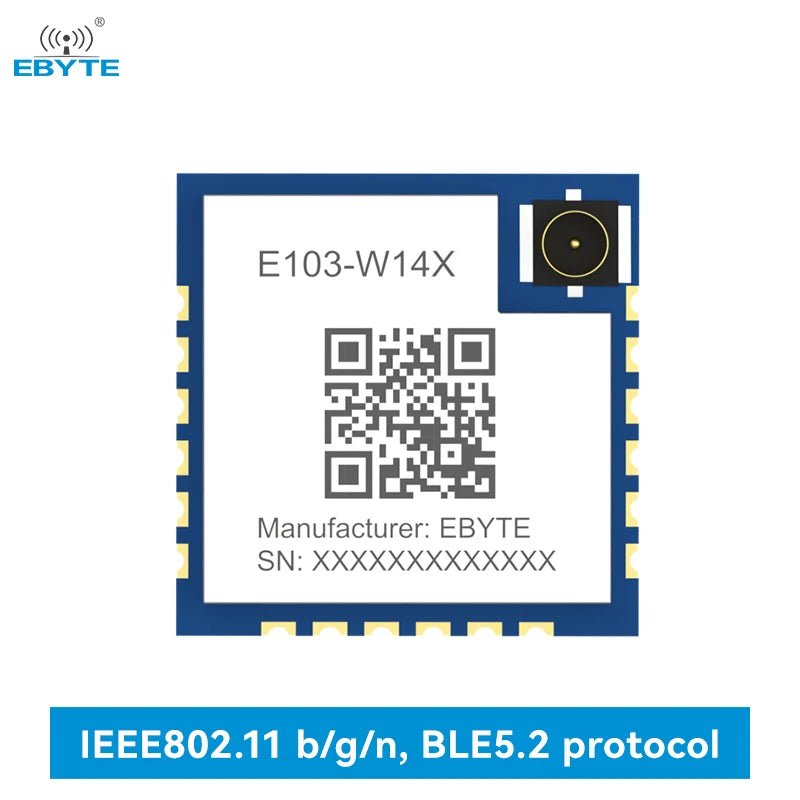

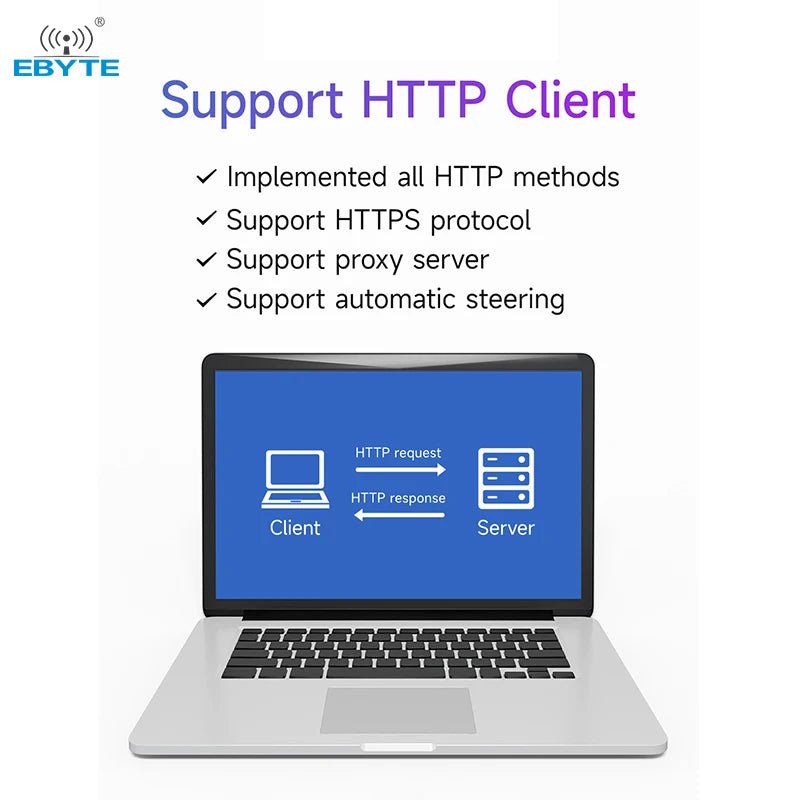

[Introduction]:E103-W14X is a low-power, cost-effective, IPEX antenna Wi-Fi + ble module developed by Ebyte, which complies with BLE5.2 and IEEE 802.11b/g/n standard protocol specifications. This WiFi module integrates the hardware and software resources required for complete Wi-Fi and BLE applications, supports AP, STA, AP+STA 3 Wi-Fi working modes and low-power BLE, and is very suitable for low-rate applications and data acquisition applications such as smart home and industrial control.

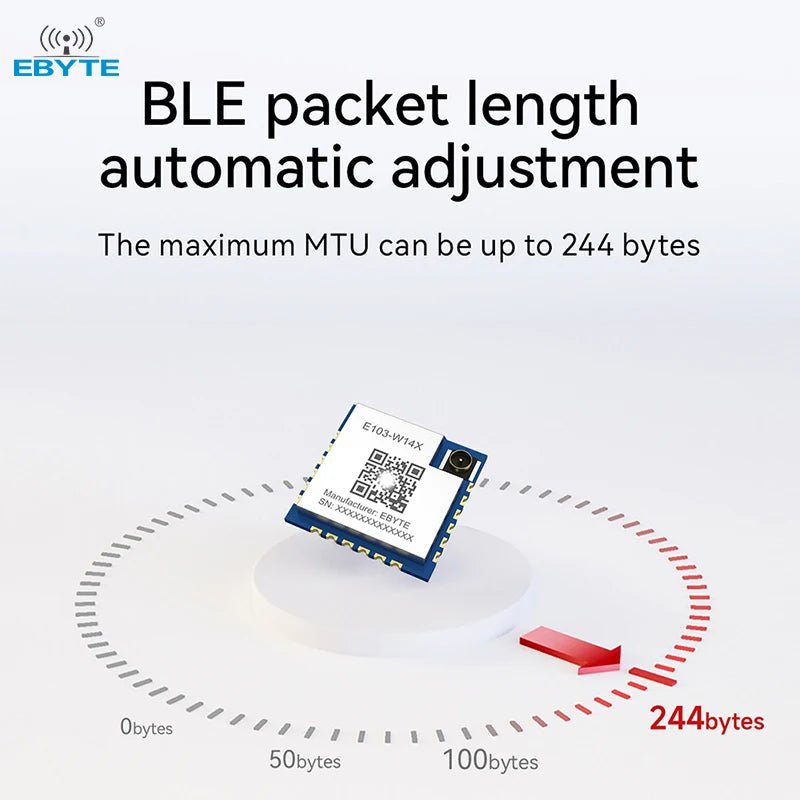

RF parameters | Unit | Model | Remark |
WiFi protocol | - | IEEE 802.11b/g/n | - |
BLE protocol | - | BLE5.2 | - |
Wi-Fi transmission rate | - | 802.11b:1Mbps、2Mbps、5.5Mbps、11Mbps 802.11g:6Mbps、9Mbps、12Mbps、18Mbps、24Mbps、36Mbps、48Mbps、54Mbps 802.11n:HT20 (MCS0~MCS7) |
- |
Antenna form | - | IPEX | Characteristic impedance is about 50 ohms |
reference distance | M | 500 | Antenna gain 5dBi, module and device communication |
frequency band | GHz | 2.4 (WiFi, BLE) | Supports global license-free ISM 2.4GHz frequency band |
RF parameters | unit | model | Remark | |
Working voltage | V | 2.7-3.6V | Exceeding 3.6V will permanently burn the module | |
Communication level | V | 3.3 | Using 5V TTL risks burning out | |
Power consumption | Transmit power | dBm | 18 | - |
Emission current | mA | 200 | - | |
receive current | mA | 33 | - | |
Sleep current Sleep1 | uA | 3 | In this mode, the clocks of the MCU and all digital peripherals are stopped, and the system only has a 32K clock; only some hardware modules are working at this time, and only GPIO interrupts and AON counter interrupts can wake up the system and return to normal voltage to continue running. | |
Sleep current Sleep2 | uA | 0.5 | In this mode, the system only has a 32K clock, and only some hardware modules are working at this time. Except for the AON module, other hardware modules have been powered off. | |
temperature | working temperature | ℃ | -40~+85 | Industrial grade |
storage temperature | -40~+95 | - |
Hardware parameters | Model | Remark |
Flash | 2MB | - |
RAM | 256 KB | - |
Main frequency | 120MHz | - |
Packaging method | patch | - |
size | 10*10mm | The error size is ±0.2mm |
weight | 0.4±0.1g | The error is ±0.1g |
