Ebyte EWM528-2G4NW20SX/27SX UART 2.4GHz 20dBm 27dBm Wireless Transparent Transmission LoRa MESH Networking Module Serial Port

$6.98

Стоимость доставки рассчитывается при оформлении.

EWM528 LoRa MESH Wireless Modules Industrial-grade 2.4GHz LoRa MESH networking modules with UART interface for decentralized IoT networks. Model-Specific Introductions EWM528-2G4NW20SX 20dBm output power LoRa MESH module with 2km range for... Read more

Availability: In Stock

Shipping: Free Air Shipping Over $89.99(China Post only)If the China post cannot deliver, other logistics need to pay extra postage delivery

Ship From: China EBYTE Manufacturer Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes

规格: EWM528-2G4NW20SX

  • EWM528-2G4NW20SX
  • EWM528-2G4NW27SX
  • EWM528-2G4NW20SX+TX2400-FPC-5015
  • EWM528-2G4NW20SX+TX2400-JKS-IPX20
  • EWM528-2G4NW27SX+TX2400-FPC-5015
  • EWM528-2G4NW27SX+TX2400-JKS-IPX20
Не будет отправлено до [19041994]
$6.98
Распродано
Артикул: EWM528-2G4NW20SXН/Д

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $89.99 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



EBYTE product technical manual and detailed parameters download: https://www.cdebyte.com/Product-Selection

EWM528 LoRa MESH Wireless Modules

Industrial-grade 2.4GHz LoRa MESH networking modules with UART interface for decentralized IoT networks.

Model-Specific Introductions

EWM528-2G4NW20SX

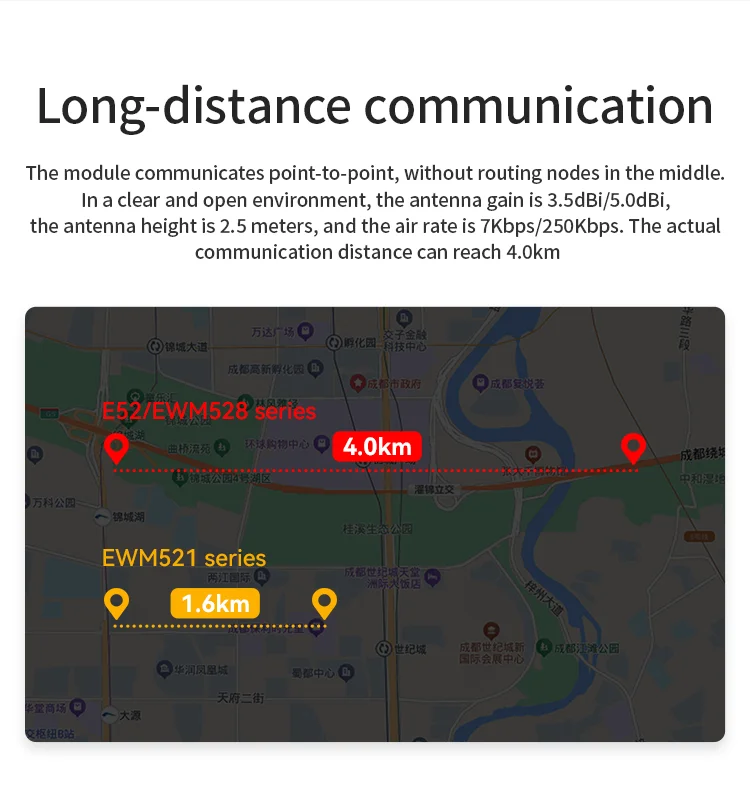

20dBm output power LoRa MESH module with 2km range for medium-distance industrial sensor networks.

EWM528-2G4NW27SX

27dBm high-power version enabling 4km line-of-sight communication in harsh environments.

Key Features

Network Architecture

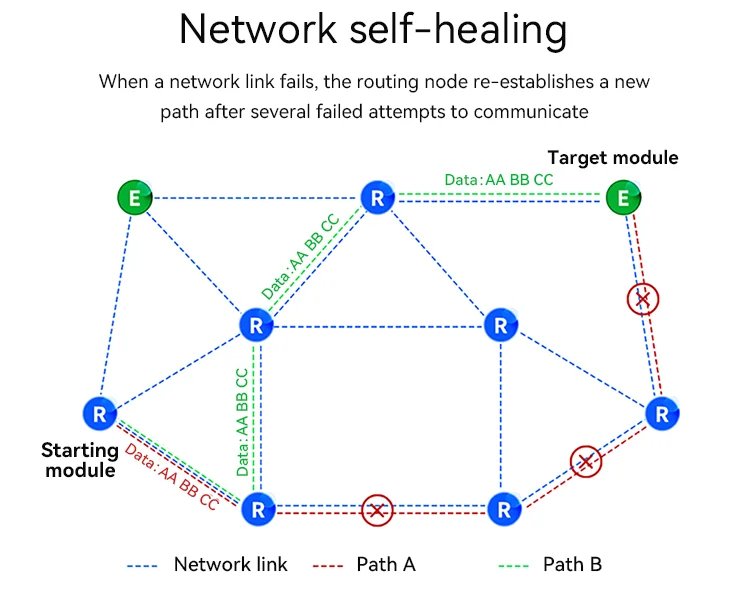

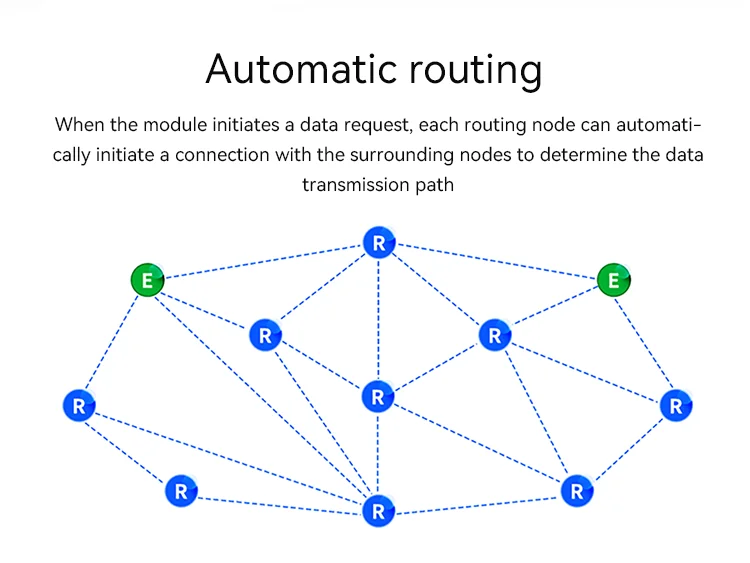

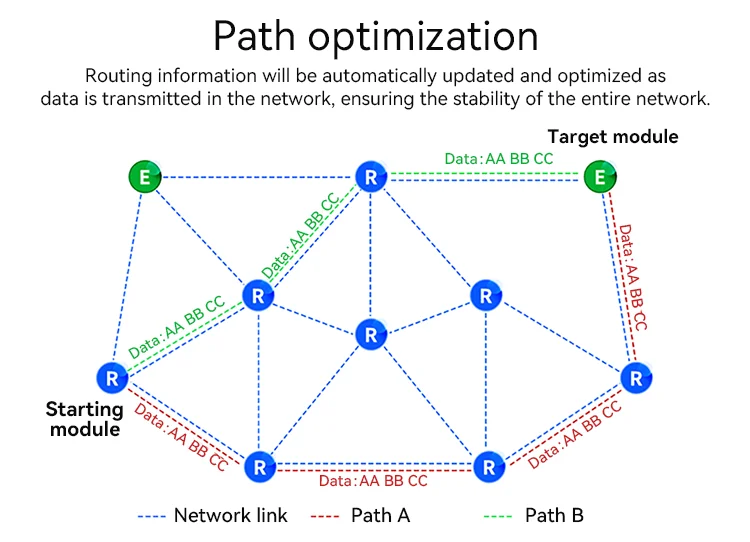

Decentralized MESH topology with self-healing and multi-hop routing capabilities

RF Performance

• 2400-2500MHz frequency range

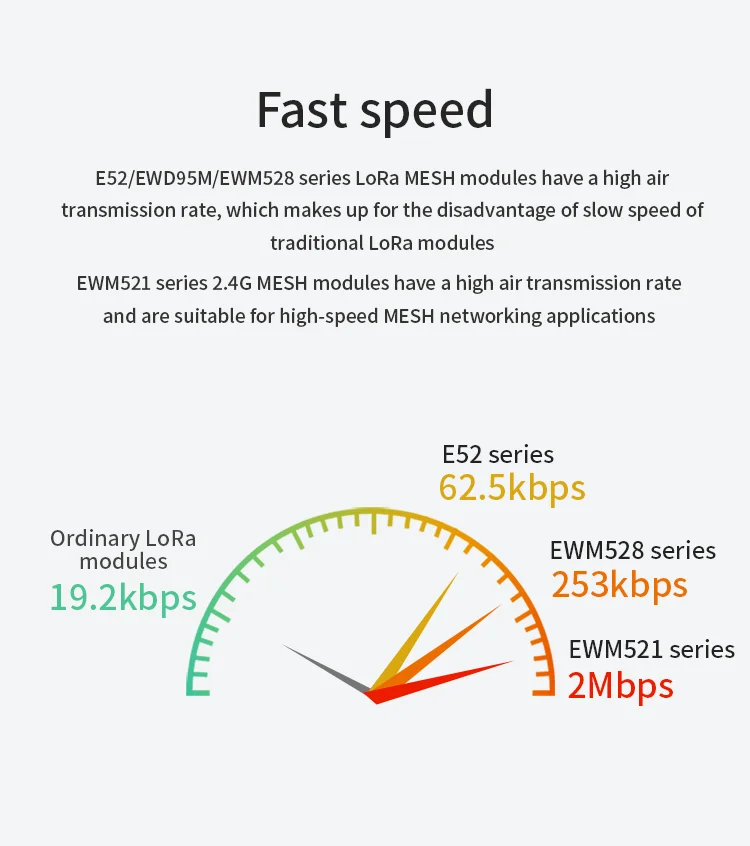

• Up to 253Kbps air data rate
• 27dBm max TX power (27SX model)

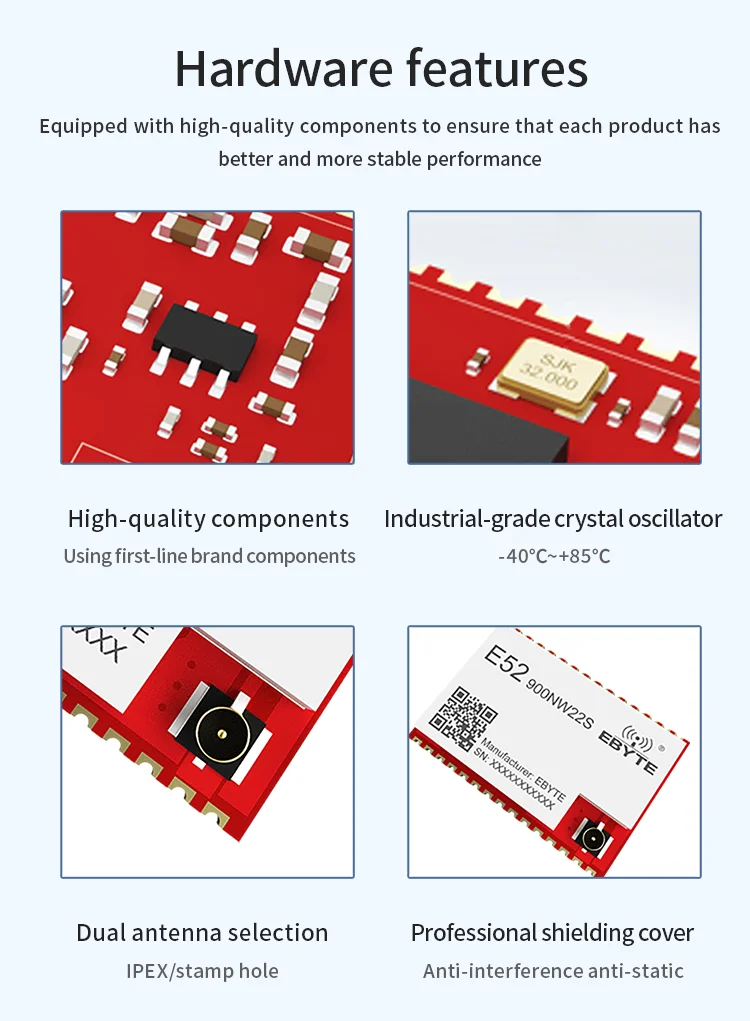

Industrial Design

• -40°C to +85°C operating range
• 3.3V TTL UART interface
• IPEX/Stamp hole antenna options

Protocol Support

AT command configuration with 30+ programmable parameters

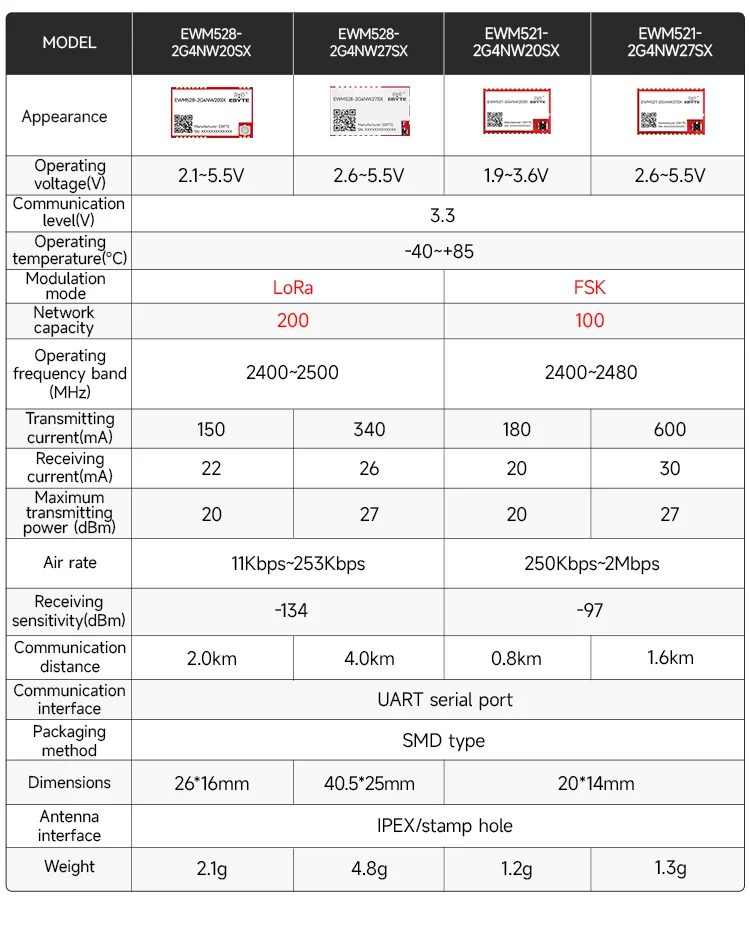

Technical Specifications

Electrical Parameters

• Operating voltage: 2.1-5.5V DC
• TX current: 150mA@20dBm / 340mA@27dBm
• RX current: ≤26mA

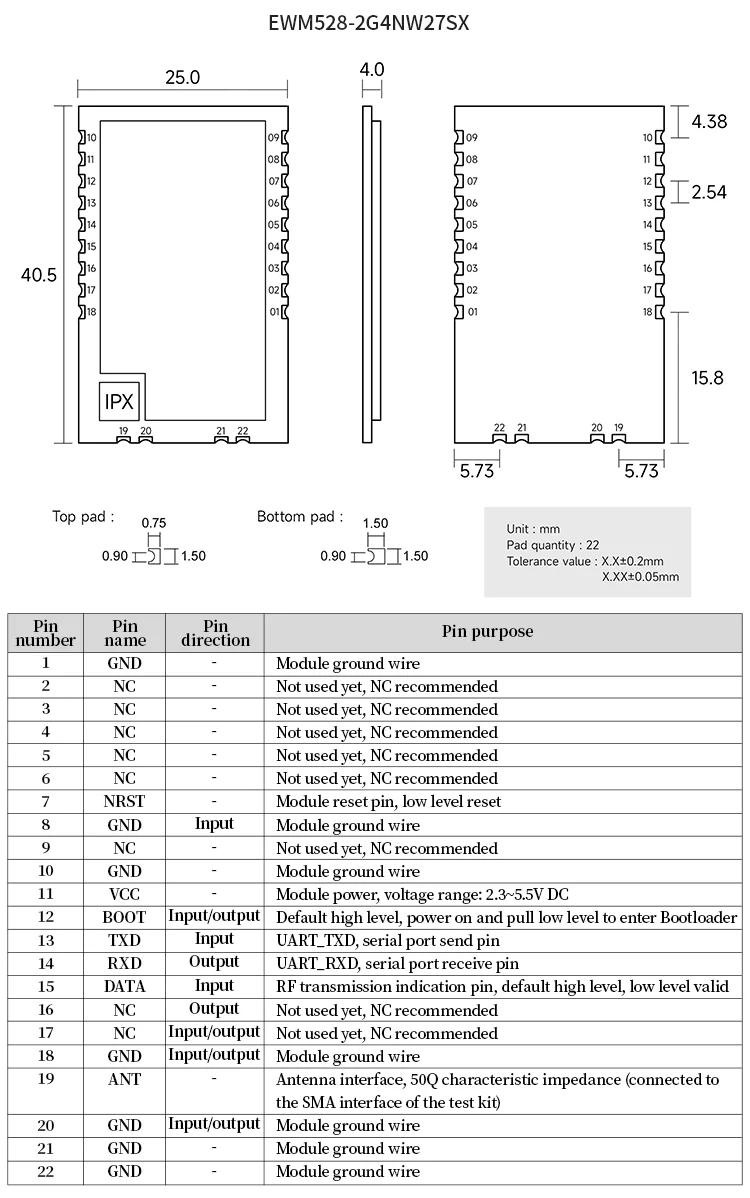

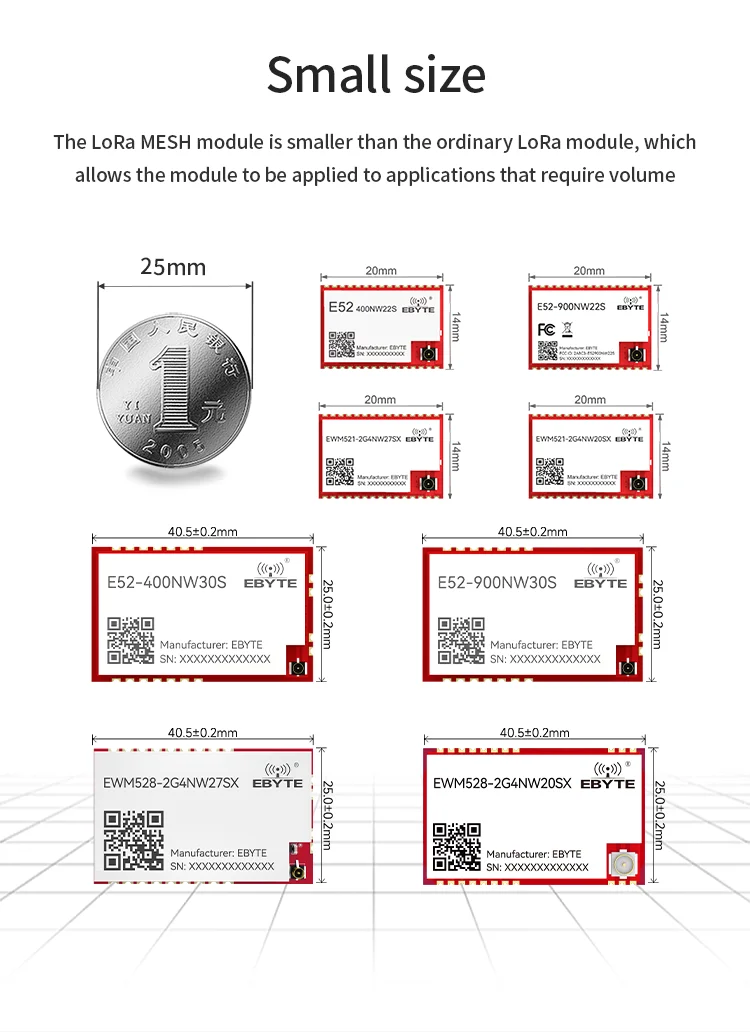

Mechanical Specifications

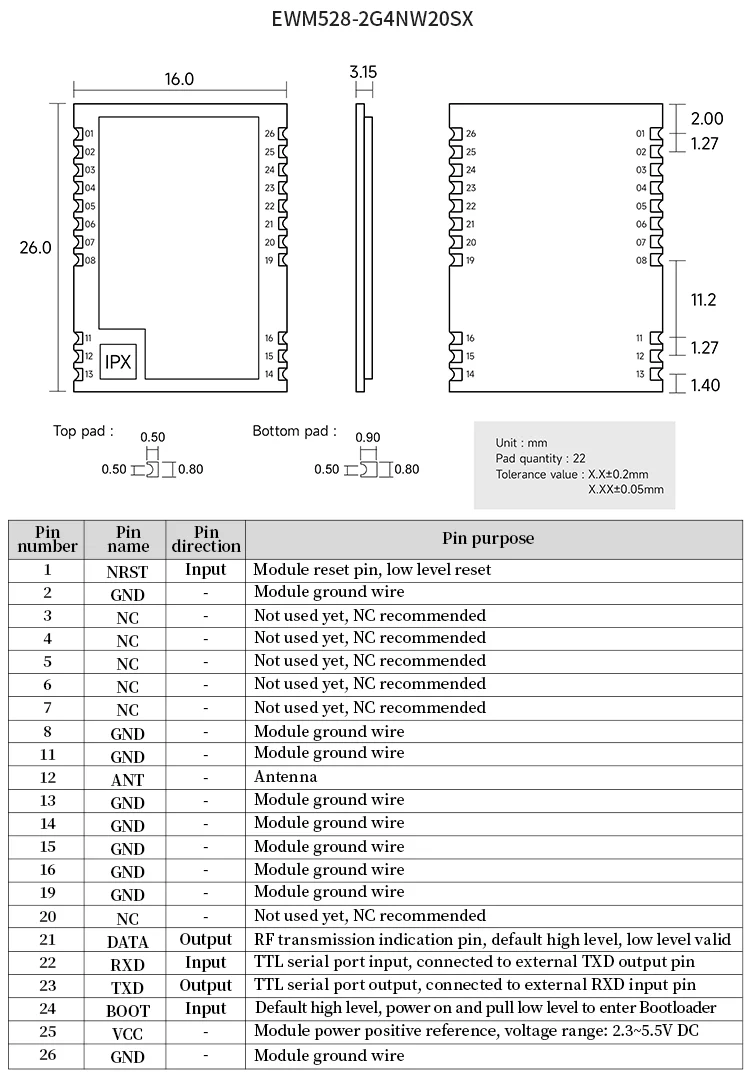

• EWM528-2G4NW20SX: 26×16mm
• EWM528-2G4NW27SX: 40.5×25mm

Communication Interfaces

• UART baud rate: 1200-2000000bps
• Packet size: 200 bytes max
• Configurable via AT commands

Application Scenarios

Industrial Automation

Wireless sensor networks for factory equipment monitoring

Smart Infrastructure

• Building automation systems
• Smart streetlight control networks
• Parking occupancy detection

Agricultural IoT

Soil monitoring networks across large farms

Energy Management

Distributed solar panel monitoring systems

Emergency Systems

Fire alarm networks with multi-path redundancy

Certifications & Compliance

FCC/CE/RoHS compliant (refer to official certification documents)


规格

EWM528-2G4NW20SX, EWM528-2G4NW27SX, EWM528-2G4NW20SX+TX2400-FPC-5015, EWM528-2G4NW20SX+TX2400-JKS-IPX20, EWM528-2G4NW27SX+TX2400-FPC-5015, EWM528-2G4NW27SX+TX2400-JKS-IPX20
