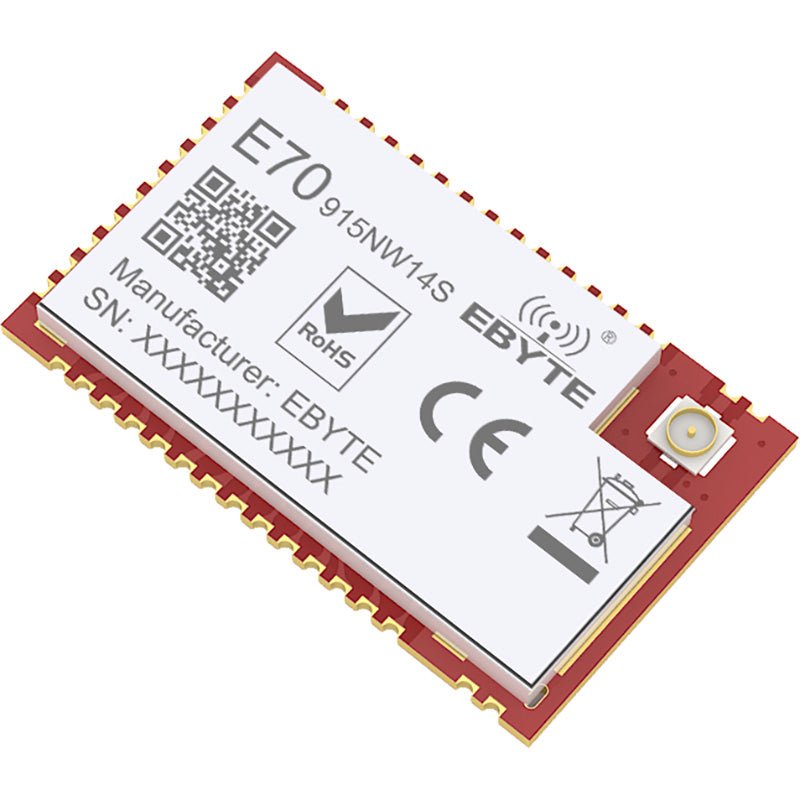

[Introduction]:E70-915NW14S is the star network module, operating at 915MHz, based on originally imported TI CC1310 and 15.4-Stack protocol, with coordinator and terminal as a whole. There are long range, standard range and high-speed transmission modes.Maximum 200 nodes can send data to one coordinator.
Brand Name:EBYTE
Origin:Mainland China
Condition:New
Type:Drive IC
Model Number:E70-915NW14S
Supply Voltage:2.2 - 3.8 V
is_customized:Yes
Application:Computer
Package:SMD
Frequency:915MHz
Power:14dBm
Distance:2.5km

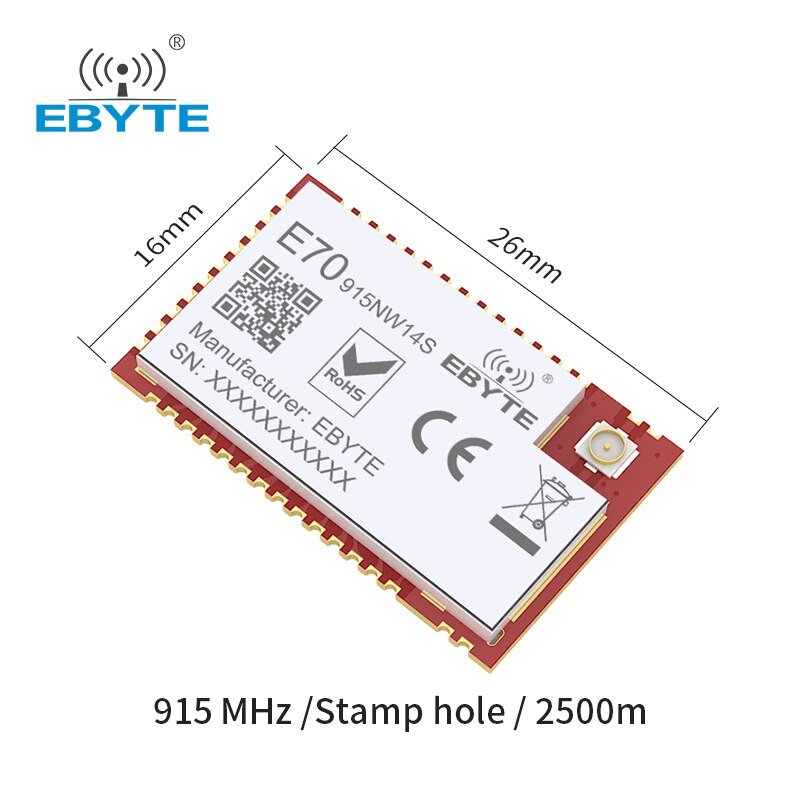

Size:16*26mm
Weight:1.65±0.1g
Type:Star Network Module
| RF Parameter | Value |
Remark |
| Working frequency |
915 MHz |
 -  |
| Transmitting power | 14 dBm |
 -  |
| Receiving sensitivity | -110 dBm |
 -  |
| Reference distance(PCB/IPX) | 2500m |
 -  |
| Hardware Parameter | Value |
Remark |
| Size |
16 * 26 mm |
 -  |
| Net weight |
1.65±0.1g |
 -  |

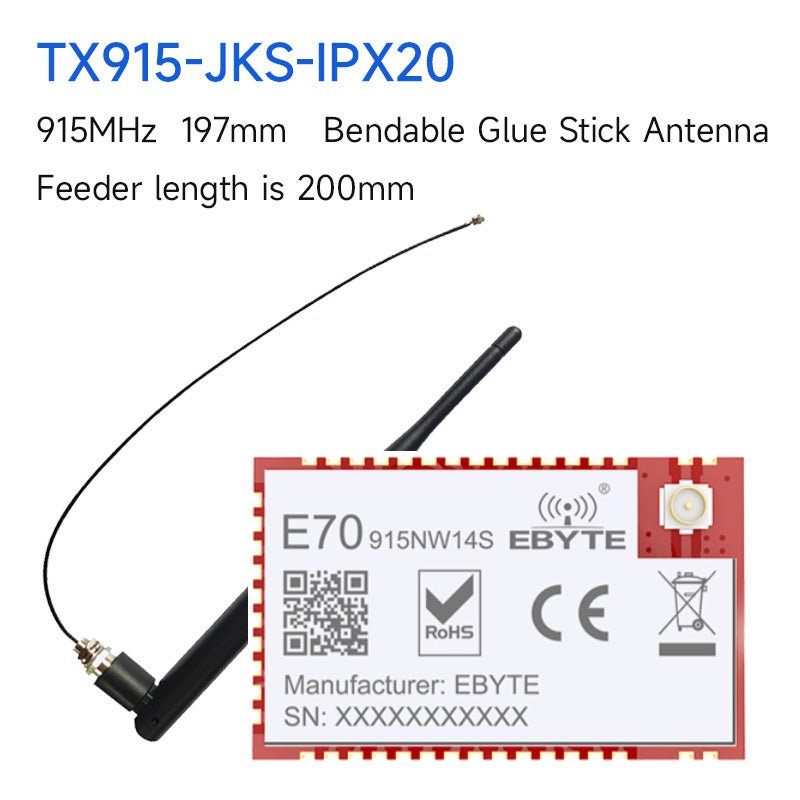

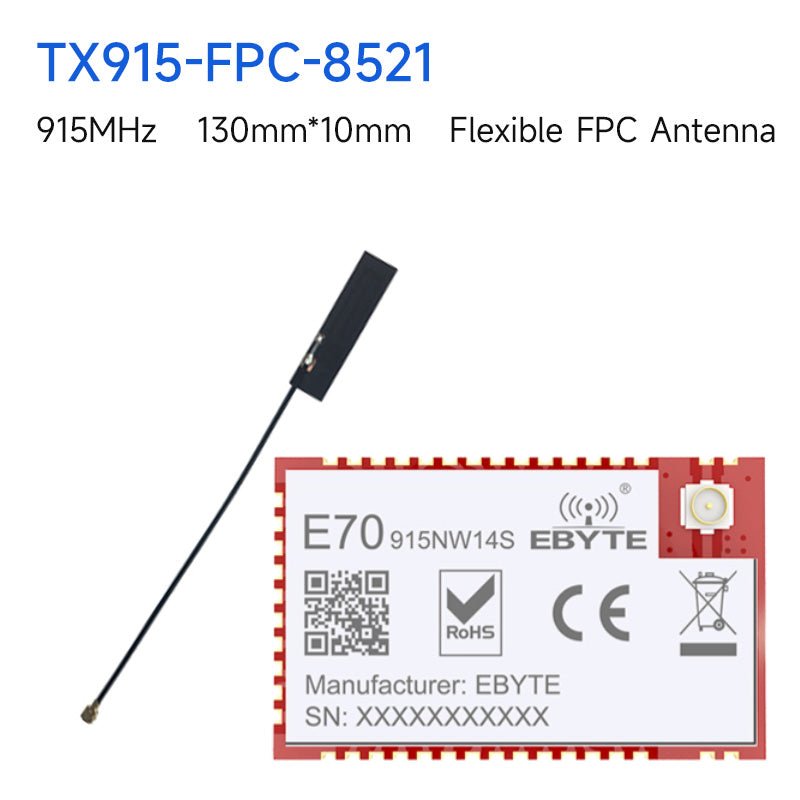

| Antenna type | IPEX/Stamp hole |
 -  |
| Package | SMD |
 -  |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Transmit current |
- | 27 | - | mA | - |
| Receiving current | 7 | 8 | 10 | mA | - |
| Sleep current | 0.5 | 1 | 2 | µA | - |
| Supply voltage | 2.2 | 3.3 | 3.8 | V DC |
- |
| Communication level | 2.5 | 3.3 | 3.6 | V DC | - |
| Transmit power |
13 | 14 |
15 | dBm | - |
| Receiving sensitivity |
-109 | -110 |
-111 | dBm | - |
| Coverage |
1200 | 1500 |
1800 | m | - |
