EBYTE E810-R21 Industrial 2way Cache Type RS485 to 1way RS485 Hub DC 9~40V Optical Isolation Multi to one Hub ESD Protection

$15.25 $13.99

Shipping calculated at checkout.

E810-R21 Industrial-grade 2 to 1-way RS-485 hub Photoelectric isolation technology Lightning protection signal amplifier [Data interface]:RS485 [Working voltage]:DC 9~40V [Protection level]:Industrial EMC level 3 [Product size]:100*54*32mm [Introduction]:E810-R21 is a 2-way RS-485... Read more

0.01$ Sample: TI Chip Samples, Espressif Chip Samples

Availability: In Stock

Shipping: Free Air Shipping Over $79.99

Ship From: China EBYTE Manufacturer Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes
Out of stock

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $79.99 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



EBYTE product technical manual and detailed parameters download: https://www.cdebyte.com/Product-Selection

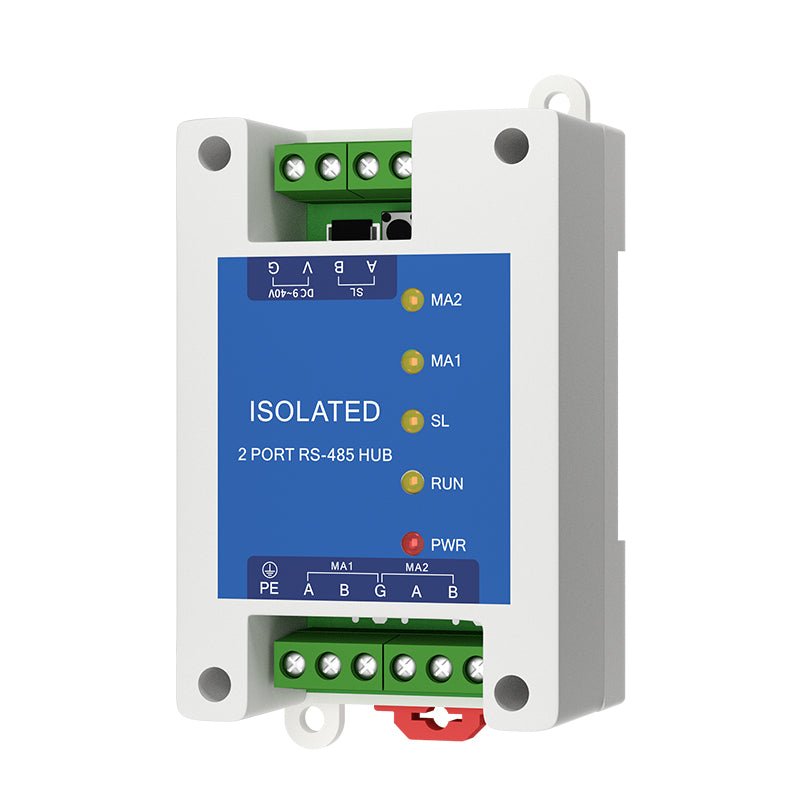

E810-R21 Industrial-grade 2 to 1-way RS-485 hub Photoelectric isolation technology Lightning protection signal amplifier

[Data interface]:RS485

[Working voltage]:DC 9~40V

[Protection level]:Industrial EMC level 3

[Product size]:100*54*32mm

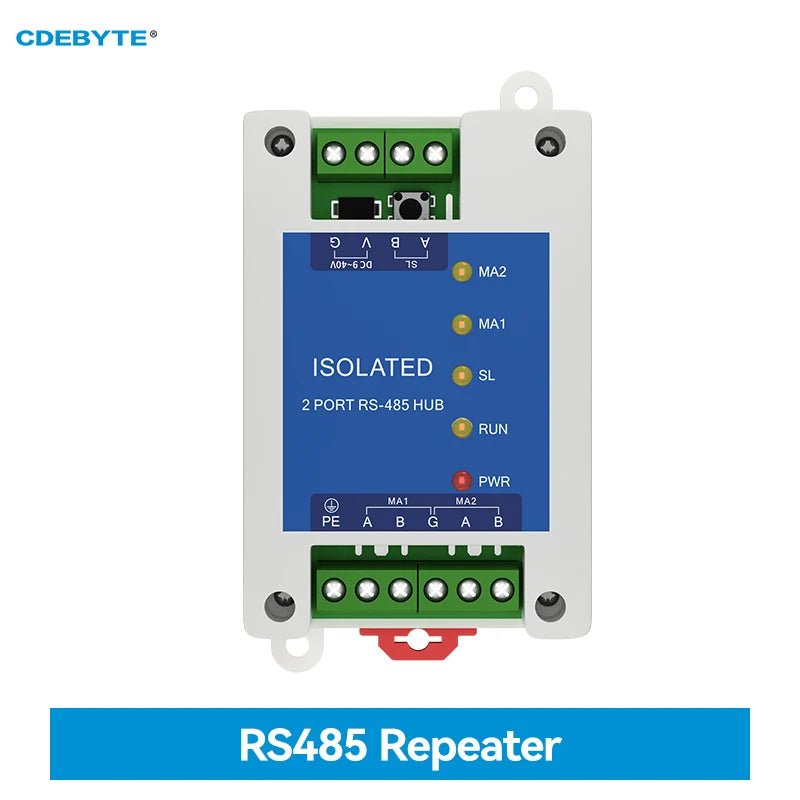

[Introduction]:E810-R21 is a 2-way RS-485 to 1-way RS-485 buffered isolation repeater launched by Ebyte. It uses photoelectric isolation technology to protect the master and slave stack devices from interference. The circuit is designed according to the EMC level 3 standard, which can effectively isolate the damage caused by lightning and static electricity to the equipment. No configuration is required, and transparent data transmission is carried out between the master and slave interfaces.

Parameter name Parameter value Description
Common parameters Data interface RS-485 interface
baud rate 1200~115200bps
data bits 8 bits
Stop bit 1/2 digit
Check digit None/Odd/Even
storage space Single channel host 3k Byte

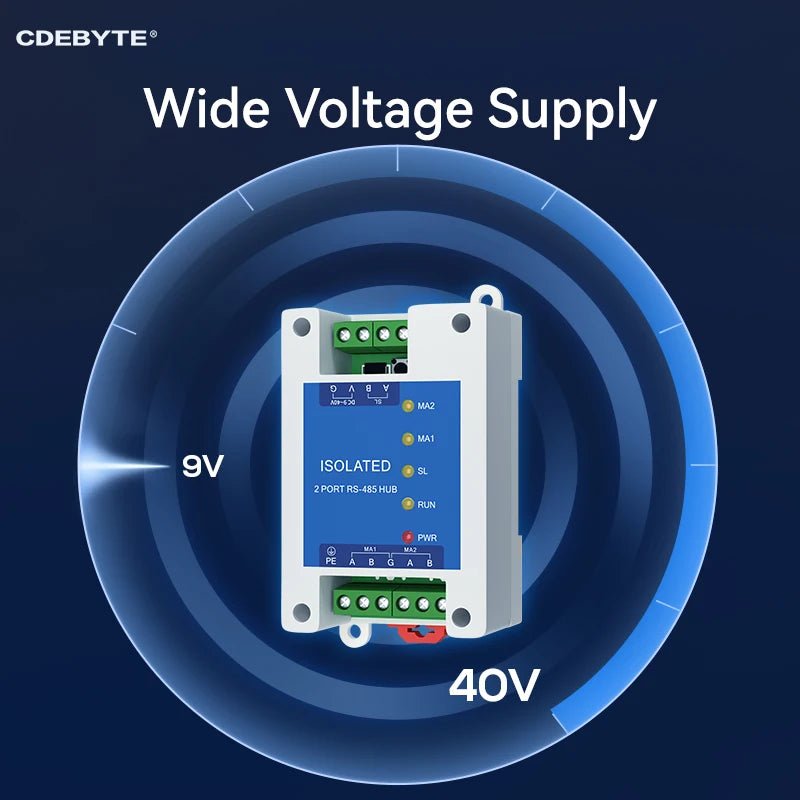

Working voltage DC 9~40V
Protection level Industrial EMC Level 3
Isolation voltage 1.5KV

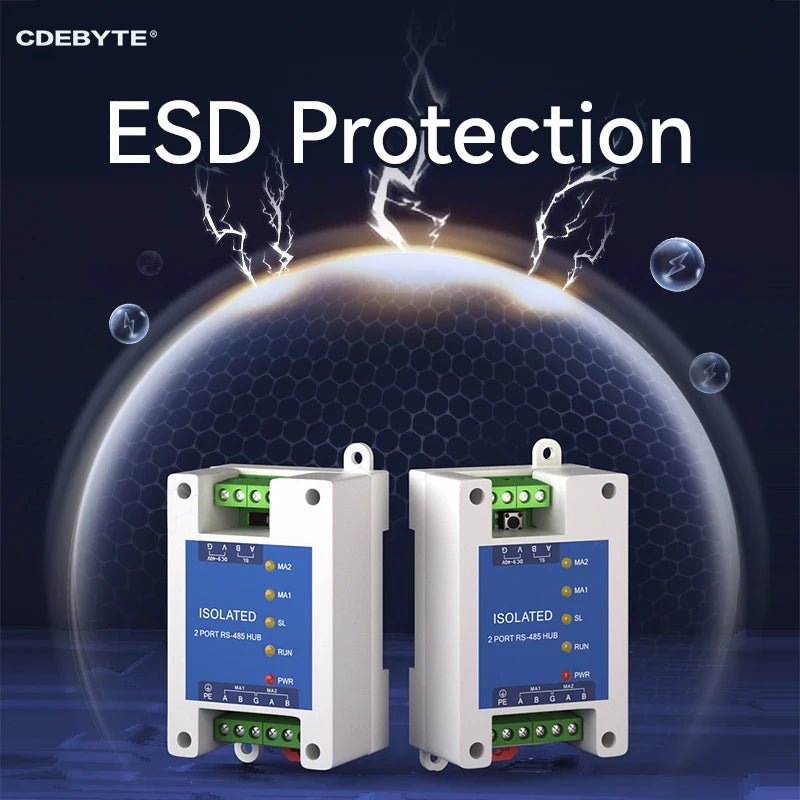

Electrostatic protection level Contact 4KV, air 8KV
pulse wave surge Differential mode 1KV, common mode 2KV
Working temperature and humidity -40~85℃, 5%~95% (no condensation)
Storage temperature and humidity -40~105℃, 5%~95% (no condensation)
Ground terminal support
difference parameter Expansion channels 2-way RS-485 host

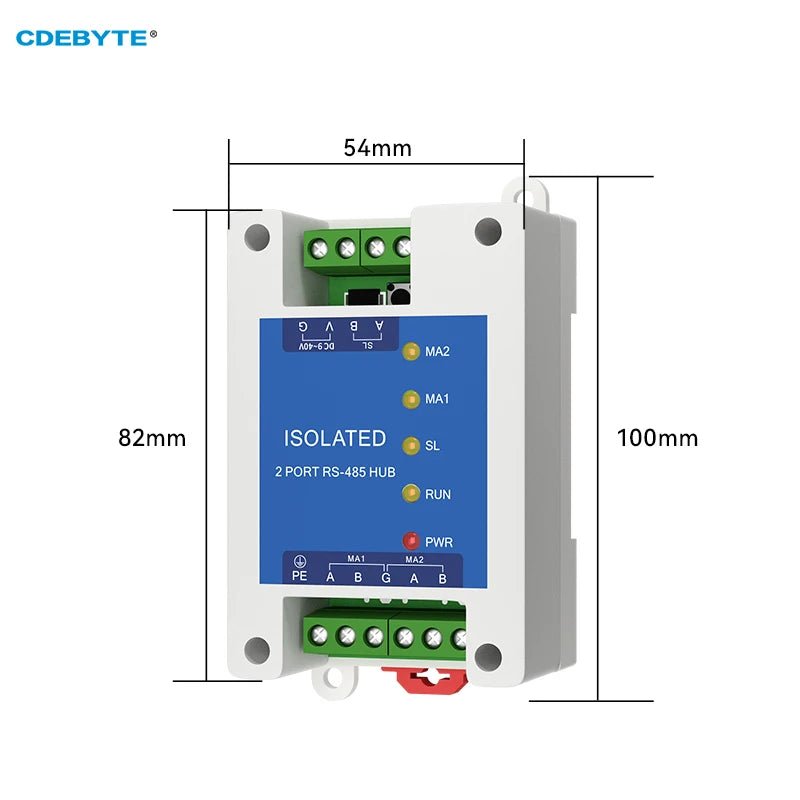

Product size 100×54×32mm
Product weight 70±5g
Interface standards 5.08mm copper pin plug terminal

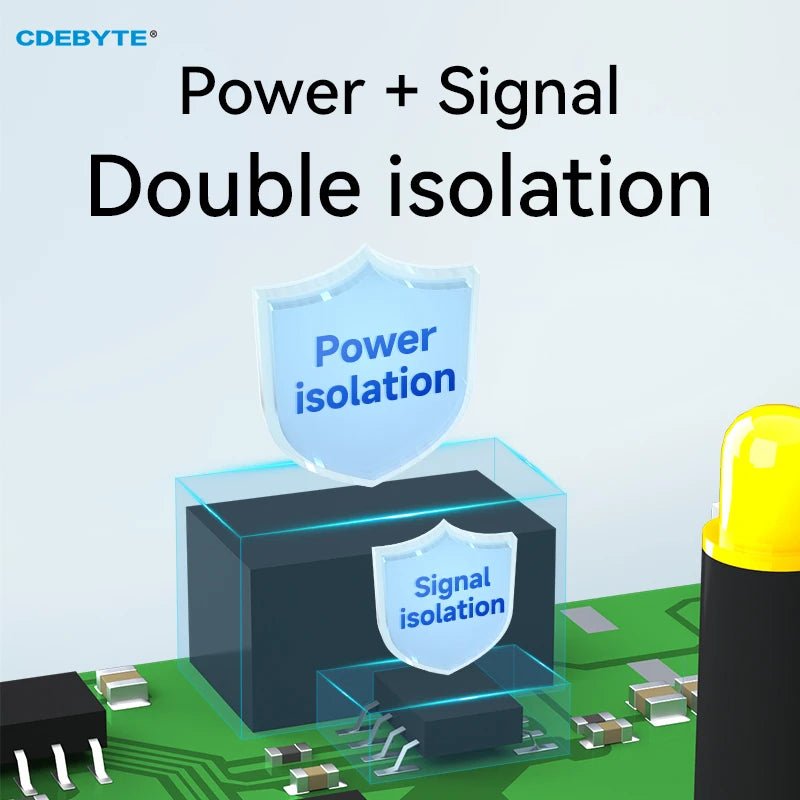

    Industrial Grade RS485 Repeater8 reasons to choose a repeaterCached RS485 HubSupports multi-host gatewayDC 9~40V Wide Voltage SupplyPower + Signal Double isolationESD protectionThree ProofingsGuide rail and positioning hole installationHigh-speed bidirectional transmissionProduct SizeCommunication Connection DiagramApplication Scenarios
