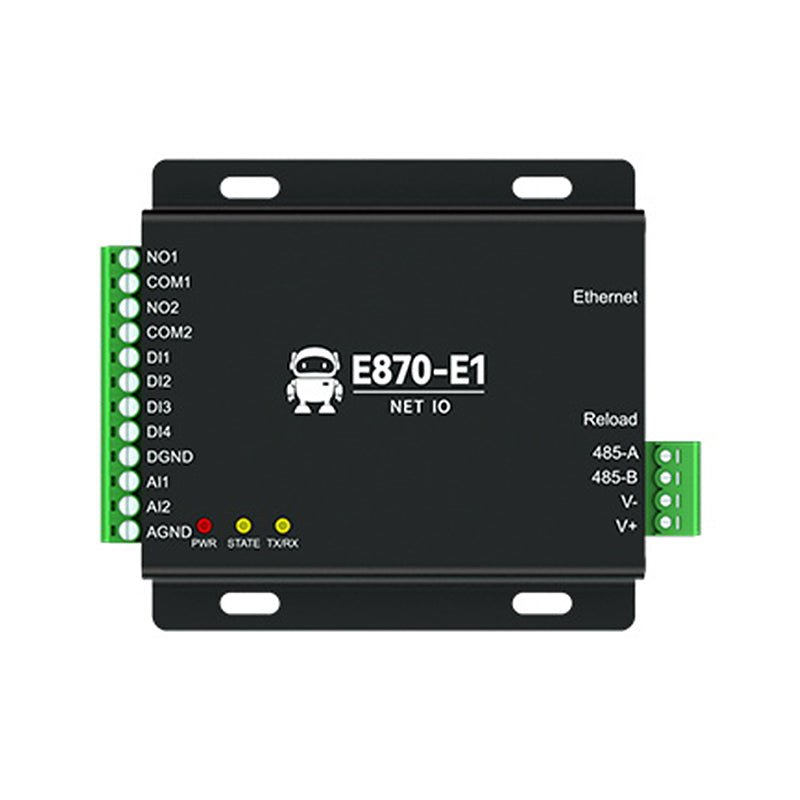

Edge Acquisition Gateway IO Controller Ethernet RS485 4DI 2DO 2AI CDEBYTE E870-E1 TCP/UDP/MQTT Protocol Modbus DC 8~28V

$26.59

Shipping calculated at checkout.

E870-E1 RS485 to Ethernet converter IoT Cloud IO/DTU RTU Gsm Gateway modbus Serial Service Server mqtt [Transmission method]:Ethernet [Working voltage]: DC8~28V [Communication interface]:RS485 [Product size]:80*85mm [Introduction]:E870-E1 is an Ethernet cloud I0 gateway... Read more

Availability: In Stock

Shipping: Free Air Shipping Over $50

Ship From: China EBYTE Official Factory

Order today. Get it and , hoursminutes
Out of stock

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $50 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.




E870-E1 RS485 to Ethernet converter IoT Cloud IO/DTU RTU Gsm Gateway modbus Serial Service Server mqtt

[Transmission method]:Ethernet

[Working voltage]: DC8~28V

[Communication interface]:RS485

[Product size]:80*85mm

[Introduction]:E870-E1 is an Ethernet cloud I0 gateway developed based on the communication protocol "Ebyte Cloud Device Communication Protocol" developed by our company. It can send commands to the device through the server to achieve control or collection functions, and open 4-way switch value collection on the device. , 2-way analog (0-20/4-20mA) acquisition, 2-way A-type relay output, support multiple protocols (TCP, UDP, MQTT) access to the server, support heartbeat package, registration package settings; at the same time the product supports Multiple configuration methods, support web platform; support acquisition and control edge RTU nodes, can also be used as RTU equipment to analyze Modbus command acquisition and control equipment IO; adopt industrial design standards to ensure high reliability of equipment.

category name parameter
power supply Operating Voltage DC 8~28V
Power indicator Red LED indication
serial port Communication Interface RS485
baud rate 9600bps (default)
Protocol 《Ebyte Cloud Device Communication Protocol》
DI input Number of DI channels 4 way
input type default stem node
Acquisition frequency 1 kHz
AI input A way number 2 way
Acquisition Features single-ended input
input type 4-20mA
AI resolution 5%
Acquisition frequency 10Hz
DO output Number of DO channels 2 way
DO output type Form A relay
DO output mode Level output, pulse output
Relay contact capacity 30V/7A
other product weight 140±5g
Working temperature and humidity -40 ~ +85℃, 5%~95%RH (no condensation)
installation method rail installation

Industrial-grade edge acquisition gateway Cloud IO controller

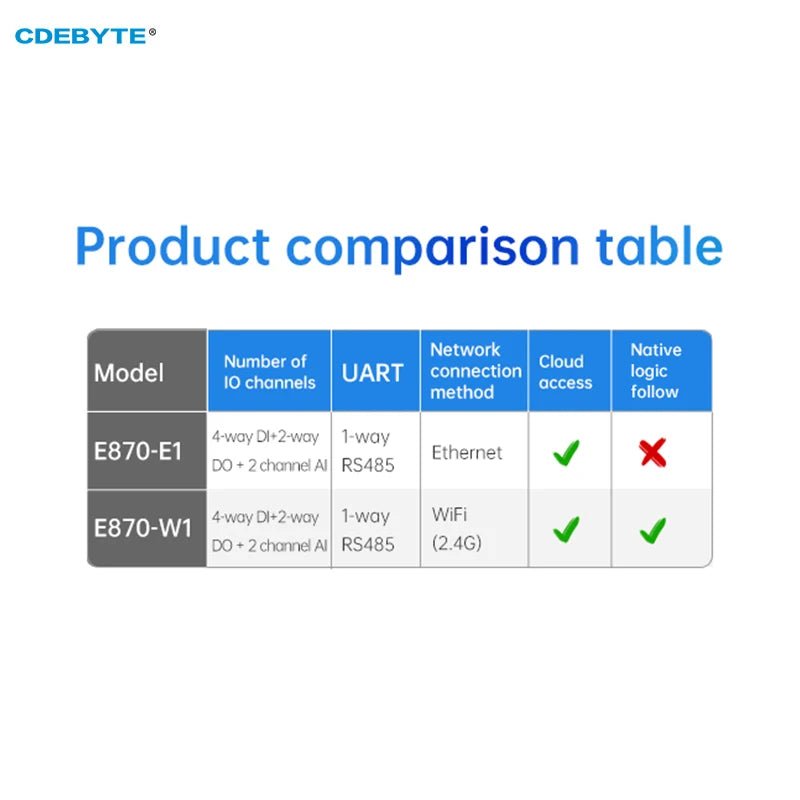

   Product comparison table

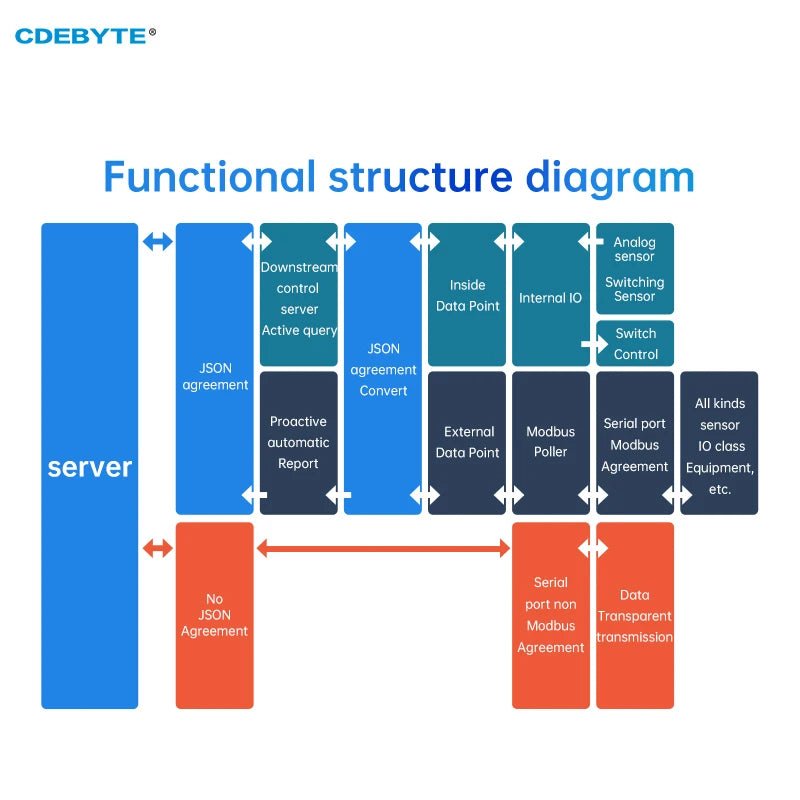

   Functional structure diagram

   Can directly connect to customer-built servers

   Twelve core functions

   Edge Acquisition/Edge Computing

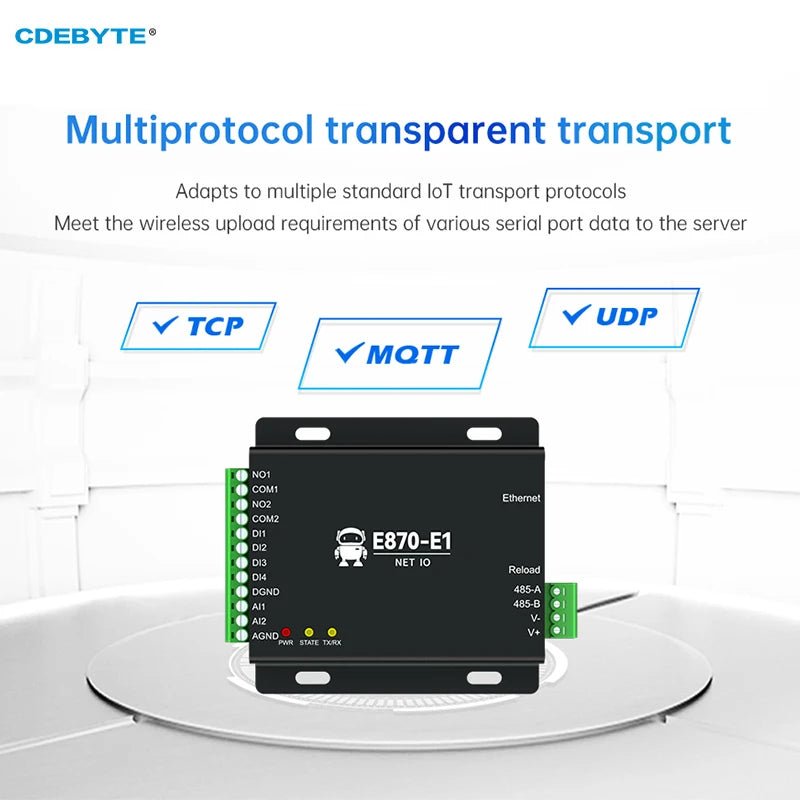

   Multiprotocol transparent transport

   Logic follows Local logic

   Power connector

   Industrial grade standards

   Analog Input (AI)

   Output wiring diagram
