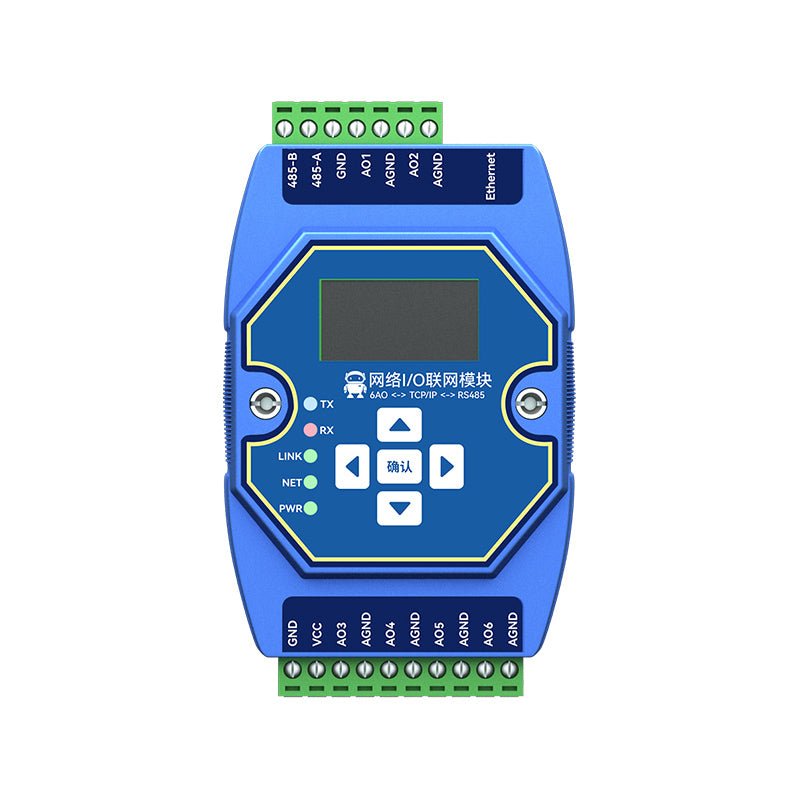

Ebyte OEM/ODM ME31-XXXA0006 6AO Modbus gateway support network module RJ45 RS485 ethernet io module

$35.84

Shipping calculated at checkout.

[Introduction]:ME31-XXXA0006 is a network I/O networking module with 6 analog outputs (0-20mA/4-20mA), supports Modbus TCP protocol or Modbus RTU protocol for acquisition control, and the device can also be used as... Read more

Availability: In Stock

Shipping: Free Air Shipping Over $50

Ship From: China EBYTE Official Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes
Out of stock
Categories: DTU/RTUTags: RJ45, RS485

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $50 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



EBYTE product technical manual and detailed parameters download: https://www.cdebyte.com/Product-Selection

[Introduction]:ME31-XXXA0006 is a network I/O networking module with 6 analog outputs (0-20mA/4-20mA), supports Modbus TCP protocol or Modbus RTU protocol for acquisition control, and the device can also be used as a simple Modbus gateway (automatically send commands with non-local Modbus addresses through the serial port/network port).

[Communication interface]:RJ45, RS485

[Working voltage]:DC 8 ~ 28V

[Product weight]:135±5 g

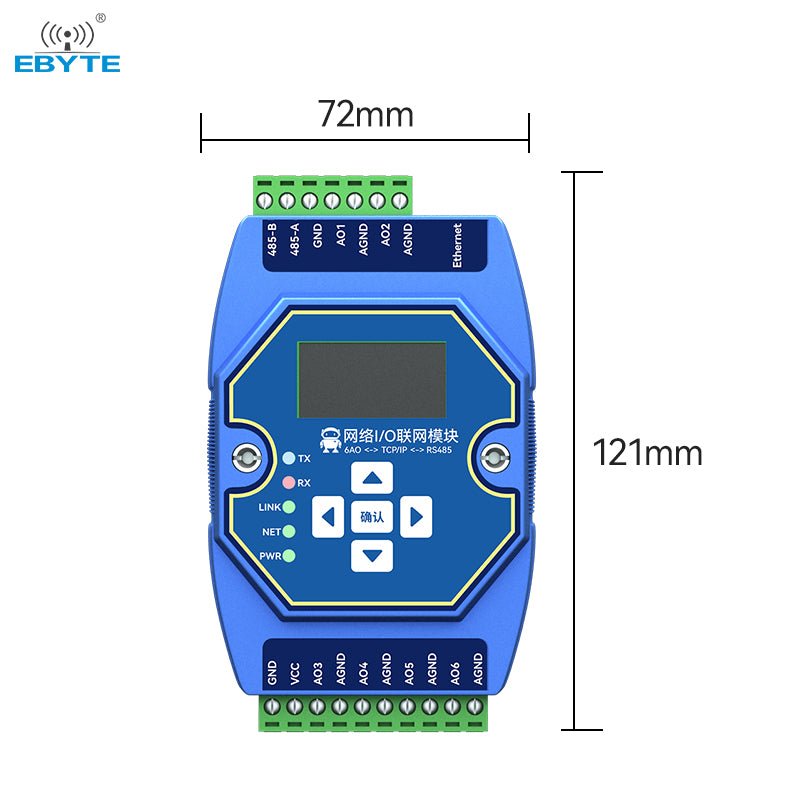

[Product size]:121*72*34mm

[Serial port baud rate]:9600bps (customizable)



Category  Name  Parameters
power supply Operating Voltage DC8~28V
Power indicator blue LED indication
serial port Communication Interface RJ45, RS485
baud rate 9600bps (customizable)
Protocol Standard Modbus TCP, Modbus RTU protocols
MODBUS device address Can be modified by Modbus command and host computer
AO output Number of AO channels 6 way

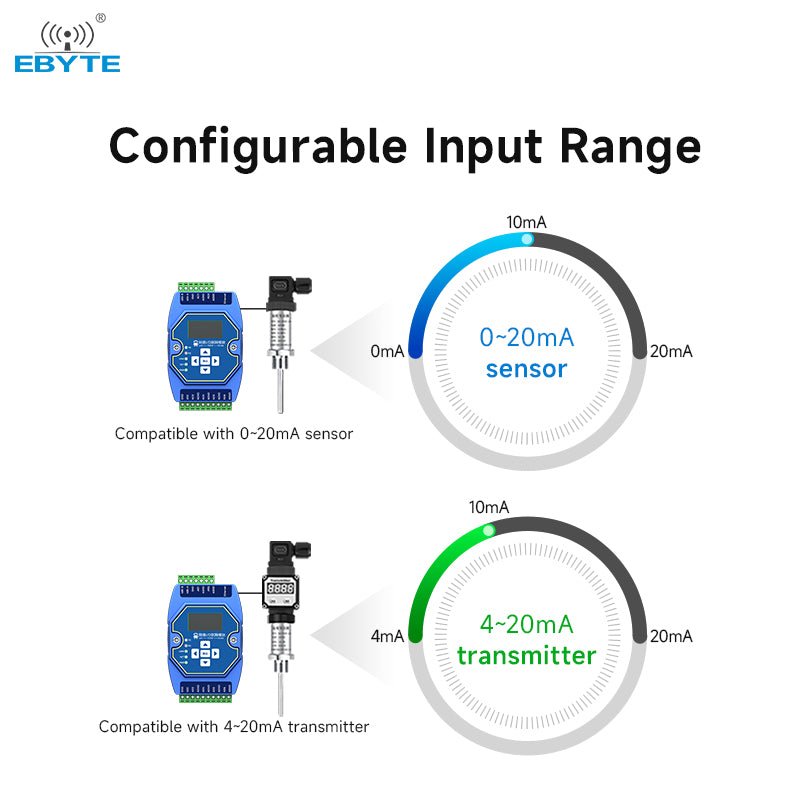

AO output type Current output, 2-wire connection
AO output range 0~20mA~20mA
AO resolution 16 bit
Output accuracy 3‰

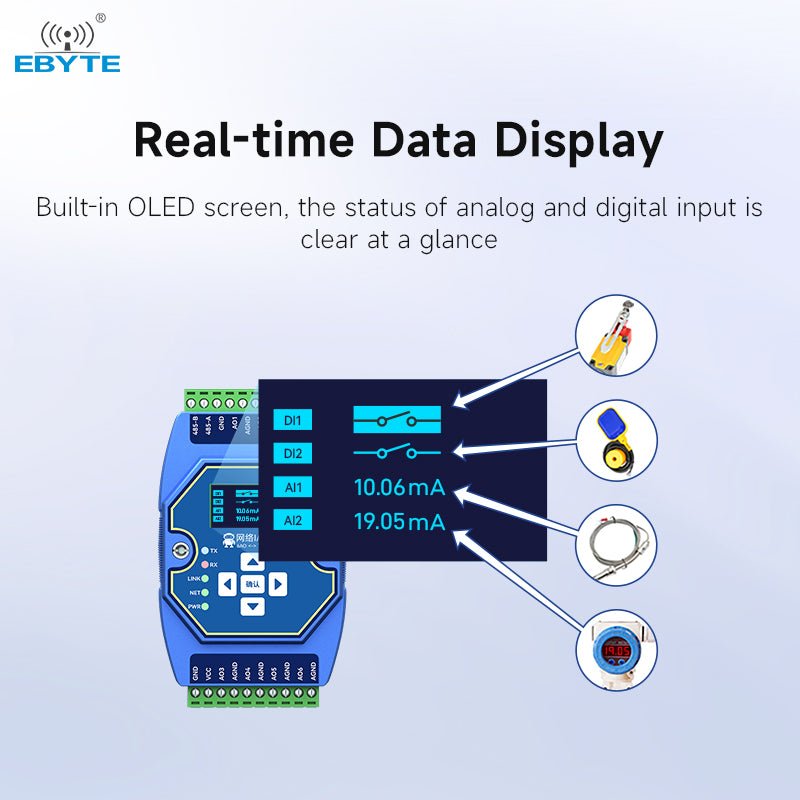

output indication OLED screen display
other Product Size 121mm * 72mm * 34mm (L*W*H)
product weight 135±5g
Working temperature and humidity -40 ~ +85℃, 5% ~ 95%RH (no condensation)
storage temperature and humidity -40 ~ E17+105℃, 5% ~ 95%RH (no condensation)
Installation method   rail installation
Category  Name  Parameters
Ethernet parameters Operating mode TCP server (up to 4-way client access)
Local IP 192.168.3.7
local port 502
subnet mask 255.255.255.0
gateway address 192.168.3.1
DHCP closure
Native MAC Determined by the chip (fixed)
target IP 192.168.3.3
target port 502
DNS server 114.114.114.114
active upload closure
Serial parameters baud rate 9600bps (8 types)
Check method None (default), Odd, Even
data bit 8
stop bit 1
MODBUS parameters Modbus master-slave Slave
address 1
