Ebyte E90-DTU(433L30)E-V8 Wireless gateway LoRa communication technology Ethernet protocol wireless data transmission gateway

$41.75

Shipping calculated at checkout.

E90-DTU(433L30)E-V8 Industrial grade 433M wireless data transmission radio LoRa spread spectrum SX1278 module RS485/232 serial port. [Interface type]:Ethernet [Working frequency]:410-441MHz [Transmit power]:30dBm [Communication distance]:8km [Product size]:84*82*25mm [Product weight]:130±5g [Introduction]:E90-DTU(433L30)E is a... Read more

Availability: In Stock

Shipping: Free Air Shipping Over $50

Ship From: China EBYTE Official Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes
Out of stock

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $50 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



EBYTE product technical manual and detailed parameters download: https://www.cdebyte.com/Product-Selection

E90-DTU(433L30)E-V8 Industrial grade 433M wireless data transmission radio LoRa spread spectrum SX1278 module RS485/232 serial port.

[Interface type]:Ethernet

[Working frequency]:410-441MHz

[Transmit power]:30dBm

[Communication distance]:8km

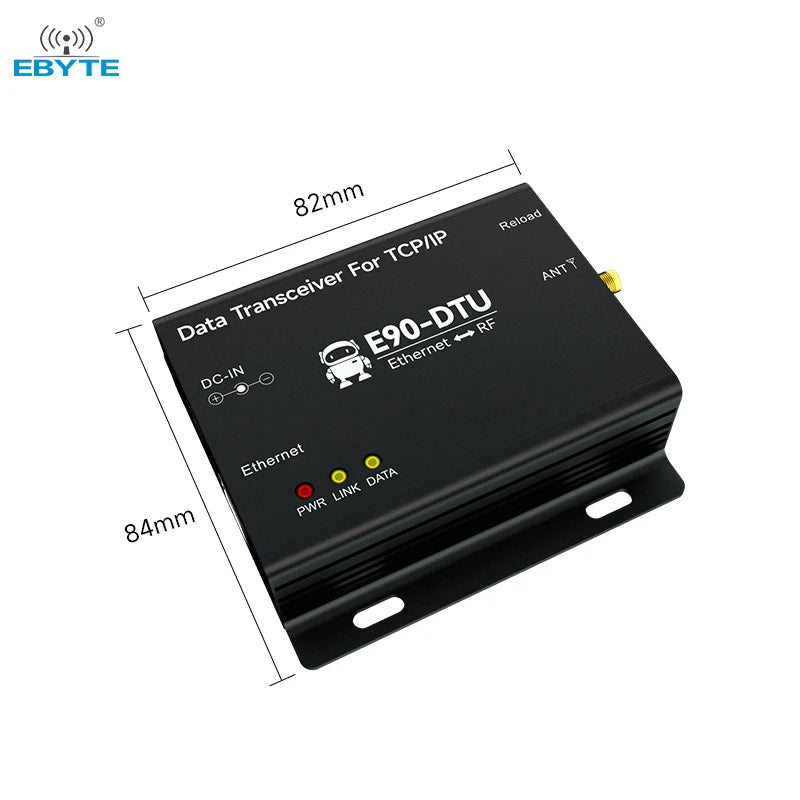

[Product size]:84*82*25mm

[Product weight]:130±5g

[Introduction]:E90-DTU(433L30)E is a wireless gateway (Ethernet interface data transmission radio) that supports 10M/100M rate and is developed by Chengdu Ebyte based on LoRa communication technology and Ethernet protocol. Supports 2-way Socket, provides six working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTP Client, MQTT Client, and supports six-way client connections in TCP server mode.



Serial  No.  Item  Specifications
1 voltage DC8~28V, 12V or 24V power supply recommended
2 Network port specifications Standard RJ45, supports 10/100Mbps
3 Network protocol IP, TCP/UDP, ARP, ICMP, IPv4, MQTT, HTTP
4 Socket number 2-way full function
5 Socket mode TCP Server, TCP Client, UDP Server, UDP Client, HTTP Client, MQTT Client
6 TCP Server connection Supports up to 5 TCP connections
7 IP acquisition method Static IP, DHCP
8 DNS support
9 domain name server Customizable, default 114.114.114.114
10 User configuration Web page configuration, host computer, AT command
11 Antenna interface SMA (external thread internal hole)
12 Size 84mm×82mm×25mm
13 Average weight 130±5g
14 Operating temperature -40 ~ +85℃, industrial grade
15 Storage temperature -40~+125℃, industrial grade
16 Working humidity 10% ~ 90%, relative humidity, no condensation
Main parameters  Parameters  Remarks
Working frequency band (MHz) 410-441 Channel spacing: 1M Default 23
Transmit current power consumption (mA) 400mA @ 12V Instantaneous power consumption

250mA @ 24V
Receive current power consumption (mA) 20mA @ 12V

12mA @ 24V
Maximum transmit power (dBm) 30 High (30dBm), Medium (27dBm), Low (24dBm), Very Low (21dBm)

The other transmit powers except "High" are reference values, the actual values may be different, and reducing the transmit power will not reduce the power consumption of the device. It is recommended to use the maximum power.
Over-the-air rate (bps) 2.4~19.2k The default air rate is 2.4kbps,

User configurable (2.4, 4.8, 9.6, 19.2kbps)
reference distance 8000m In a clear and open environment, the antenna gain is 5dBi, the antenna height is 2.5 meters, and the air rate is 2.4kbps.
Packet length 58 Btye Maximum subpackage length

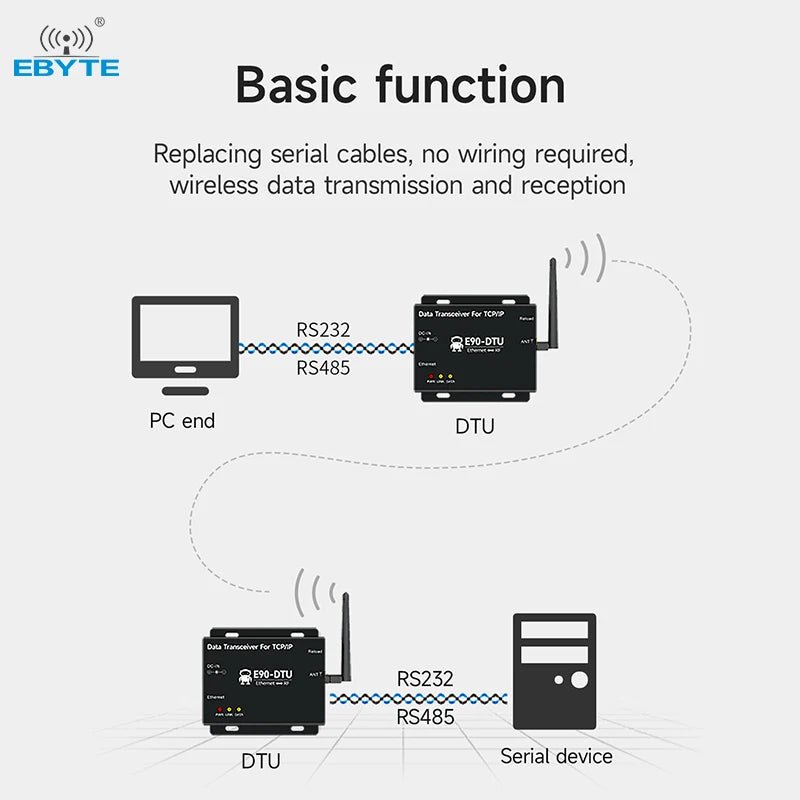

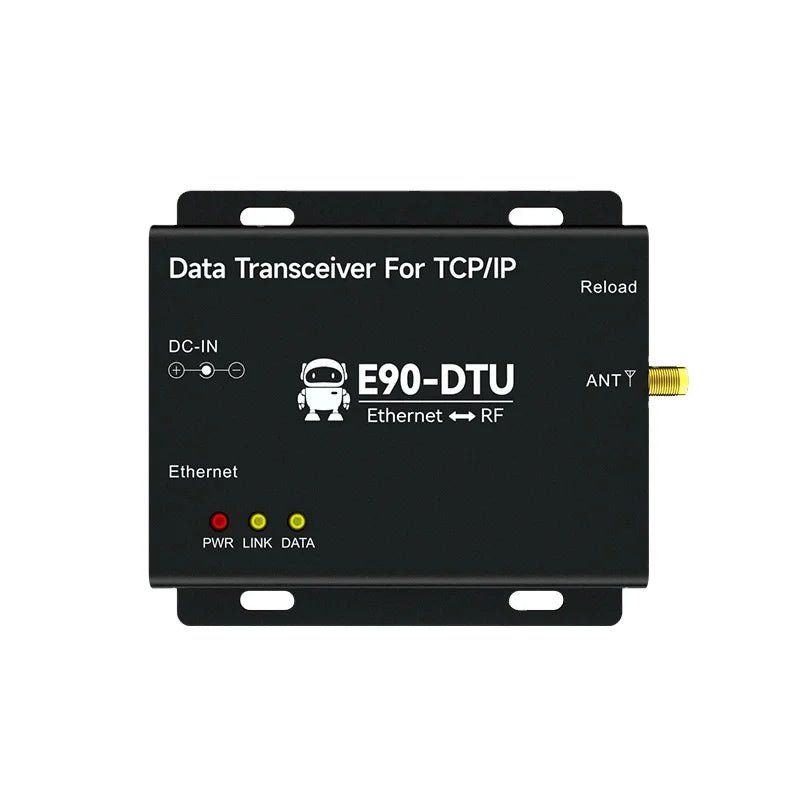

Industrial-grade wireless data transmission modem Basic function Multi-protocol transparent transmission Fully functional Gateway configuration Parameter comparison configuration software Temperature-compensated crystal oscillator Application scenarios Physical product
