E104-BT5032A Ebyte 2.4ghz nrf52832 wireless rf module ble4.0 ble4.2 ble5.0 bluetooth ibeacon module high gain ceramic antenna

$4.59

Shipping calculated at checkout.

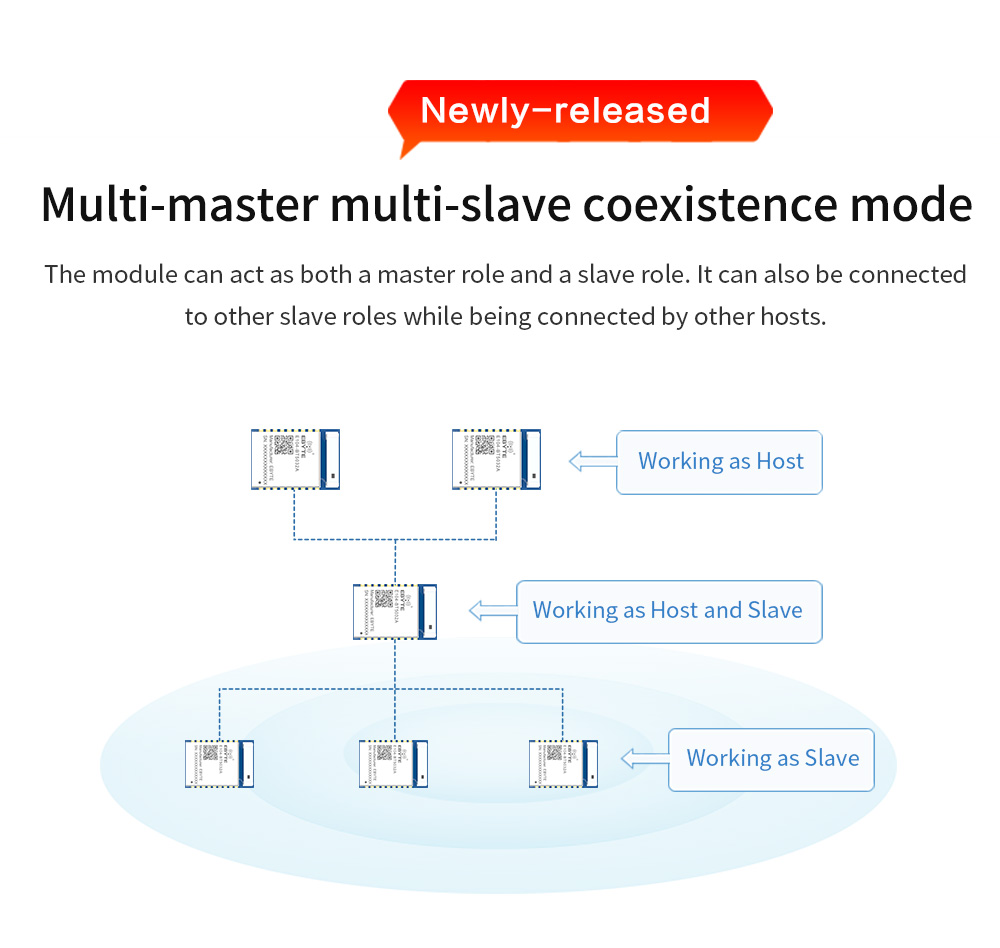

[Introduction]:Small in size and low in power consumption, E104-BT5032A is a serial-to-BLE module based on BLE 5.0 working at 2.4Ghz. It works as both Bluetooth master and slave.Based on nRF52832 from... Read more

Availability: In Stock

Shipping: Free Air Shipping Over $50

Ship From: China EBYTE Official Factory

Order today. Get it and , hoursminutes
Out of stock

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $50 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



[Introduction]:Small in size and low in power consumption, E104-BT5032A is a serial-to-BLE module based on BLE 5.0 working at 2.4Ghz. It works as both Bluetooth master and slave.Based on nRF52832 from Nordic, the E104-BT5032Amodule is developed by Chengdu Ebyte.

[IC]:nRF52832

[Frequency]:2.402~2.480GHz

[Protocol]:BLE5.0

[Distance]:60m

[Size]:11.6*16mm

[Weight]:0.8±0.1g

RF Parameter Value Remark
Frequency [MHz] 2402~2480 MHz ISM band
Transmitting power 4 dBm -
Receiving sensitivity [dBm] -96 dBm Bluetooth®lowenergymode
Distance 60m Test condition:clear and open area, antenna gain: 5dBi,@4dBm,antenna height: 2m
Hardware Parameter Value Remark
Size 11.6 * 16 mm -
Antenna Ceramic antenna 50Ω Impedance
Communication interface UART -
Package SMD -
Electronic parameter Min Typ Max Unit Remarks
Voltage supply [V] 1.7 3.3 3.6 V ≥3.3 V ensures output power
Communication level [V] - 3.3 - V For 5V TTL, it may be at risk of burning down
Sleep advertising current(default) - 173 - uA default advertising gap is 1s
Wake-up advertising current(default) - 8.70 - mA default advertising gap is 1s
Wake-up no advertising current(default) - 8.68 - mA default connection gap is 500ms
wake-up connection current(default) - 8.78 - mA -
Operating temperature [℃] -40 - +85 -



Company Profile
Product Descriptio




E104-BT5032A_01E104-BT5032A_02EN-E104-BT5032A主从共存1000E104-BT5032A_03en-E104-BT5032A

E104-BT5032A_05E104-BT5032A_06E73
E104-BT5032A_07
