SoC module
Ebyte SoC RF Module Selection Guide
Ebyte SoC (System-on-Chip) RF modules highly integrate the microcontroller (MCU), wireless radio unit, protocol stack, memory and peripheral interfaces into a single chip. Compared with discrete solutions, SoC modules significantly reduce system complexity, BOM cost and PCB size, while lowering power consumption.
Our SoC module portfolio covers Sub-1GHz and 2.4GHz frequency bands, supporting LoRa, BLE, ZigBee, Wi-SUN and proprietary protocols. They are ideal for battery-powered IoT end nodes, smart sensors, wearable devices and smart home products.
How to Select SoC module?
| Screening Dimension | Recommended Product Series |
|---|---|
| Transmission Distance | • Ultra-long range (>5km): E77 Series • Medium range (1–3km): E70, E51, E04, E72, E83 Series • Short range (<1km): E73, E75, BLE 6.0, E79 Series |
| Frequency Band | • Sub-1GHz (long range, strong penetration): E70, E77, E51, E04, E79 • 2.4GHz (global license-free, high data rate): E72, E73, E75, E83, BLE 6.0, E79 • Dual-band (Sub-1G + 2.4G): E79, E04 Series |
| Wireless Protocol | • LoRa spread spectrum: E77, E04 Series • Bluetooth LE: E72, E73, E83, BLE 6.0, E79 Series • ZigBee: E72, E75, E79, E83 Series • Wi-SUN: E51 Series • Proprietary RF: E70 Series |
| Power Consumption Level | • Battery-powered ultra-low power: E70, E73, BLE 6.0, E77 Series • Mains-powered high performance: E72, E83, E51 Series |
| Typical Application | • Smart metering / remote sensing: E77, E70, E51 Series • BLE consumer / wearables: E73, BLE 6.0 Series • Smart home / building automation: E75, E72 Series • High-end IoT gateway: E83, E79 Series |
Full Series Parameter Comparison Table
| Product Series | Chipset | Frequency Band | TX Power | Max LOS Range | Core Protocols | Key Features |
|---|---|---|---|---|---|---|
| E70 Series | TI CC1310 | Sub-1GHz (425–922MHz) | 14 dBm | 0.5 – 1.5 km | Proprietary RF, Wireless M-Bus | Ultra-low power, high integration, industrial grade |
| E72 Series | TI CC2630 / CC2652P | 2.4 GHz ISM | 5 – 23 dBm | 1.5 km | ZigBee, BLE, Thread | Multi-protocol, high power output, large memory |
| E73 Series | Nordic nRF52810/32/40 | 2.4 GHz ISM | 4 dBm | 100 – 500 m | Bluetooth LE 5.0/5.1/5.2 | Ultra-low power BLE, rich peripherals, cost-effective |
| E75 Series | NXP JN5168 / JN5169 | 2.4 GHz ISM | 10 / 20 dBm | 0.5 – 1 km | ZigBee | Dedicated ZigBee SoC, high stability, large flash |
| E77 Series | ST STM32WLE5CCU6 | 410–510MHz / 850–930MHz | 22 dBm | 5.6 km | LoRa, (G)FSK, BPSK | Single-chip MCU+LoRa, long range, low power |
| BLE 6.0 Series | nRF54L15 / EFR32BG24 | 2.4 GHz ISM | 8 – 10 dBm | 110 – 200 m | Bluetooth LE 6.0 | Latest BLE standard, premium audio, ultra-low power |
| E79 Series | TI CC1352 | Sub-1GHz + 2.4GHz Dual-band | 20 dBm | 170m (2.4G) / multi-km (Sub-1G) | Thread, ZigBee, BLE, Sub-1G | Dual-band multi-protocol, industrial IoT grade |
| E83 Series | Nordic nRF5340 | 2.4 GHz ISM | 3 dBm | 1.5 km | BLE 5.3, NFC, Thread, ZigBee | Dual-core high performance, advanced security |
| E04 Series | STM32WL33 / STM32WBA54 | Sub-1GHz + 2.4GHz | 10 – 20 dBm | 0.21 – 3.5 km | LoRa, BLE, (G)FSK | STM32WL platform, multi-modulation support |
| E51 Series | Silicon Labs EFR32FG25 | Sub-1GHz | 16 dBm | 2.5 km | Wi-SUN, ZigBee, BLE | Wi-SUN ready, high performance, large memory |
* Max LOS range is measured in open environment with matched antenna. Actual range depends on environment obstacles and interference.
5-Point Quick Selection Guide
- Choose frequency first by deployment scenario. Select Sub-1GHz series (E77, E70, E51) for outdoor long-range and wall-penetration use cases; choose 2.4GHz series (E73, E72, BLE 6.0) for global market compatibility and higher data rate requirements.
- Match your required wireless protocol stack. Pick dedicated SoC series for standard protocols: E77/E04 for LoRa, E73/BLE 6.0 for Bluetooth LE, E75/E72 for ZigBee, E51 for Wi-SUN smart grid applications.
- Evaluate power budget for power supply type. For battery-powered end nodes and portable devices, choose ultra-low power series like E70, E73 and E77; for gateway or mains-powered devices, select high-performance series such as E72, E83 and E51.
- Calculate the required transmission distance. Use E77 (5.6km) for kilometer-level long-distance transmission; use E72/E83 (1.5km) for medium-range networking; use E73/BLE 6.0 (100–200m) for short-range BLE proximity applications.
- Optimize for integration and BOM cost. All SoC modules integrate MCU and RF core on one chip, reducing PCB size and component count. Select the series with the best matching peripherals, memory size and package for your firmware design.
Ebyte E07-900M10S Costo 26MHz crystal Wireless communication equipment 10dBm 868MHz 915MHz TI CC1101 rf chip SMD wireless module
$2.99 – $4.39E07-900M10S is an independently developed 855-925MHz SMD wireless module based on the CC1101 chip produced by Texas Instruments (TI), using an industrial-grade high-precision 26MHz crystal oscillator. This ultra-precise, industry-standard wireless...

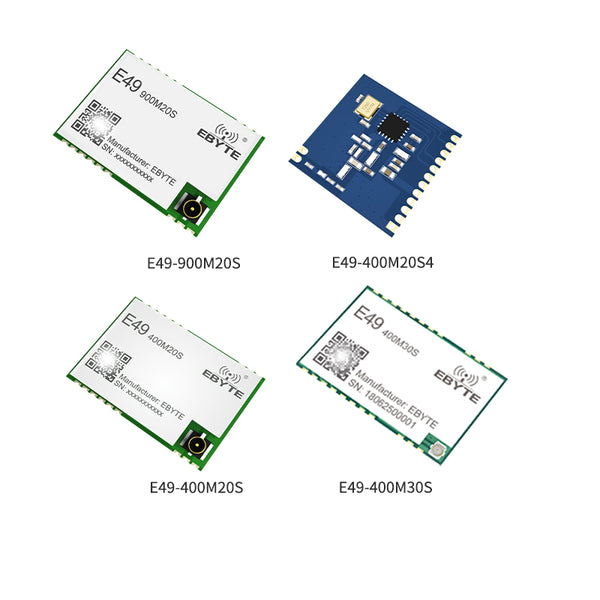

Ebyte E49-M Series Pure Hardware Wireless Module Wireless Data Transmission Module 433MHz 868MHz 915MHz 20dBm 2.5-5.5km Iot
$1.53 – $5.49E49-400M20S4 Ebyte wireless data transmission Pure hardware module Low output power SPI communication interface [IC]：CMT2300A [Frequency]：410~510MHz [Power]：20dBm [Distance]：2.5km [Size]：16*16mm [Product weight]：0.9±1g [Introduction]：E49-400M20S4 is a cost-efective wireless data transmission module launched...
Ebyte E78-868LN22S(6601) ASR6601 LoRaWAN 868MHz SoC LoRa RF IoT Wireless Module Long Range Data Transceiver Development Board
$5.38E78-868LN22S (6601) series of products is the Chengdu EBYTE Electronic Technology Co., Ltd. design and production of the standard LoraWan node module, operating band EU 850 to 925 MHZ, support...
nRF52810 BLE 4.2 BLE5.0 2.4GHz Bluetooth Module Micro-size Wireless Transceiver Module EBYTE E73-2G4M04S1A CE RoHS
$3.16[Introduction]：E73-2G4M04S1A is a hardware platform without firmware, so users need to conduct secondary development.For more details about nRF52810, please refer to the official datasheet. This module has maximized the RF...
Ebyte E07-400T10S TI CC1101 RF Wireless communication equipment 10dBm 433MHz SMD SoC Wireless Module
$3.10 – $4.39NEW Ebyte OEM/ODM modem internet E07-400T10S development boards and kits [IC]：CC1101 [Frequency]：410~450MHz [Power]：10dBm [Distance]：1.5km [Size]：16*26mm [Product weight]：1.2g [Introduction]：E07-400T10S is an independently developed 410~450MHz SMD wireless module based on the CC1101...
Ebyte E30-433T20D SI4438/63 433MHz 20dBm UART DIP LoRa RF Wireless Module
$4.75 – $5.99Chip: SI4463 (Silicon Labs) Frequency: 425–450.5 MHz (default 433 MHz) Tx Power: 10–20 dBm (default 20 dBm / 100 mW) Rx Sensitivity: −121 dBm @ 5 kbps air rate Range:...
EBYTE E01C-ML01SP4 GFSK PA+LNA 2.4g Wireless Module 2.4GHz 2km Remotely Rf Transmitter Receiver With IPX/IPEX Antenna Interface
$1.62 – $2.79EBYTE SI24R1 GFSK PA+LNA 2.4g Wireless Module 2.4GHz 2km Remotely Rf Transmitter Receiver [IC]：Si24R1 [Frequency]：2.4~2.525GHz [Power]：20dBm [Distance]：2km [Size]：14.5*18mm [Product weight]：1.4±0.1g [Introduction]：E01C-ML01SP4 is a small size 2.4ghz SMD wireless module, maximum...
Ebyte E22-400T30S Semtech $X1262 UART 10Km Range 433Mhz 30dBm SID CE ROHS FCC LoRa IT RF Module
$0.20 – $10.29product introduction E22-400T30S SEMTECH LoRa solution wireless serial port module LoRa spread spectrum technology [Frequency]：410.125～493.125MHz [Power]：30dBm [Distance]：10km [Product weight]：5.7±0.1g [Size]：25*40.5mm [Introduction]：E22-400T30S is a wireless serial port module (UART) based...
EBYTE E49-400T20S hot 20dBm TTL level output iot module 433mhz sx1278 wireless module
$0.20 – $3.69Wireless rf 433 GFSK module 470mhz 433mhz long range wireless transceiver module low consumption [IC]：- [Frequency]：410~510MHz [Power]：20dBm [Distance]：2.5km [Size]：26*16mm [Weight]：2.0±0.1g [Introduction]：E49- 400T20S is an ultra-high cost-ffective wireless module launched by...
Ebyte E310-900T23S AX5045 915MHz UART Module 23dBm 5.6km SMD
$5.89 – $7.19E310-900T23S is a wireless serial module based on ON Semiconductor’s AX5045 narrow-band Sub-GHz RF transceiver. Operating at 900–931MHz (default 915MHz), it supports half-duplex transparent UART transmission, air wake-up (WoR, ultra-low...
Ebyte E41-400M20S Cost-Effective 20dBm spi interface 433mhz Wireless Module Long Range Rf Transceiver
$2.64 – $3.99Ebyte Ultra-High Cost-Effective Wireless Module 2000m Long Range Rf Transceiver Based On AMICCOM A7139 Chip [IC]：A7139 [Frequency]：425~470MHz [Power]：20dBm [Distance]：2km [Size]：20*14mm [Feature]：Super cost-effective, low power consumption [Product weight]：2.3±0.5g [Introduction]：E41-400M20S is...
EBYTE E79-400DM2005S TI CC1352 SoC Wireless RF Module 433MHz 20dBm Dual-band ARM-based Long Range PCB Antenna Sub-G and 2.4G Module
$9.74 – $10.99[Introduction]：Based on TI CC1352P chip, E79-400DM2005S is a dual-band ARM-based RF SoC Module designed by Ebyte, with max transmitting power of 20dBm at SUB-1GHz and 5dBm at 2.4GHz. The module...
