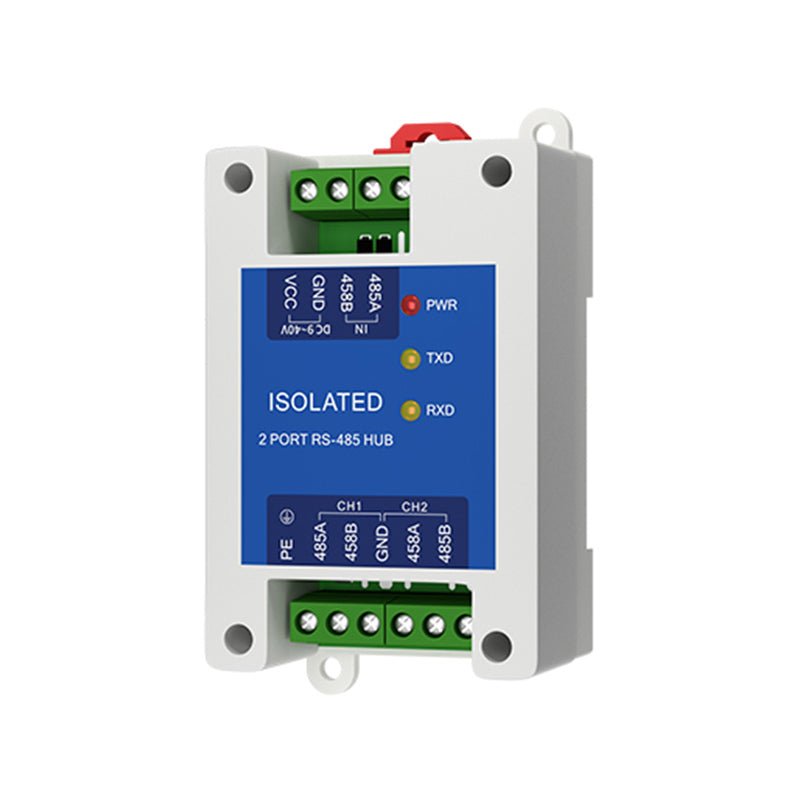

E810-R12 Industrial grade 2-way RS485 hub, photoelectric isolation, one-to-many distributor, multiple-to-one hub, multiple-way output bus splitter, extended lightning protection signal amplifier

[Data interface]:RS485

[Working voltage]: DC 9~40V

[Protection level]:Industrial EMC level 3

[Product size]:100*54*32mm

[Product weight]:70±5g

[Introduction]:E810-R12 is an isolated repeater (HUB) for 1-way RS-485 to 2-way RS-485 launched by Ebyte. RS485 hub is a communication device that supports 1-way RS-485 master device and 1-way or multiple-way RS-485 slave devices. Photoelectric isolation technology is used to protect the master and slave devices from interference. No configuration is required, and transparent data transmission between the master and slave interfaces. This product is suitable for comprehensive RS485 communication systems such as automation control systems, monitoring systems, alarms, access control systems, IC card charging, meter reading, one-card pass, parking lot charging, etc.

Parameter Name  Parameter Value  Description
General parameters Data interface RS-485 interface
Baud rate 300~230400, support custom baud rate
Operating voltage DC 9~40V
Protection level Industrial EMC3 level
Isolation voltage 1.5KV
Static protection level Contact 4 KV, air 8KV
Pulse surge Differential mode 1KV, common mode 2KV
Operating temperature and humidity -40~85℃, 5%~95% (no condensation)
Storage temperature and humidity -40~105℃, 5%~95% (no condensation)
Ground terminal Support
Difference Parameters Number of expansion paths E810-R12: 2-way RS-485
E810-R14: 4-way RS-485
E810-R18: 8-way RS-485
Product dimensions E810-R12:100×54×32mm
E810-R14:120×72×34mm
E810-R18:120×72×34mm
Product weight E810-R12:70±5g
E810-R14:120±5g
E810-R18:120±5g
Interface standards E810-R12: 5.08mm copper pin plug-in terminal
E810-R14: 5.08mm plug-in terminal
E810-R18: 3.81mm plug-in terminal

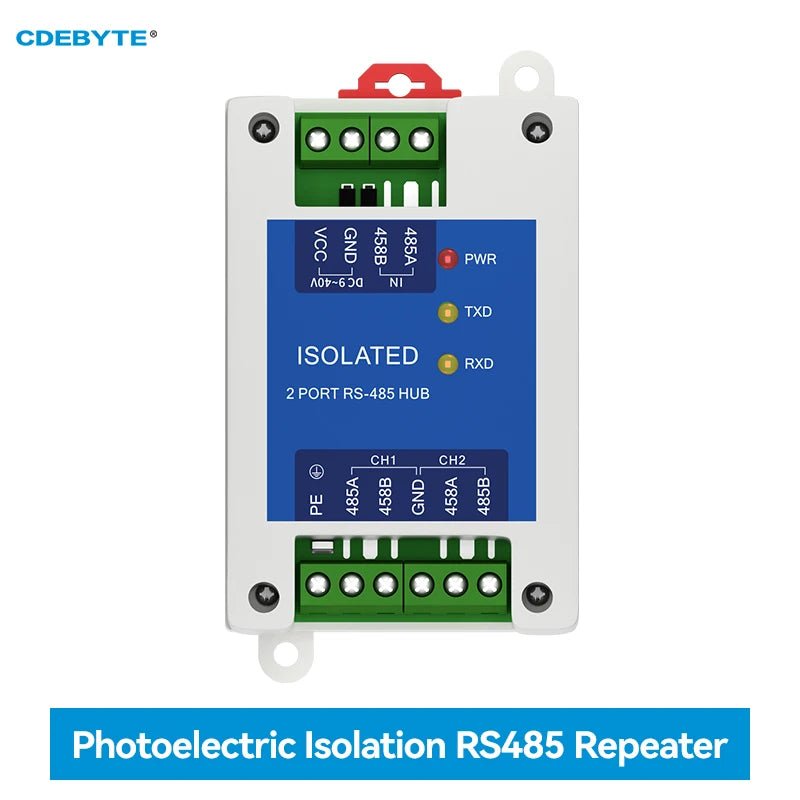

Industrial Grade RS485 Repeater

5 reasons to choose a repeater

Parameter Comparison Table

DC 9~40V Wide Voltage Supply

Power + Signal Double isolation

ESD protection

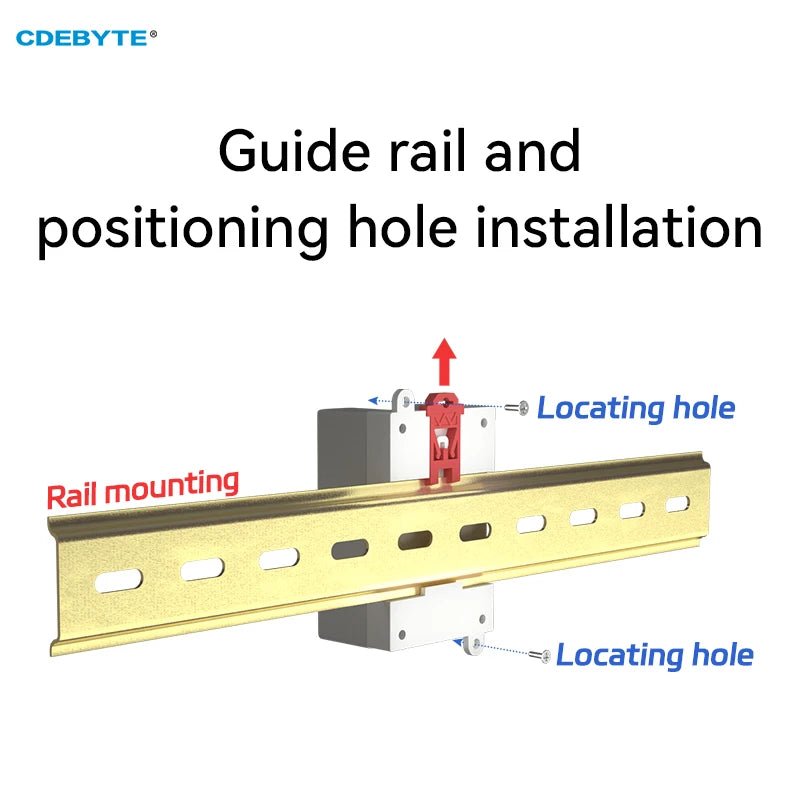

Guide rail and positioning hole installation

High-speed bidirectional transmission

Product Size

Communication Connection Diagram

Application Scenarios
