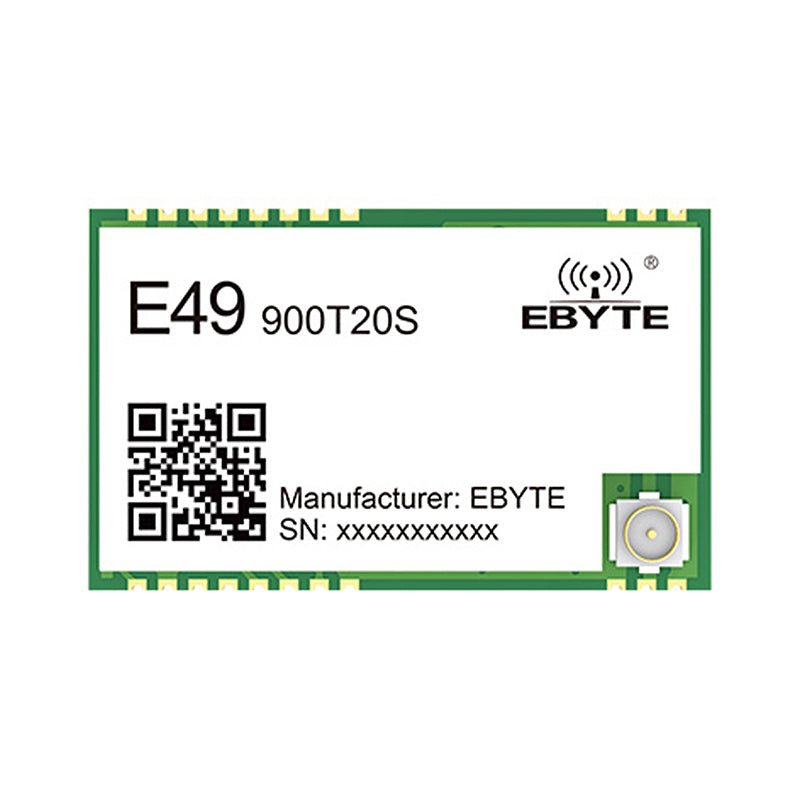

Ebyte E49-900T20S Wireless Module 20dBm Long Range 2.5km Low Power Consumption IPEX/Stamp Hole Antenna Data Transmission Module

$2.48

Shipping calculated at checkout.

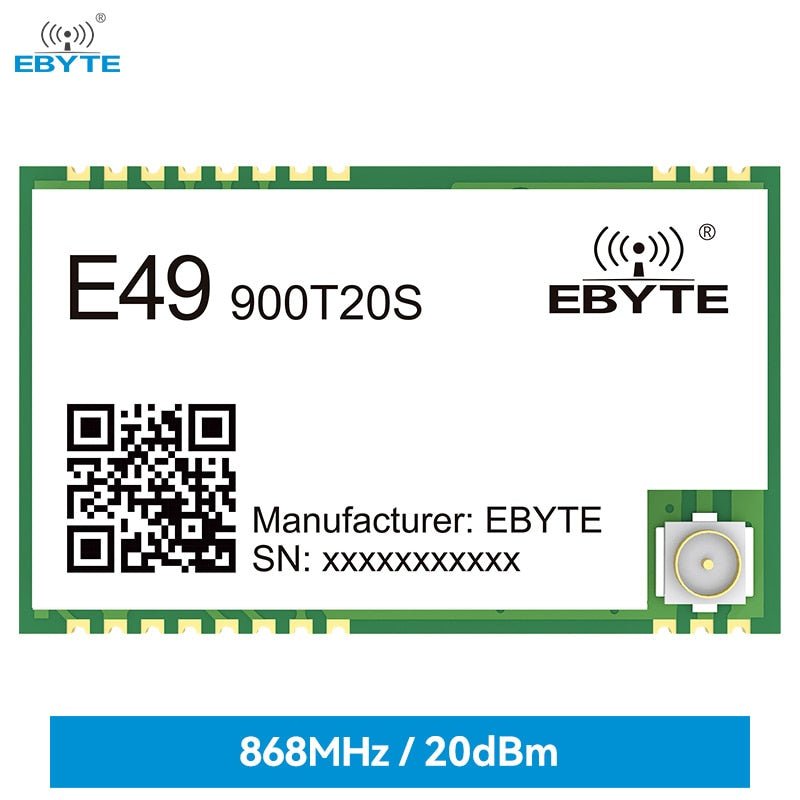

E49-900T20S Ebyte OEM/ODM New best quality 20DBM transmit power ISM 915MHZ Wireless data transmission module [Frequency]:850~930MHz [Power]:20dBm [Distance]:2.5km [Size]:26*16mm [Product weight]:2.1±0.1g [Introduction]:E49-900T20S is an ultra-high cost-effective wireless module launched by Chengdu... Read more

Availability: In Stock

Free Gift: TI Samples $0.00, ESP32 Samples $0.00(Christmas Only)

Shipping: Free Air Shipping Over $79.99

Ship From: China EBYTE Manufacturer Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes

Module plus antenna: E49-900T20S

  • E49-900T20S

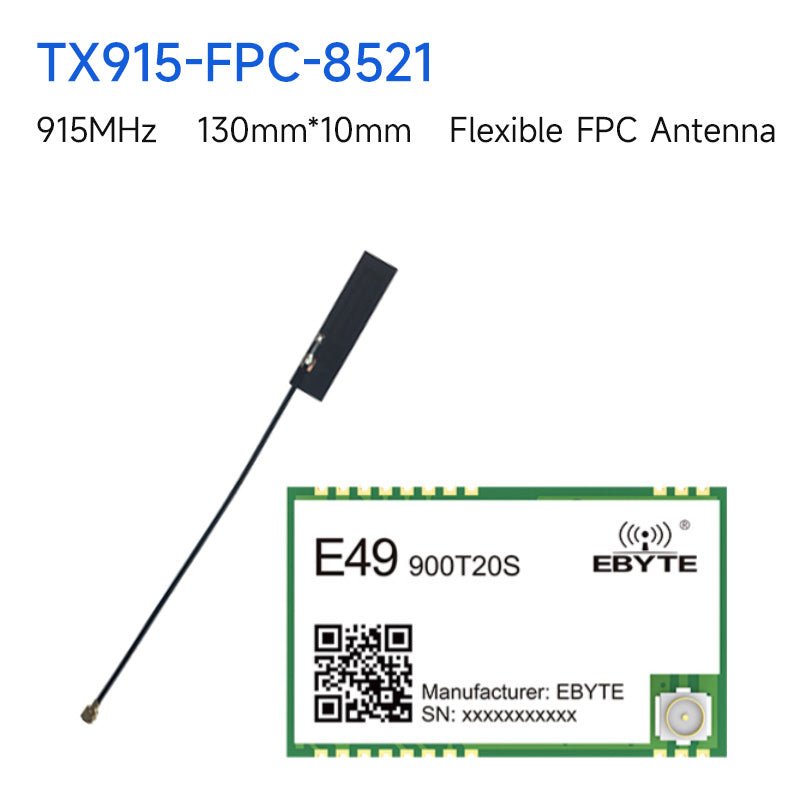

  • E49-900T20S and TX915-FPC-8521

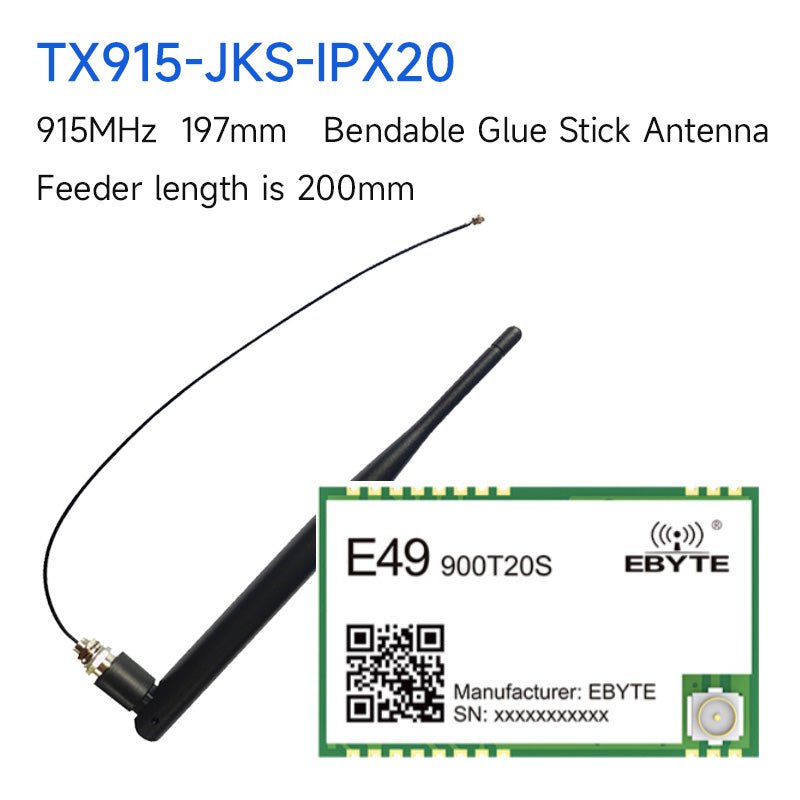

  • E49-900T20S and TX915-JKS-IPX20
Will not ship until [19041994]
$2.48
Out of stock
SKU: E49-900T20SN/ATags: 2.5km, 20dBm, 850~930MHz, UART

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $79.99 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



EBYTE product technical manual and detailed parameters download: https://www.cdebyte.com/Product-Selection


E49-900T20S Ebyte OEM/ODM New best quality 20DBM transmit power ISM 915MHZ Wireless data transmission module

[Frequency]:850~930MHz

[Power]:20dBm

[Distance]:2.5km

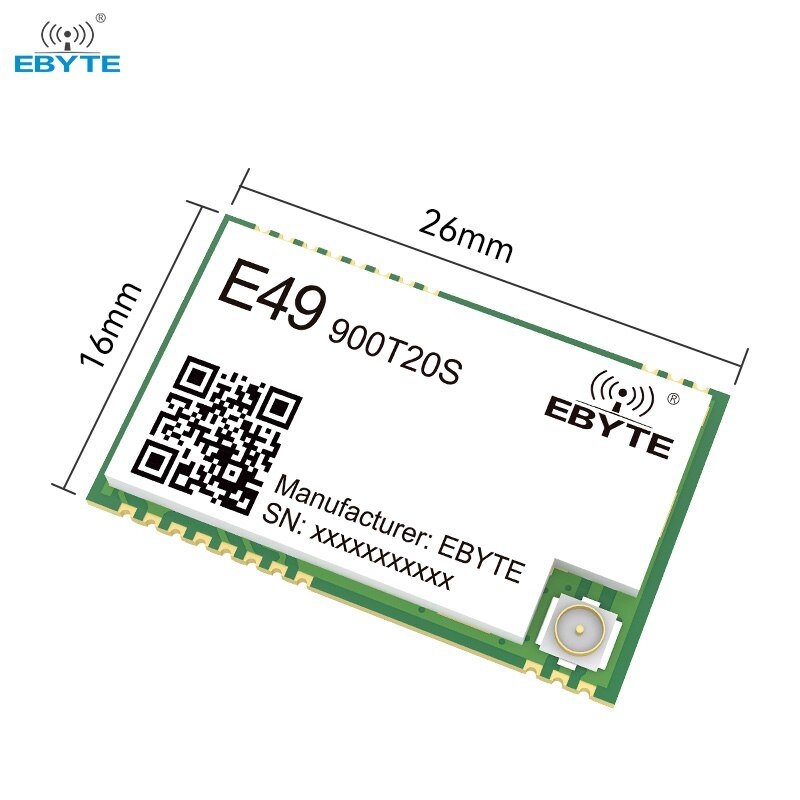

[Size]:26*16mm

[Product weight]:2.1±0.1g

[Introduction]:E49-900T20S is an ultra-high cost-effective wireless module launched by Chengdu Ebyte. It has 4 operating modes. Each transmission mode has its own characteristics and can be applied to various application scenarios.

Main parameter Description
Remark
Distance for reference
2500m

Test condition:clear and open area, antenna gain:5dBi,antenna height:2.5m,air data rate:1.2kbps

FIFO
54 Btye

Maximum capacity of single transmission, auto-sub-packing when exceeding

Cache capacity
500 Btye

-

Modulation
GFSK

-

Communication interface
UART serial port

-

Package
SMD

-

Connector
1.27mm

-

Size
26*16mm

-

Antenna
IPEX/Stamp hole

50 ohm impedance

Main parameter Min. Typ. Max. Unit Remark
Operating voltage
3.3
5 5.5 V Over 5.5V will permanently damage module
Operating frequency
850
868
930
MHz
Support ISM band
Communication level - 3.3 - V For 5V TTL, it may be at risk of burning down
TX current -
97.9
- mA Instant power consumption
RX current - 12.04
- mA
-
Sleep current - 1.3
- μA Software is shut down

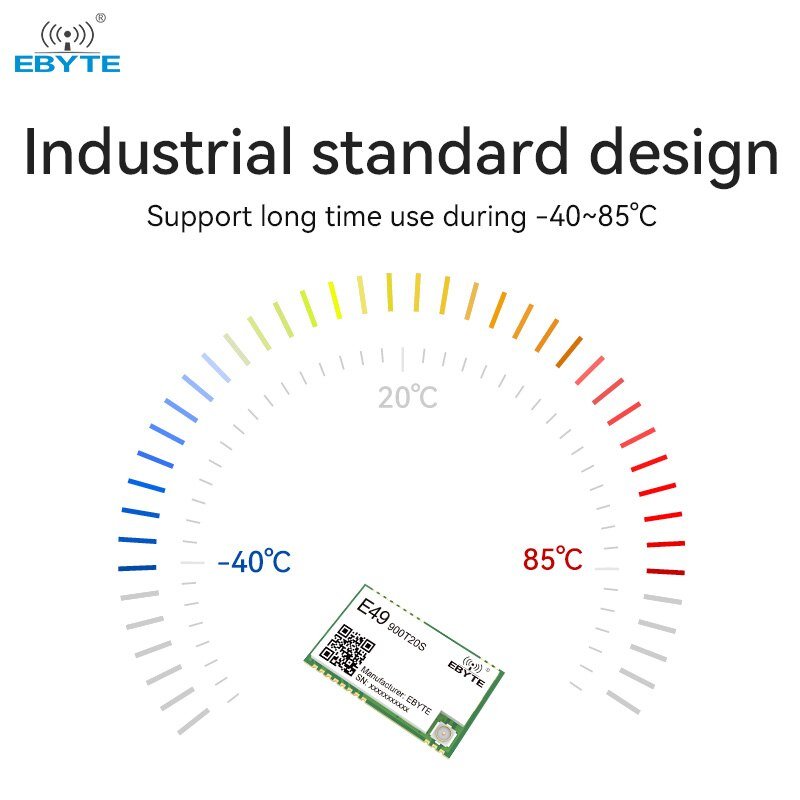

Operating temperature
-40 -
+85 Industrial design

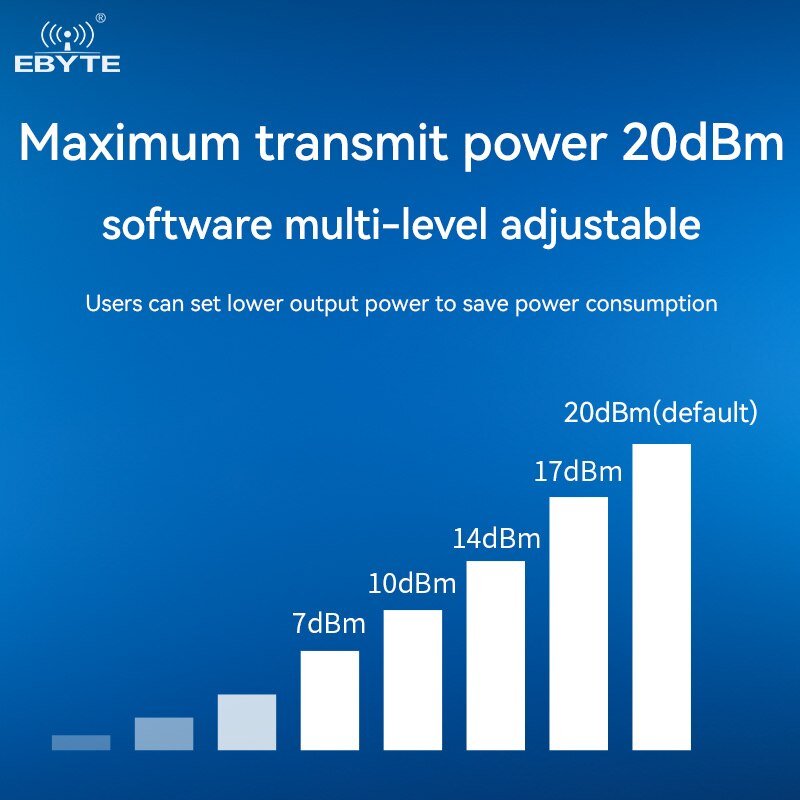

Max Tx power
- - 20 dBm
-
Receiving sensitivity
-114
-115
-116
dBm
Air data rate is1.2kbps

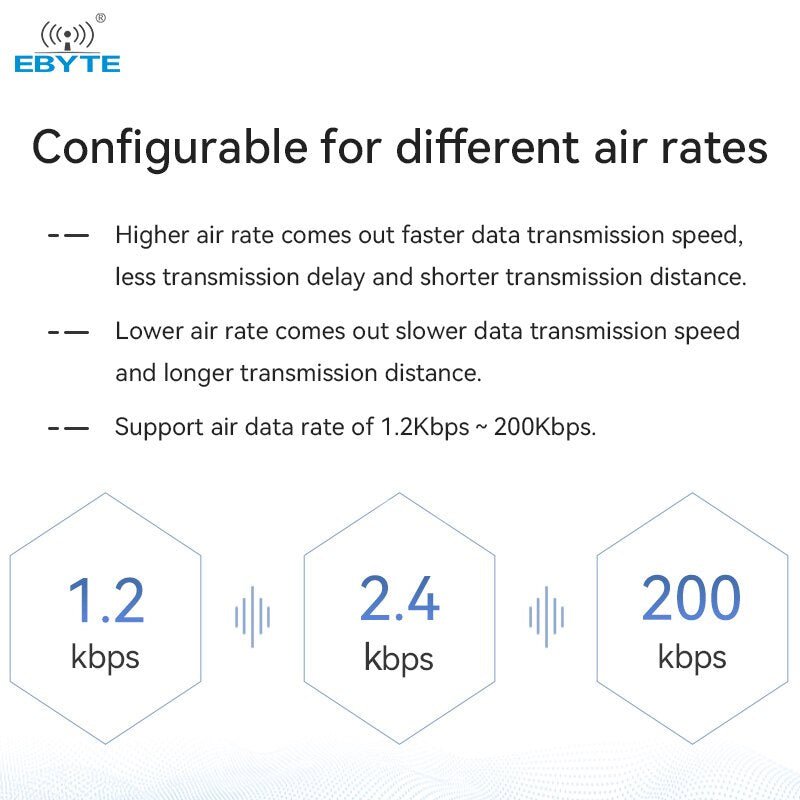

Air data rate
1.2k 2.4k 200k bps
Controlled via user’s programming

E49-900T20S ultra-high cost-effective wireless module

Module plus antenna

E49-900T20S, E49-900T20S and TX915-FPC-8521, E49-900T20S and TX915-JKS-IPX20
