Ebyte E70-900MT14S TI CC1310 chip solution Air arousal Ultra-low receiving current support for the ModBus protocol

$3.70

Shipping calculated at checkout.

E70-900MT14S Ultra-small size wireless serial port module   [Chip solution]:CC1310 [Carrier frequency]:861~922.5MHz [Transmission power]:14dBm [Communication distance]:1.5km [Air speed]:2.5k~168k [Product size]:10*10mm [Product weight]:0.5g±0.1g [Introduction]:E70-900MT14S is a wireless serial module (UART) based on... Read more

Availability: In Stock

Free Gift: TI Samples $0.00, ESP32 Samples $0.00

Shipping: Free Air Shipping Over $79.99

Ship From: China EBYTE Manufacturer Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes
Out of stock
SKU: E70-900MT14SN/ATags: 1.5km, 14dBm, 2.5k~168k, 861~922.5MHz

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $79.99 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



EBYTE product technical manual and detailed parameters download: https://www.cdebyte.com/Product-Selection

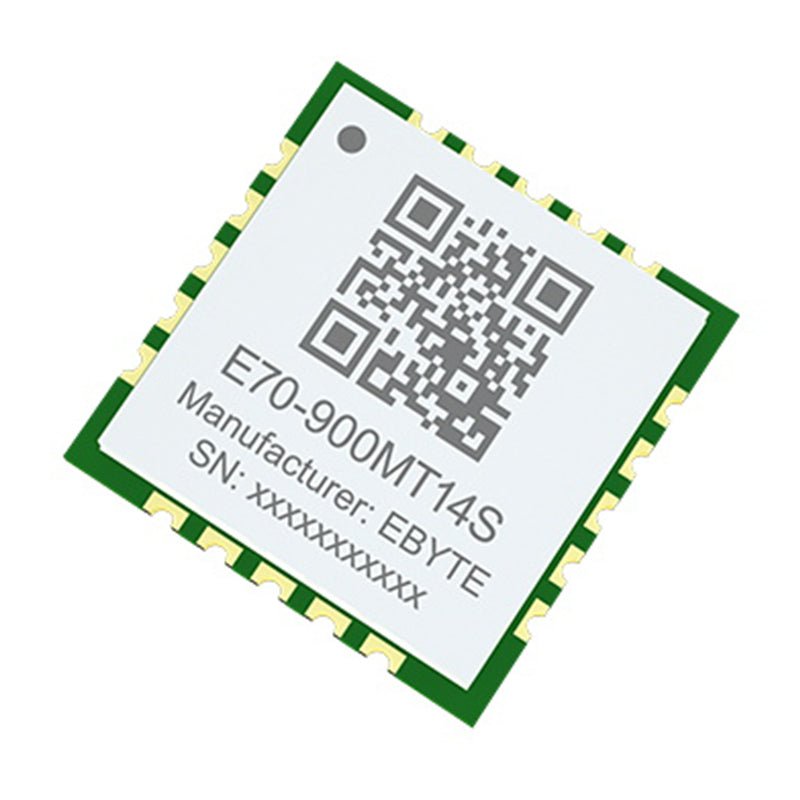

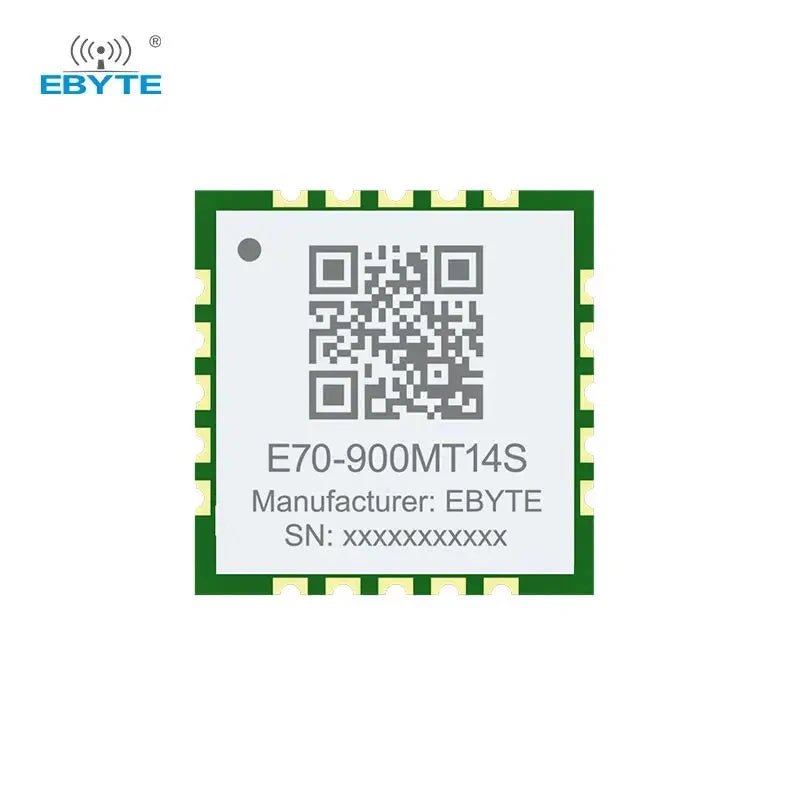

E70-900MT14S Ultra-small size wireless serial port module

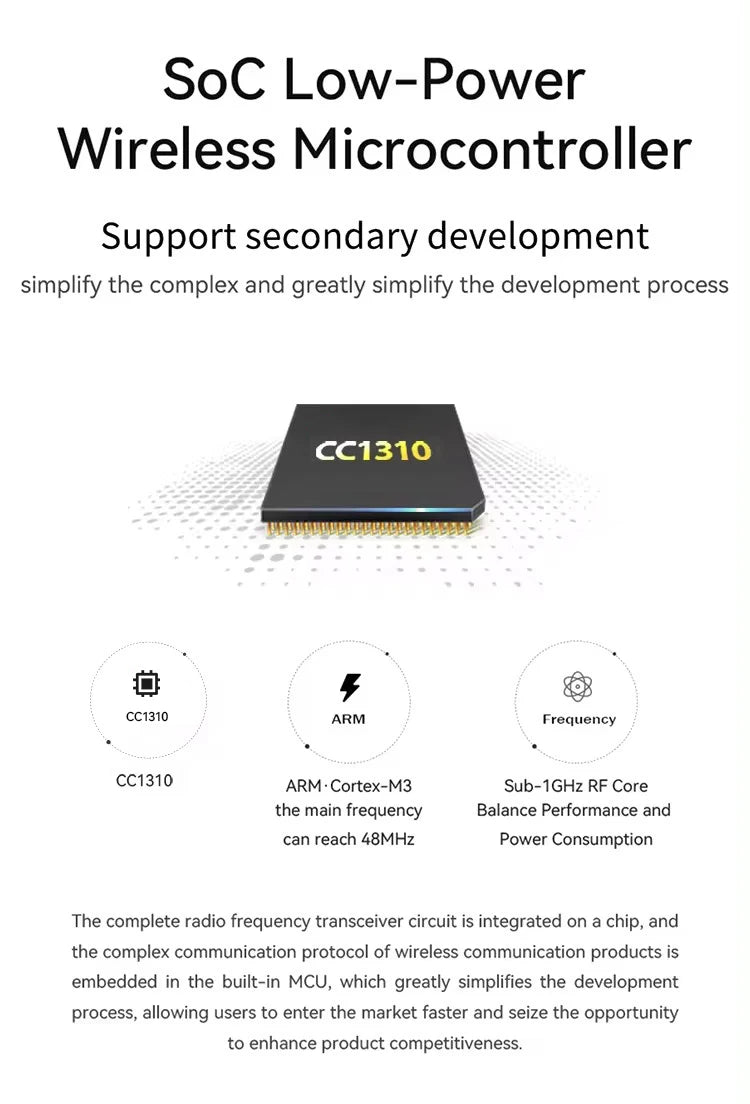

[Chip solution]:CC1310

[Carrier frequency]:861~922.5MHz

[Transmission power]:14dBm

[Communication distance]:1.5km

[Air speed]:2.5k~168k

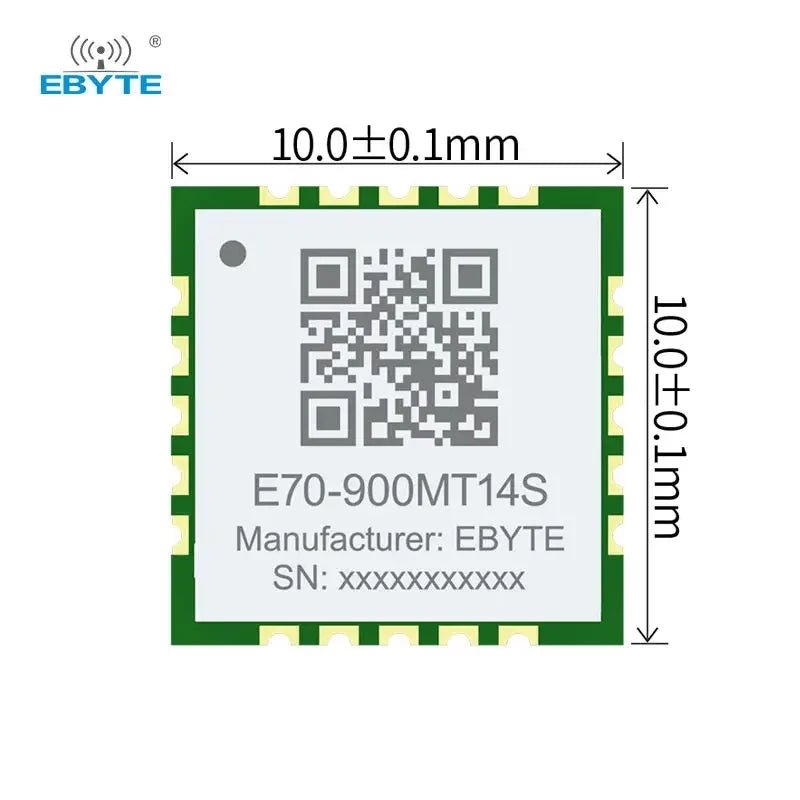

[Product size]:10*10mm

[Product weight]:0.5g±0.1g

[Introduction]:E70-900MT14S is a wireless serial module (UART) based on TI's CC1310 (built-in dual-core ARM) RF chip, which can work in the 861-876.5, 907-922.5MHz band (default 868MHz), GFSK modulation, TTL level output, 3.3V IO port voltage; the product uses a high-precision wide temperature The product adopts a high-precision wide temperature crystal, 24MHz industrial-grade high-precision low temperature drift crystal, to ensure its industrial nature and stability.

E70-900MT14S CC1310 ModBus ART High-speed Continuous TransmissionE70-900MT14S 8 working modesE70-900MT14S Multiple Transmission, Diversified Networking

E70-900MT14S

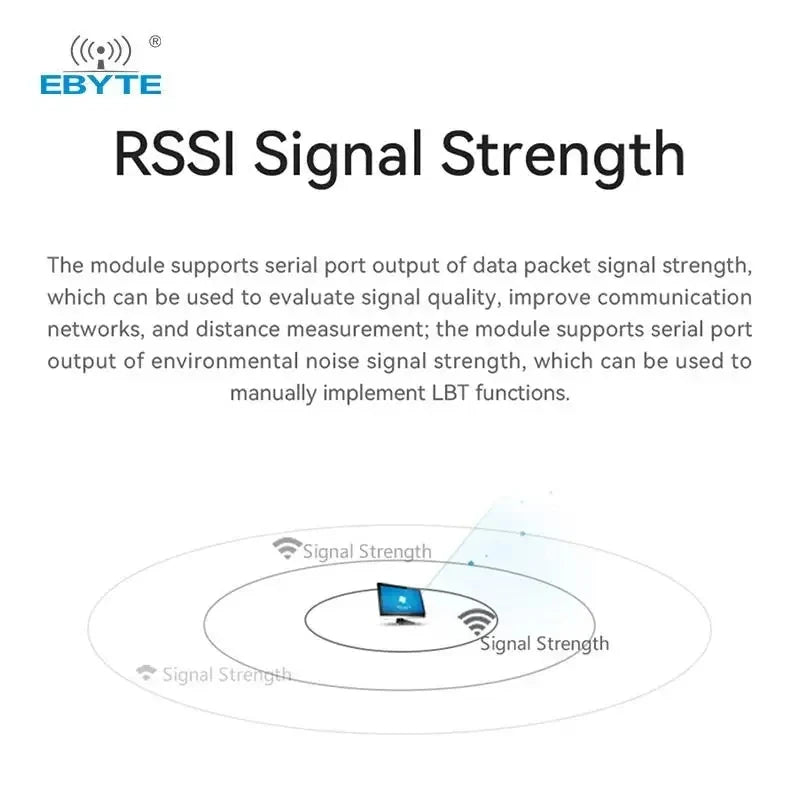

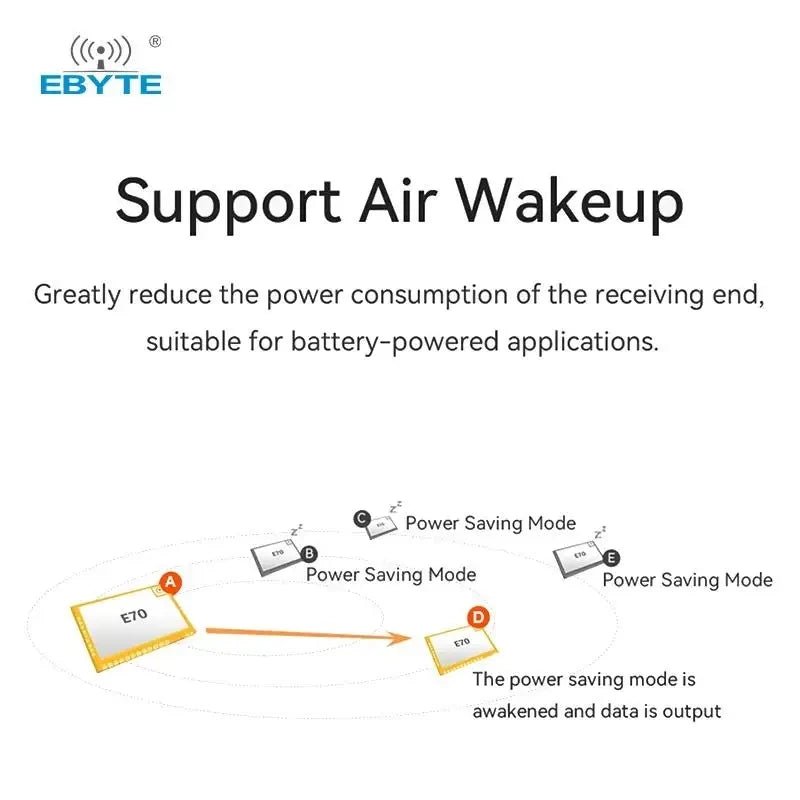

E70-900MT14S Support Air WakeupE70-900MT14S RSSI Signal StrengthE70-900MT14S Circuit diagramE70-900MT14S Field Distance TestE70-900MT14S High-Quality ComponentsE70-900MT14S Application Scenario
