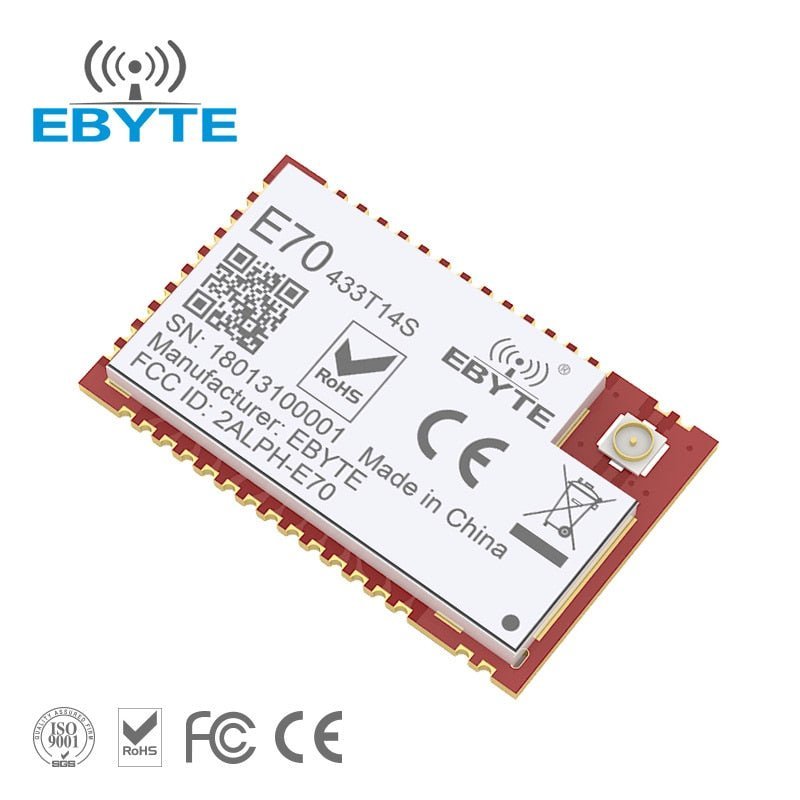

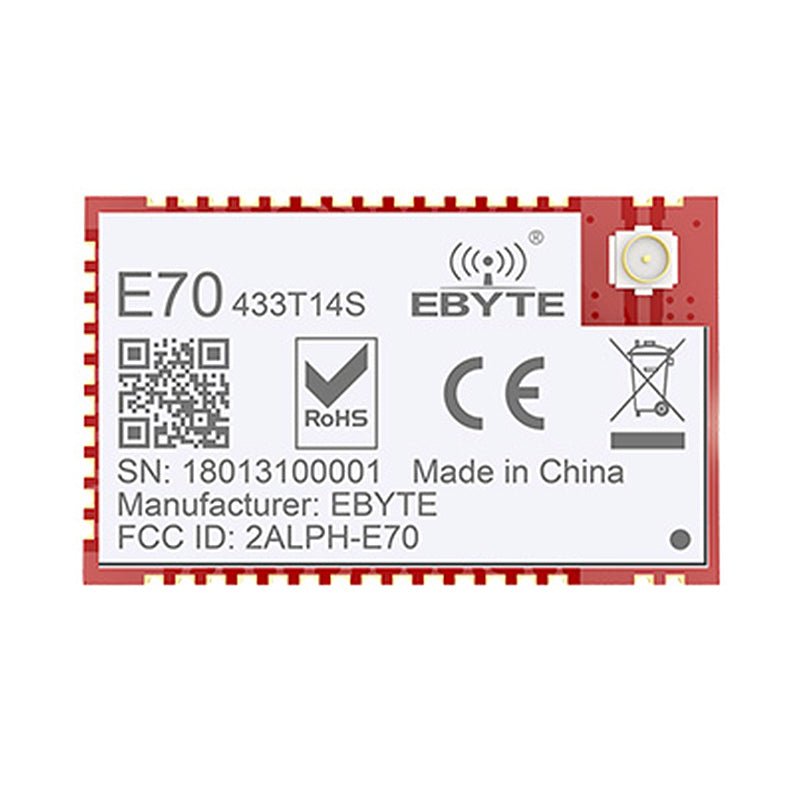

[Introduction]：E70-433T14S, based on CC1310 of TI, is a small SMD type UART RF module with IPEX interface. It is a hardware platform without firmware, so users need to conduct secondary development.
Brand Name:EBYTE
Origin:Mainland China
Condition:New
Type:Drive IC
Model Number:E70-433T14S
Supply Voltage:2.1 - 3.8 V
Dissipation Power:25mW
Operating Temperature:-40 - +85 ℃
Application:Computer
Package:SMD
IC:CC1310
Frequency:425~450.5MHz
Power:14dBm
Interface:UART/IO
Weight:1.7±0.1g
Type:UART Wireless Module
| RF Parameter | Value |
Remark |
| Working frequency |
425~450.5 MHz |
Default: 433MHz (24MHz oscillator) |
| Transmitting power | 4~14 dBm |
Default: 14dBm（About 25mW） |
| Receiving sensitivity |
-110 dBm |
Air data rate: 2.5kbps |
| Air data rate | 2.5k~168kbps |
Default: 2.5kbps |
| Test distance | 1500m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2.5m, air data rate: 2.5kbps |
| Hardware Parameter | Value |
Remark |
|
IC |
CC1310F128RGZ |
|
|
FLASH |
128 KB |
|
|
RAM |
20 KB |
|
|
Core |
Cortex-M3（MCU）+Cortex-M0（RF） |
|
|
Size |
16 * 26 mm |
Without SMA |
|

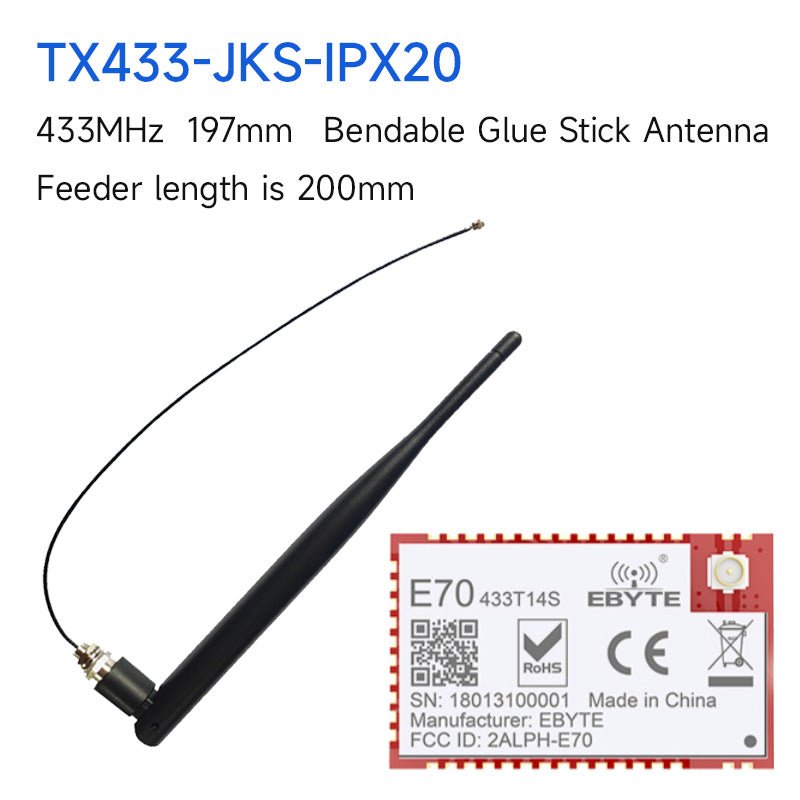

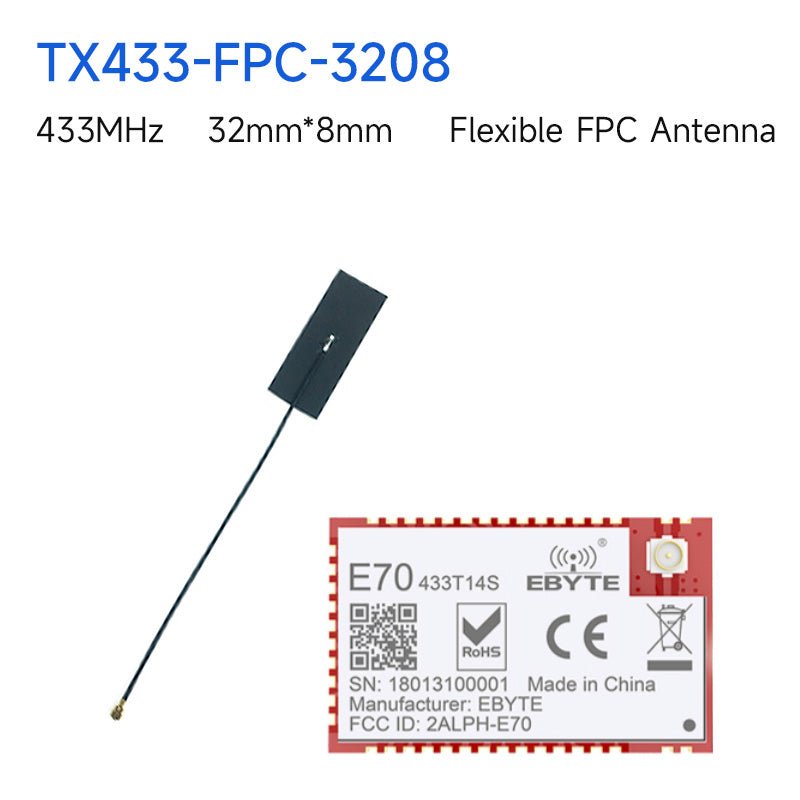

Antenna type |
IPEX / Stamp hole |
|
|
Communication interface |
UART |
Baud rate: 1200~115200, default: 9600 |
|
Package |
SMD |
|
|
Buffer |
2048 bytes buffer |
Defined by user |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
2.1 | 3.3 | 3.8 | V | |
| Communication level | - | 3.3 | - | V | |
| Transmitting current |
- | 27 | - | mA | 14dBm（25mW） |
| Receiving current |
- | 8 | - | mA |
|
| Sleep current |
- | 1 | - | μA | |
| Operating temperature |
-40 | 20 |
+85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
+125 | ℃ |
