[Operating frequency]：315/433.92MHz
[Transmitting power]：12dBm
[Communication distance]： 0.21km
[Product size]：12.0*7.5*2.0mm
[Product weight]：1.85g

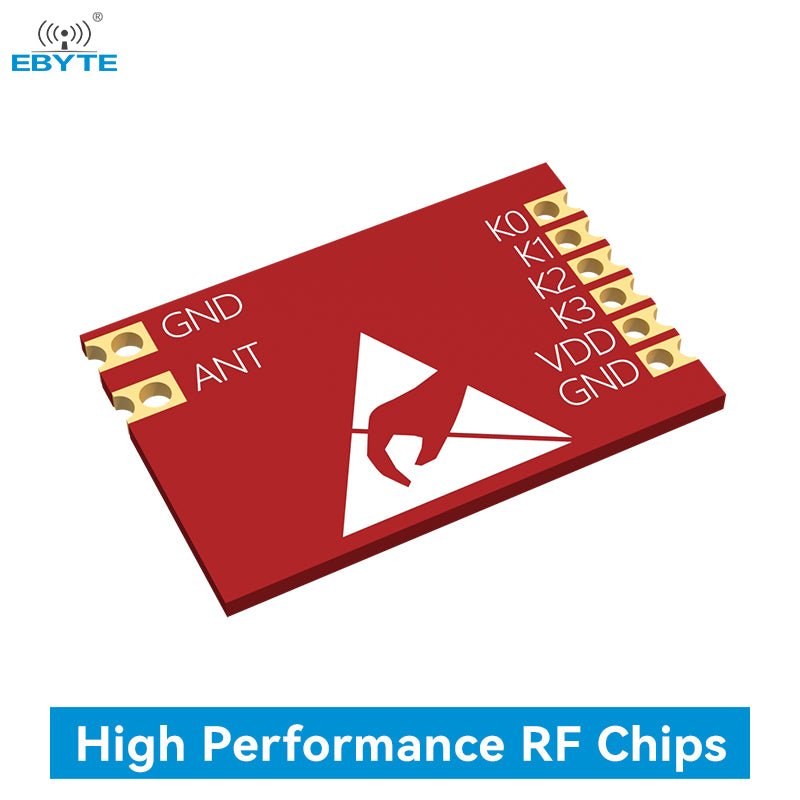

[Introduction]：E160-TxMS1 is an extremely low-cost OOK/ASK modulation 315MHz/433.92MHz wireless transmitter module developed by Ebyte. It uses high-performance RF chips and narrowband matching networks to improve harmonic suppression capabilities. It has small size, low power consumption, high performance, wide voltage, and high power. It has passed FCC and CE certification and is suitable for button battery power supply. It is suitable for small home appliance remote control, toy remote control, access control system remote control, tire pressure detection system, wireless data transmission and other application scenarios.
[Operating frequency]：315/433.92MHz
[Transmitting power]：12dBm
[Communication distance]：0.21km
[Product size]：12.0*7.5*2.0mm
[Product weight]：1.85g
[Introduction]：E160-R4MS1 heterodyne receiver module, developed by EBYTE, is a low-cost OOK/ASK modulation 315MHz/433.92MHz wireless receiver. It features a high-performance RF chip with built-in image rejection, excellent anti-interference, and precise weak signal detection. With a compact size, low power consumption, high sensitivity, wide voltage range, and strong protection, it is FCC and CE certified and suitable for coin cell battery power. Ideal for applications in remote controls for small appliances, toys, access control systems, tire pressure monitoring systems, and wireless data transmission.
| Electrical parameters | minimum value | Typical value | maximum value | Remark |
| Working voltage (V) | 1.8 | 3.3 | 3.6 | ≥3.3V can guarantee the output power. If it exceeds 3.6V, there is a risk of burning. |
| Communication level (V) | - | 3.3 | - | There is a risk of burning when using 5V TTL. Please use the conversion circuit reasonably. |
| Emission current (mA) | 15 | 16 | 17 | @3.3V, instantaneous power consumption |
| Receive current (mA) | - | - | - | The transmitting module has no receiving current |
| Sleep current (μA) | - | 0.01 | - | When not transmitting data (transmitting state), it is sleeping |
| Working temperature (℃) | -40 | - | 120 | Industrial grade design |
| Working humidity (%rh) | 10 | - | 90 | - |
| Storage temperature (℃) | -65 | - | 150 | - |
| Hardware parameters | Parameter value | Remark |
| Crystal frequency (MHz) | 13.56 | - |
| Module size (mm) | 12.0*7.5*2.0 | length*width*height |
| Antenna form | stamp hole | - |
| Communication interface | GPIO | Communication level 1.8 ~ 3.6V, it is recommended to use 3.3V to ensure data reliability |
| Packaging method | Patch/stamp hole | The pin spacing is 2.54mm. Please see Chapter 3 for detailed size information. |
| Weight(g) | 1.85 | - |
| RF parameters | Parameter value | Remark |
| Working frequency (MHz) | 315/433.92 | - |
| Modulation method | ASK/OOK | Amplitude Keying/On/Off Keying |
| Blocking power (dBm) | - | The transmitting module does not have this parameter |
| Maximum transmit power (dBm) | 12.0±1.0 | When the supply voltage is 3.3V |
| Harmonic suppression (dBc) | >40 | @433MHz, 12dBm, second harmonic |
| Transmission rate (kbps) | 0.5 ~ 40 | Determined by software programming pulse width timing |
| Frequency deviation (MHz) | ±0.05 | - |
| Antenna impedance (Ω) | 50 | - |
| Reference communication distance (m) | 210 | When used in conjunction with E160-RxMS1, in a clear and open environment, the antenna gain is 1.5dBi and the height is 2m. |
