GQ12-120100-HG Product Details

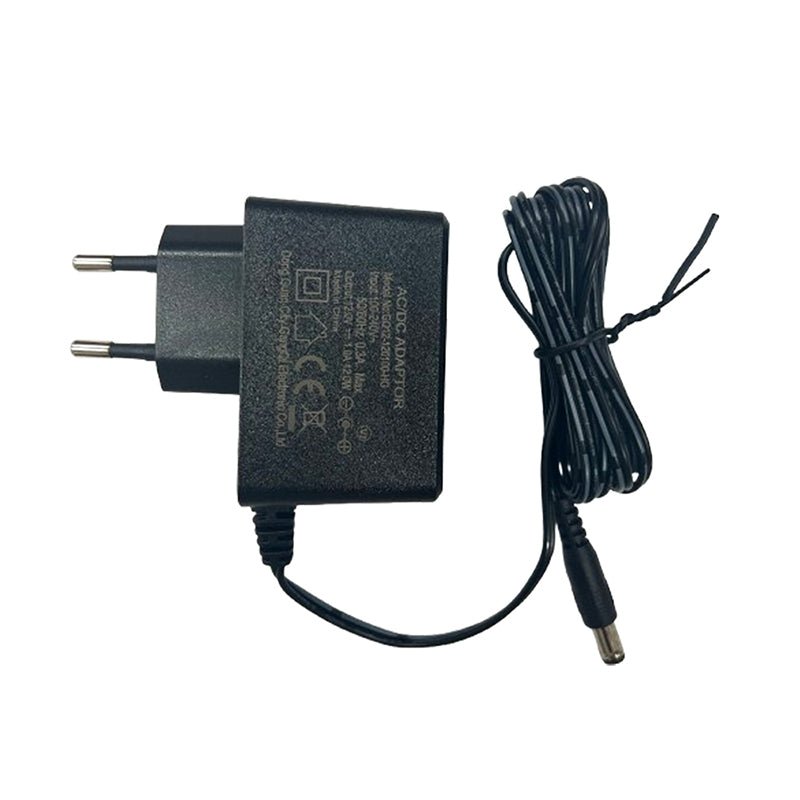

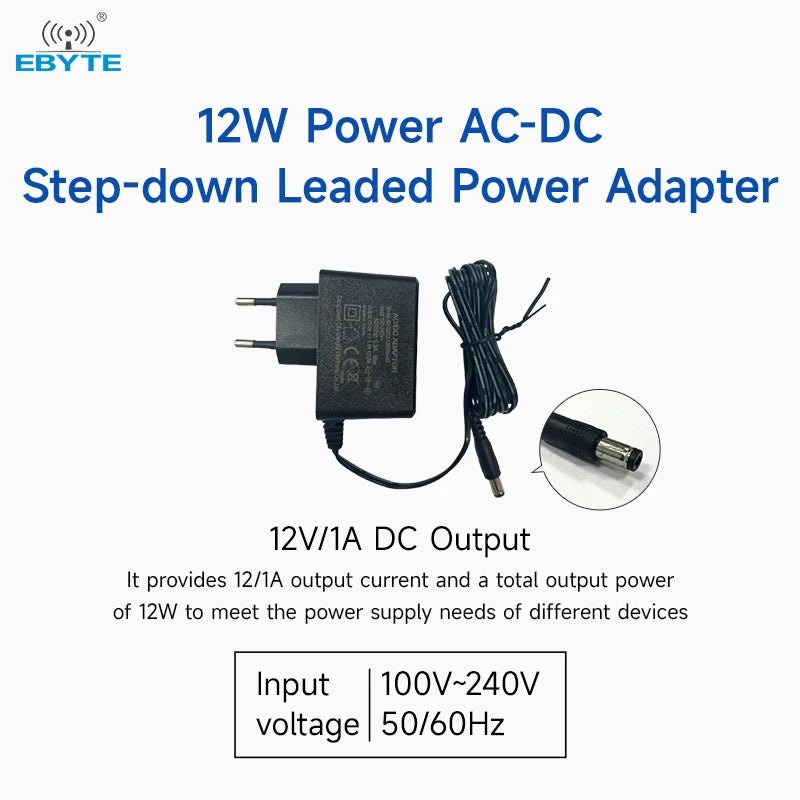

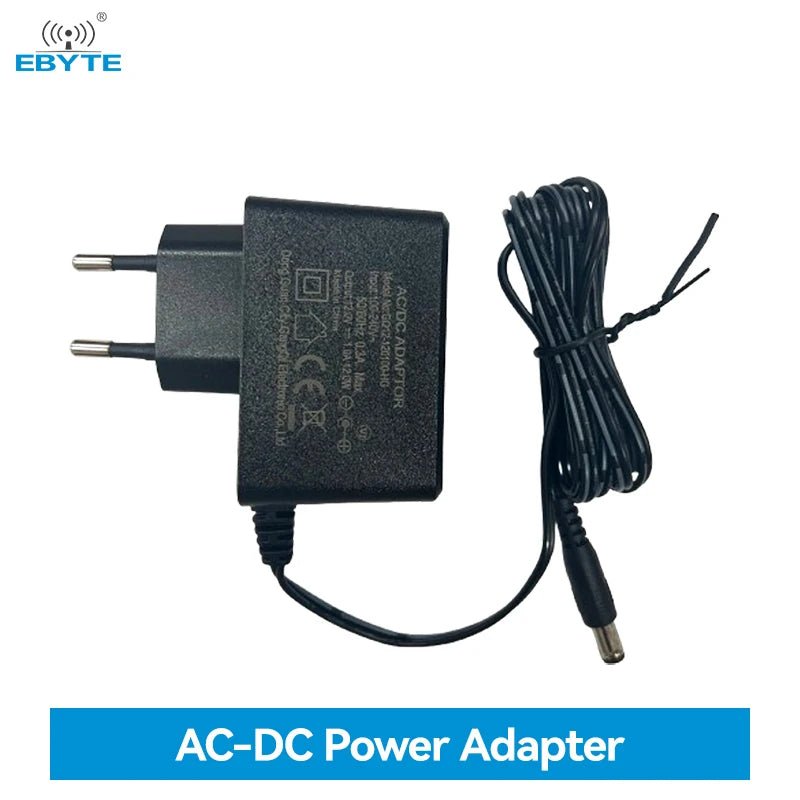

GQ12-120100-HG Compact 12W Universal Input Switching Power Supply, 12V/1A step-down adapter with 100-240V AC input range and full protection features for industrial/commercial applications.
- Universal AC Input - Operates from 90-264V AC (47-63Hz)
- High Efficiency - 77.75% average efficiency at 115/230V input
- Ultra-Low Standby Power - ≤0.3W no-load consumption
- Comprehensive Protection - Overcurrent, short-circuit, and surge protection (40A@100V, 50A@240V)
- Wall-Mount Design - Space-saving form factor (60.6×29×40mm)
Technical Specifications
- Output: 12V DC ±5% @ 1A max (12W)
- Ripple Noise: ≤200mVp-p at full load
- Inrush Current: 40A peak (100VAC), 50A peak (240VAC)
- Hold-up Time: ≥3ms at 100-240V input
- Connector: 5.5×2.1mm barrel plug (center positive)
- Safety Standards: CE certified
- Operating Temp: 0°C to +40°C ambient
Protection Features
- Overcurrent protection (1.1-2× rated current)
- Output short-circuit protection with auto-recovery
- Input fuse protection
- Output overvoltage clamp
Typical Applications
- Network equipment (routers, switches)
- Security cameras and access control systems
- POS terminals and kiosk displays
- LED lighting controllers
- Industrial control panels
Compliance & Certifications
- CE Marking (LVD & EMC)
- RoHS compliant
- Designed to EN 55032/55035 standards
