[Working voltage]：DC 8~28V

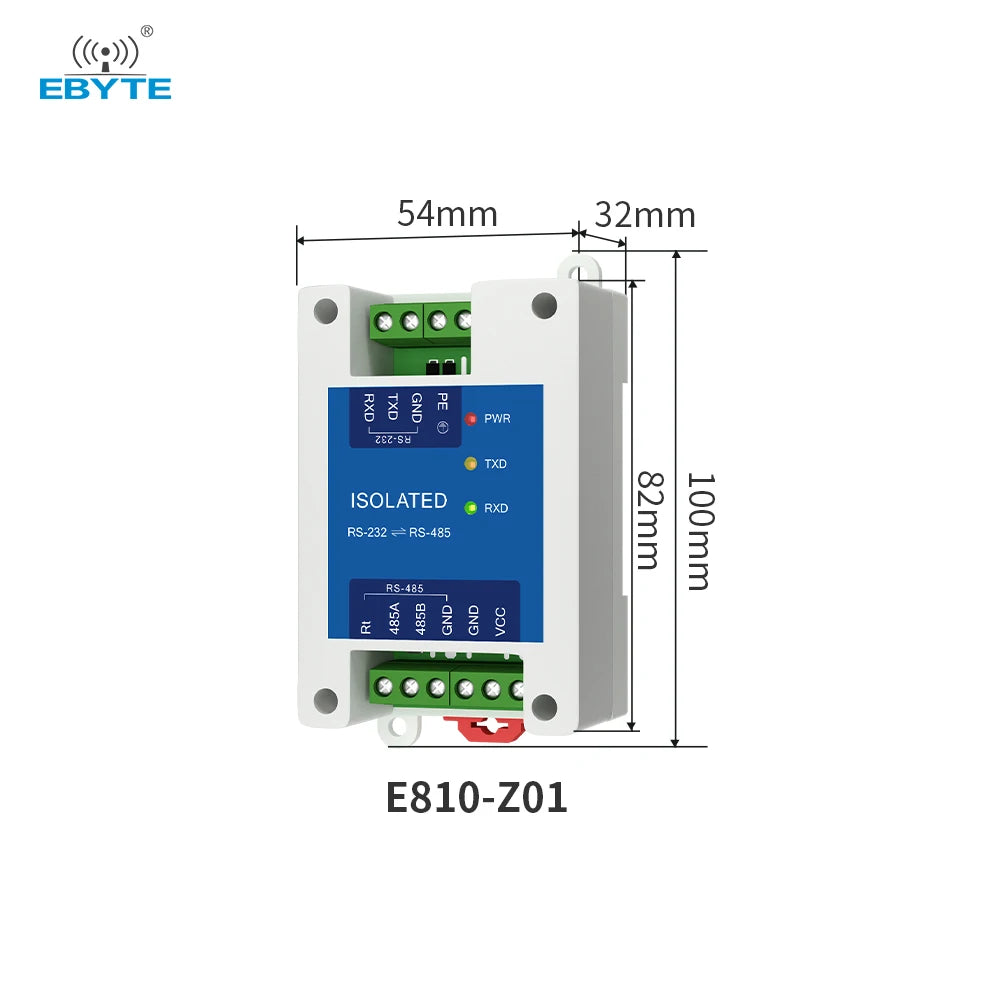

[Product size]：100*54*32mm
[Product weight]：70±5g
[Introduction]：E810-Z01 is an RS232 to RS485 isolation converter launched by Ebyte, which supports the conversion between three-wire RS232 interface and two-wire RS485 interface. Photoelectric isolation technology is used to protect both parties of communication from interference. The circuit is designed according to the EMC level 3 standard, with 2.5KV isolation voltage, electrostatic protection contact discharge 4KV, air discharge 8KV, and differential mode 1KV and common mode 2KV lightning surge protection, which can effectively isolate the damage caused by lightning and static electricity to the equipment. No configuration is required, and transparent data transmission is carried out between the master and slave interfaces. The product is suitable for integrated communication systems such as automation control systems, monitoring systems, alarms, access control systems, IC card charging, meter reading, one-card pass, parking lot charging, etc. The product is sprayed with three-proof paint, which has the functions of "anti-mold", "anti-moisture" and "anti-salt spray".
