EBYTE E32-900M20S SX1276 Lora Wireless Module 868/915MHz 5KM Long Distance SPI Low Power Consumption LoRa Spread Spectrum Module

$4.95

Shipping calculated at checkout.

[Introduction]:E32-900M20S is a self-developed, 868/915MHz LoRa TM SMD wireless module with the maximum transmission power of 1W which is based on the SX1276 produced by Semtech in the United States. Brand... Read more

Availability: In Stock

Free Gift: TI Samples $0.00, ESP32 Samples $0.00(Black Friday Only)

Shipping: Free Air Shipping Over $79.99

Ship From: China EBYTE Manufacturer Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes
Out of stock
SKU: E32-900M20SN/ATags: SX1276, 缺货产品

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $79.99 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



EBYTE product technical manual and detailed parameters download: https://www.cdebyte.com/Product-Selection

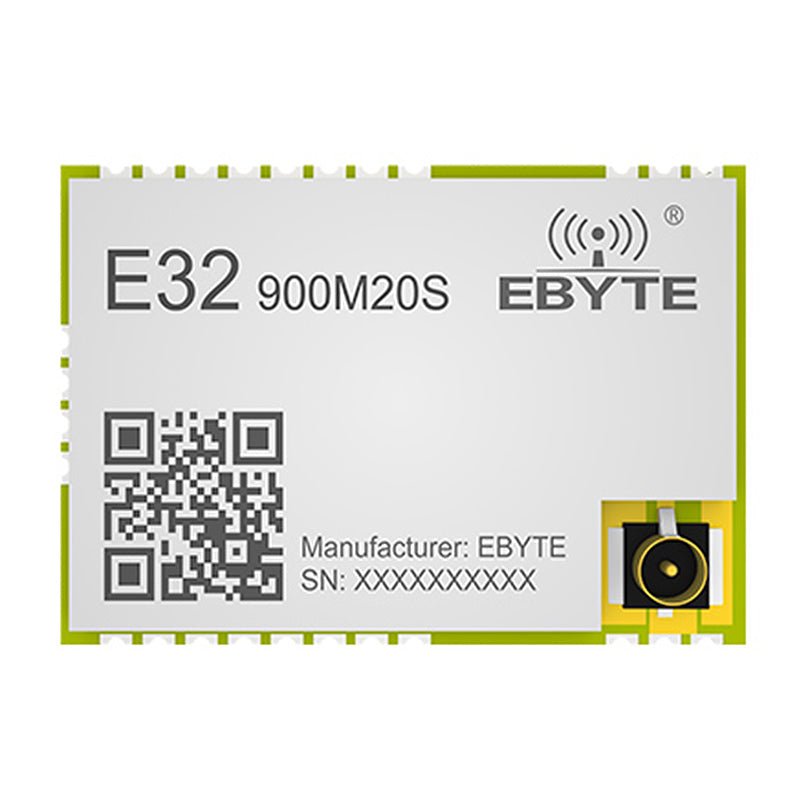

[Introduction]:E32-900M20S is a self-developed, 868/915MHz LoRa TM SMD wireless module with the maximum transmission power of 1W which is based on the SX1276 produced by Semtech in the United States.

Brand Name:EBYTE
Origin:Mainland China
Condition:New
Type:SX1276 Lora Wireless Module
Type:
Model Number:E32-900M20S
Application:SX1276 Lora Wireless Module
Application:
Package:SMD
Power supply voltage:Max:5.5V
Blocking power:Max:10dBm
Communication level:Typ3.3
Antenna:IPEX/Stamp Hole

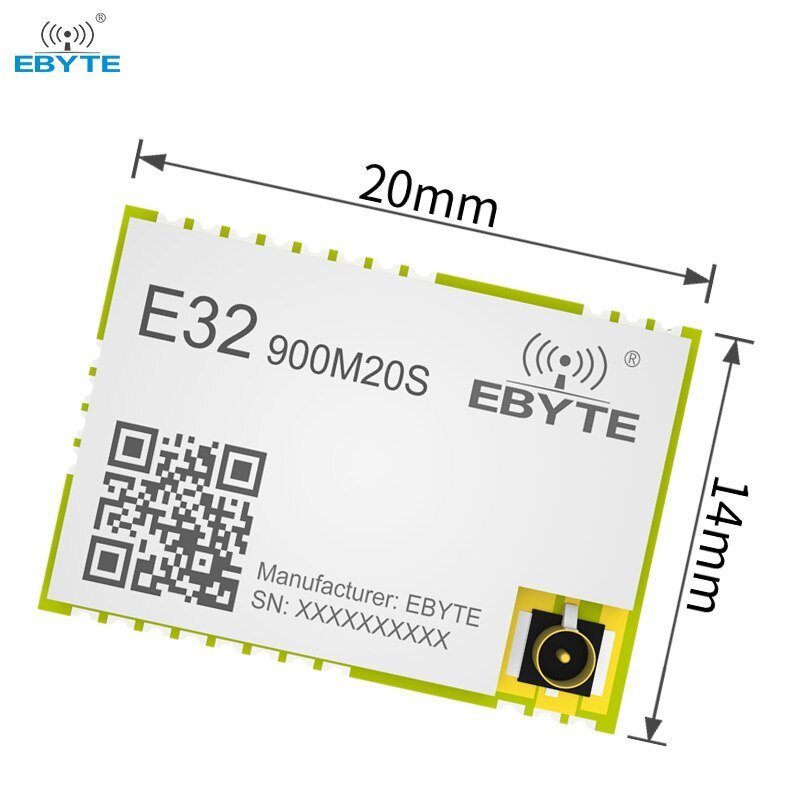

Size:14*20 mm

Main parameter Description
Remark

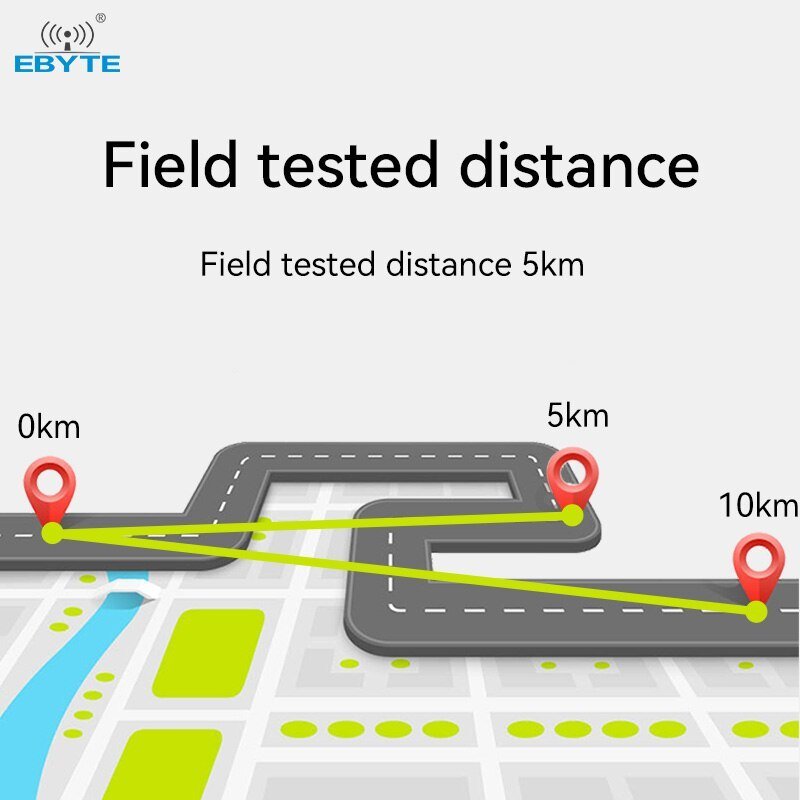

Reference distance
5Km

Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2m,air data rate: 2.4 kbps

FIFO
256Byte

Maximum length of single send

Crystal Oscillator
32MHz

Passive crystals

Protocol

LoRa

FSK/GFSK/MSK/GMSK/OOK

Package
SMD

Spacing of 2.54 mm

Interface
1.27mm

Sample hole

Communication interface
SPI

0~10Mbps

Size
14*20mm

-

Antenna
Sample hole / IPEX

50 ohm impedance



Main parameter Min Type Max Unit Remark
Operating voltage
3.3
5 5.5 V ≥5.5 V ensures output power
Communication level
- 3.3
- V
-
Operating temperature
-40
- +85

Industrial grade

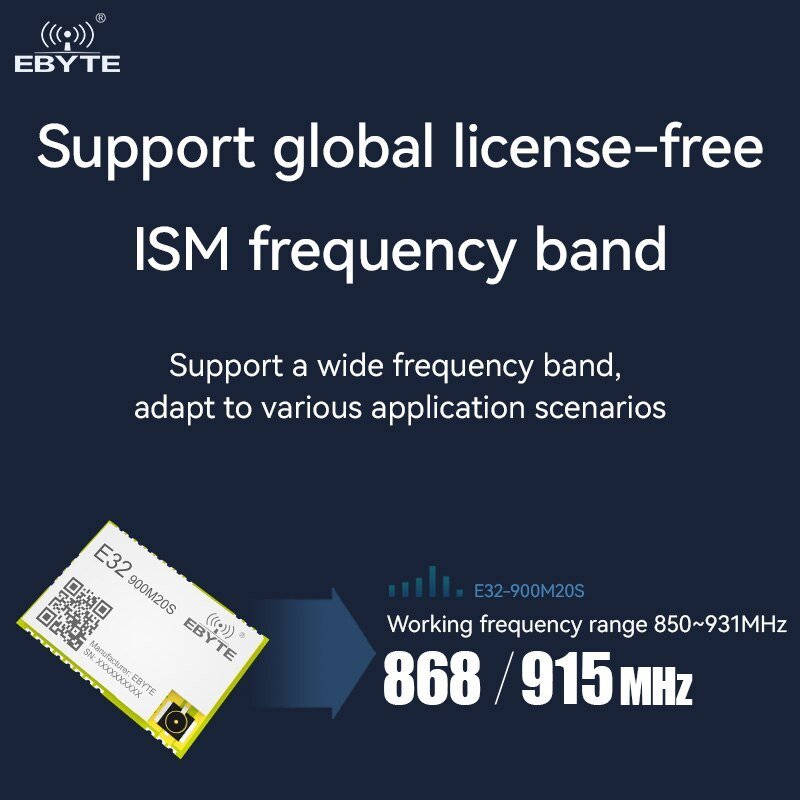

Operating frequency
850
868/915
931
MHz
-
TX current
- 650 - mA
-
RX current
- 19
- mA
-

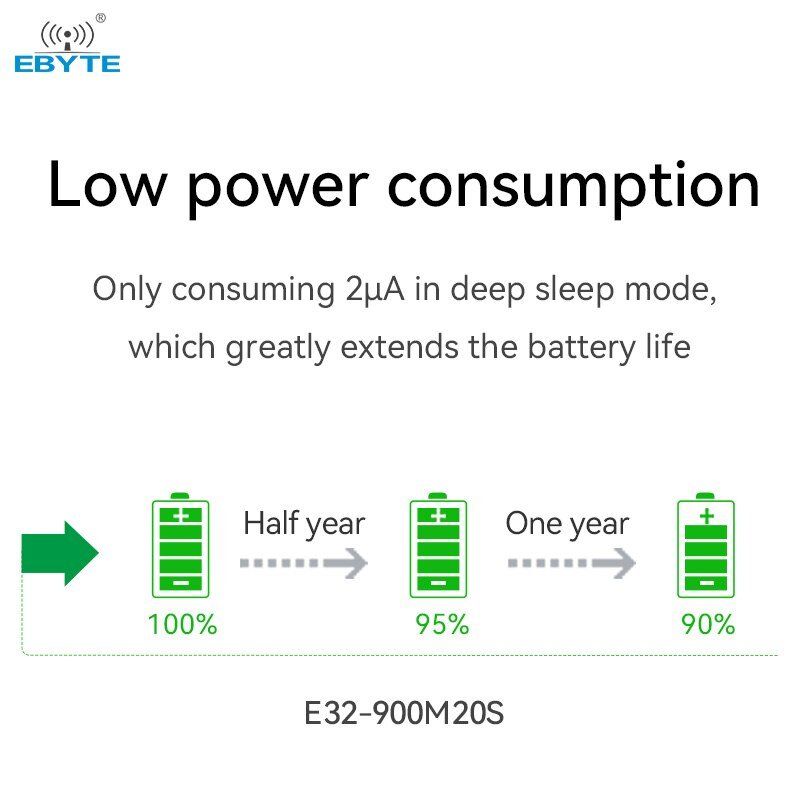

Sleep current
- 2 - μA
-
Max TX power
- 20 - dBm
-
Receiving sensitivity
-123
-124
-125
dBm
Air data rate is 1.2 kbps
