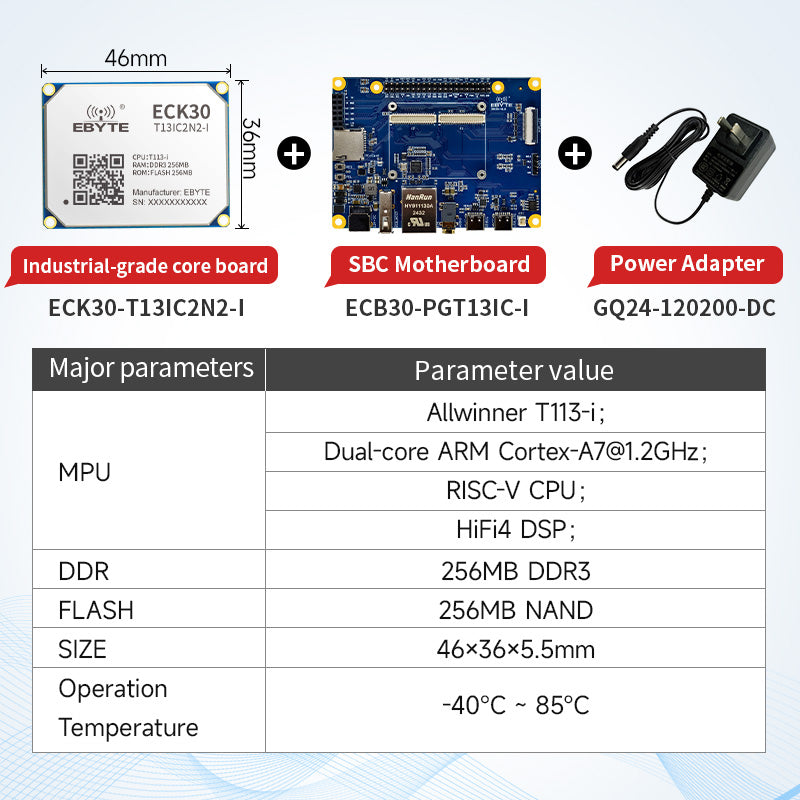

[Processor Model]:T113-i
[Processor Frequency]:1.2GHz
[Memory]:256MB
[Storage]:256MB
[Size]:46*36*5.3mm
[Product weight]:10±1g

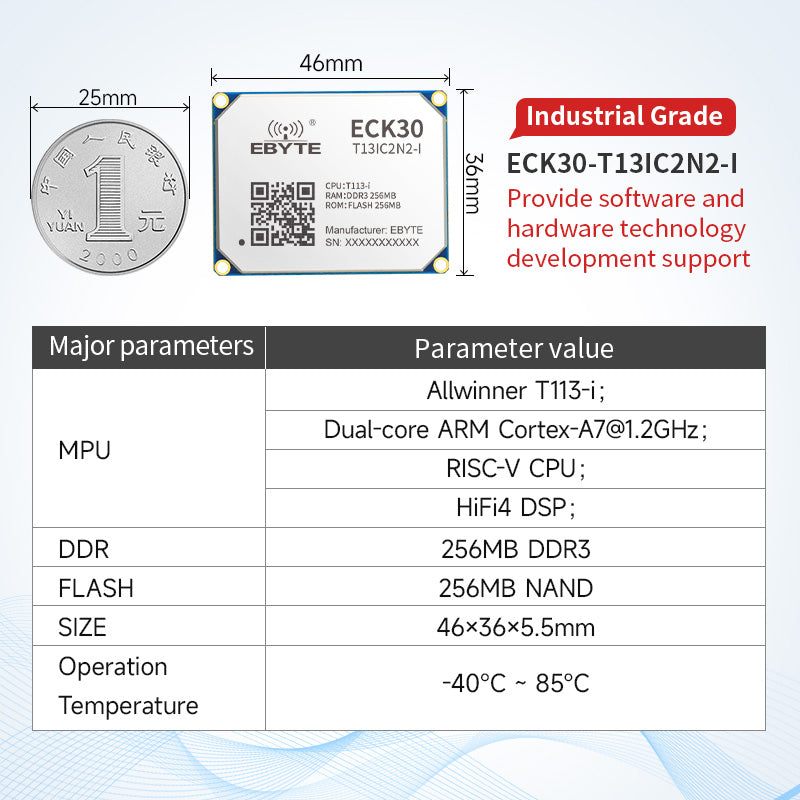

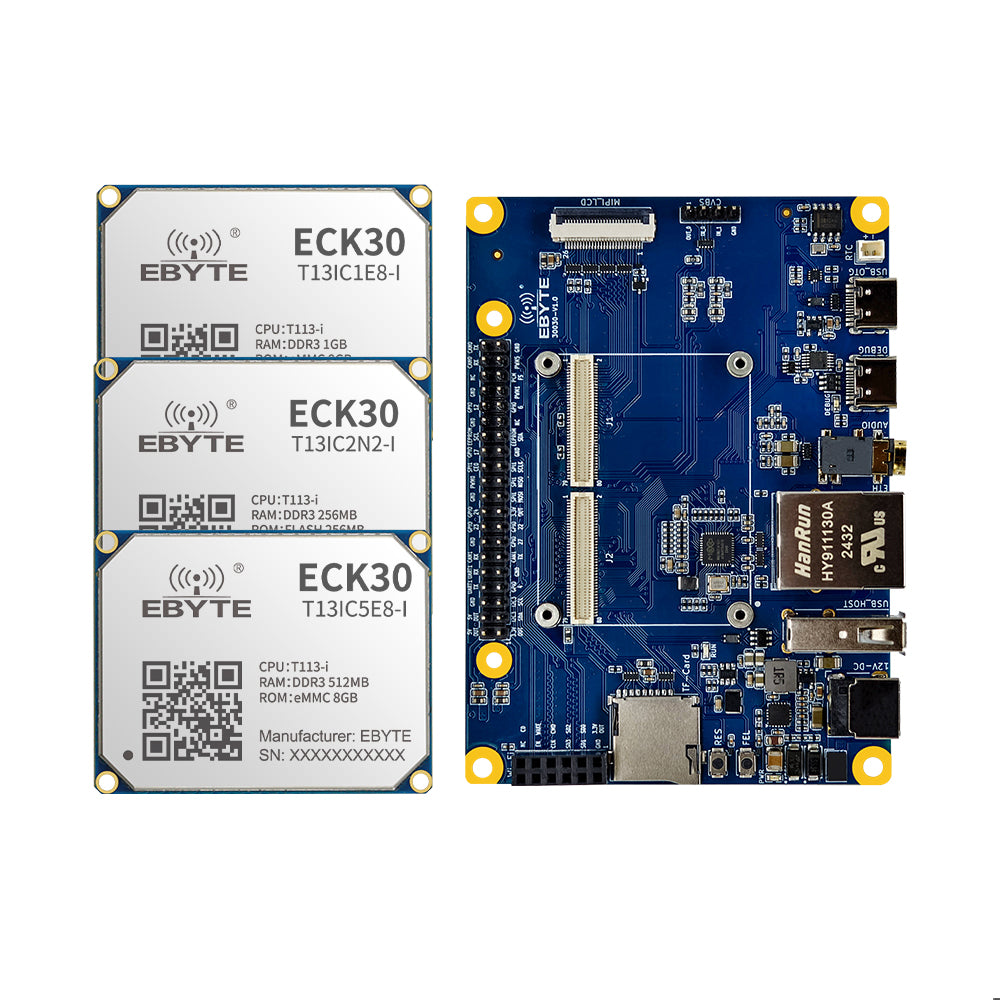

[Introduction]:Les cartes mères Ebyte de la série ECK30-T13IC sont soigneusement conçues autour du processeur T113-i d'Allwinner. Dotées d'un connecteur BTB, elles offrent un faible coût, une faible consommation d'énergie, un excellent rapport qualité-prix et une grande fiabilité. Elles sont largement utilisées dans le contrôle industriel, les IHM, l'IoT et d'autres domaines.

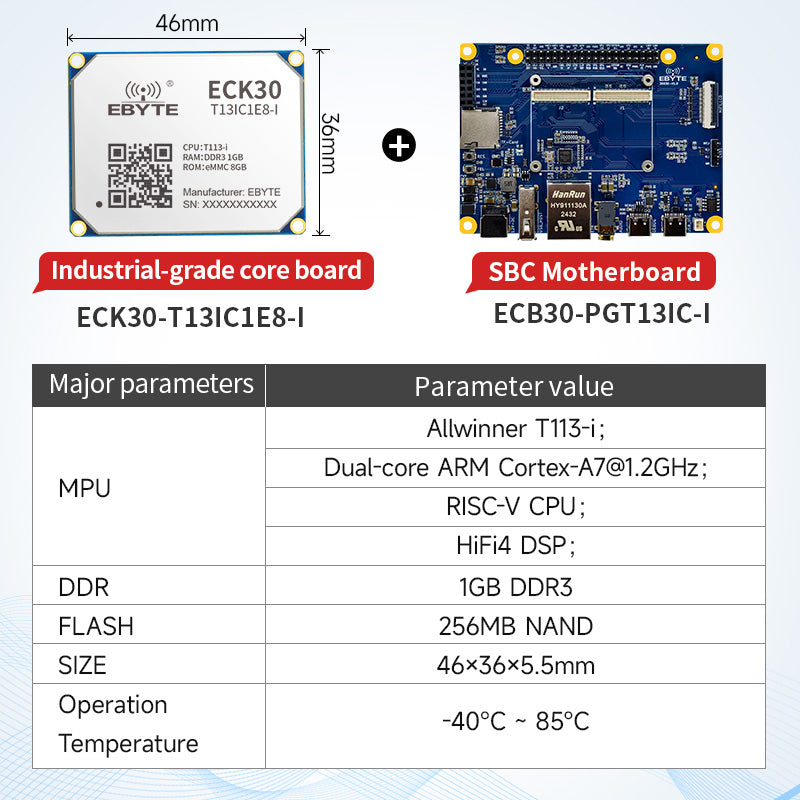

[Processor Model]:T113-i
[Processor Frequency]:1.2GHz
[Memory]:1GB
[Storage]:8GB
[Size]: 46*36*5.3mm
[Product weight]:10±1g

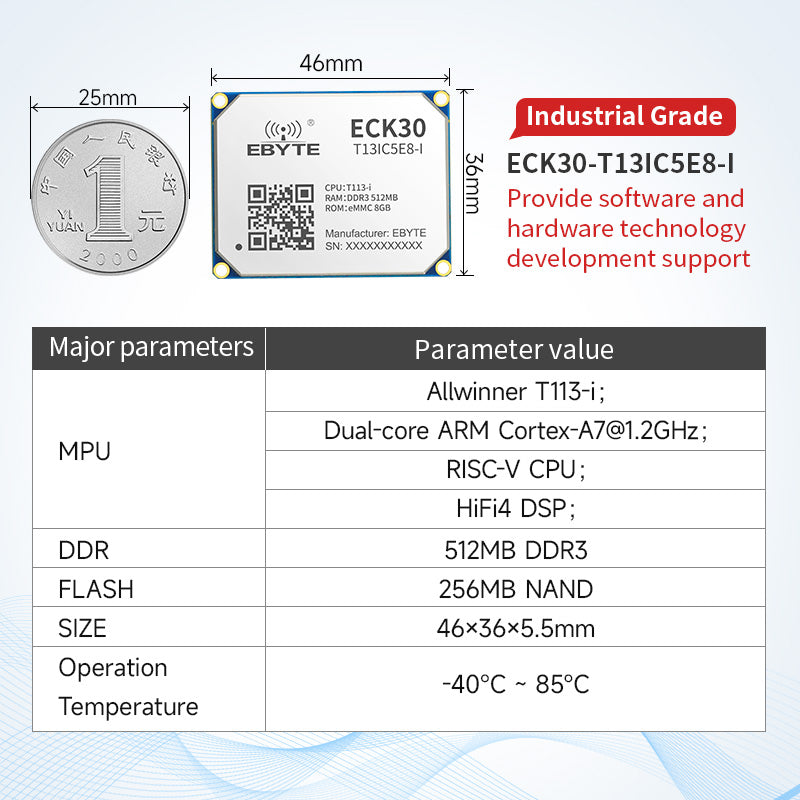

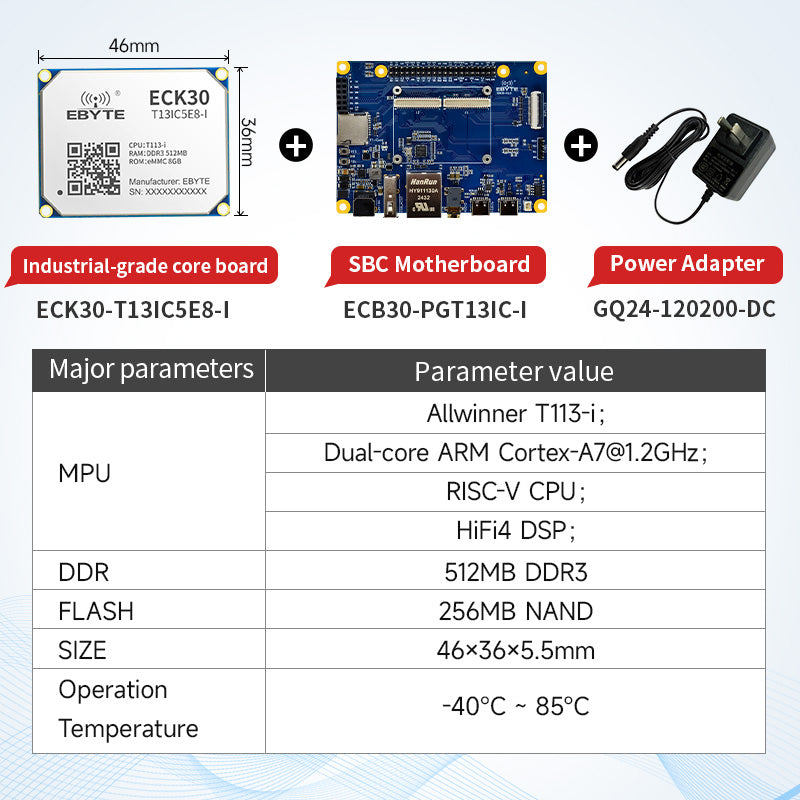

[Processor Model]:T113-i
[Processor Frequency]:1.2GHz
[Memory]: 512MB
[Storage]:8GB
[Size]:46*36*5.3mm
[Product weight]:10±1g

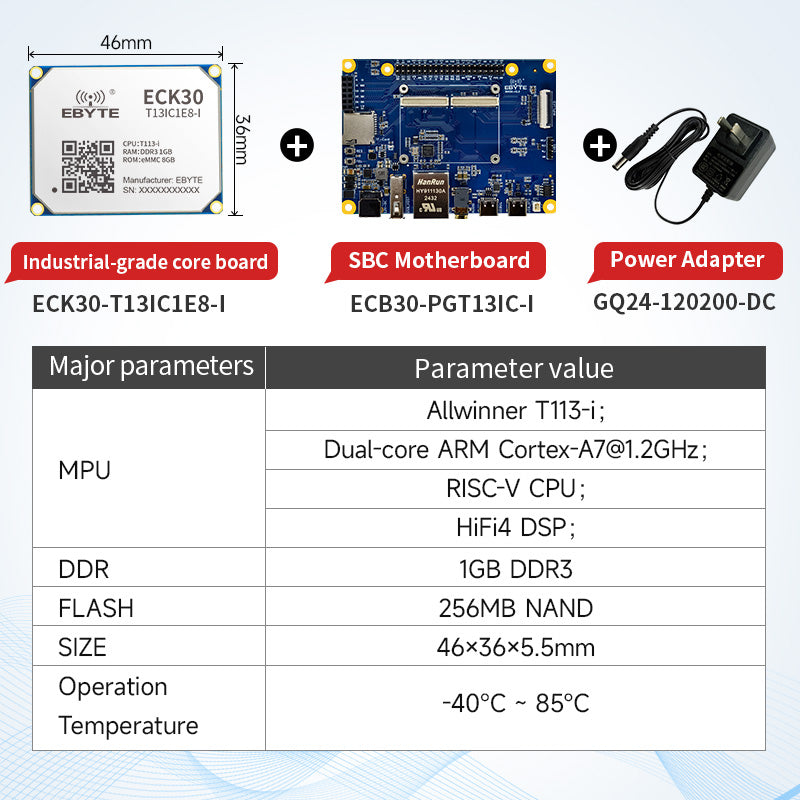

[Processor Model]: T113-i
[Processor Frequency]:1.2GHz
[Memory]:256MB/512MB/1GB
[Storage]:256MB/8GB

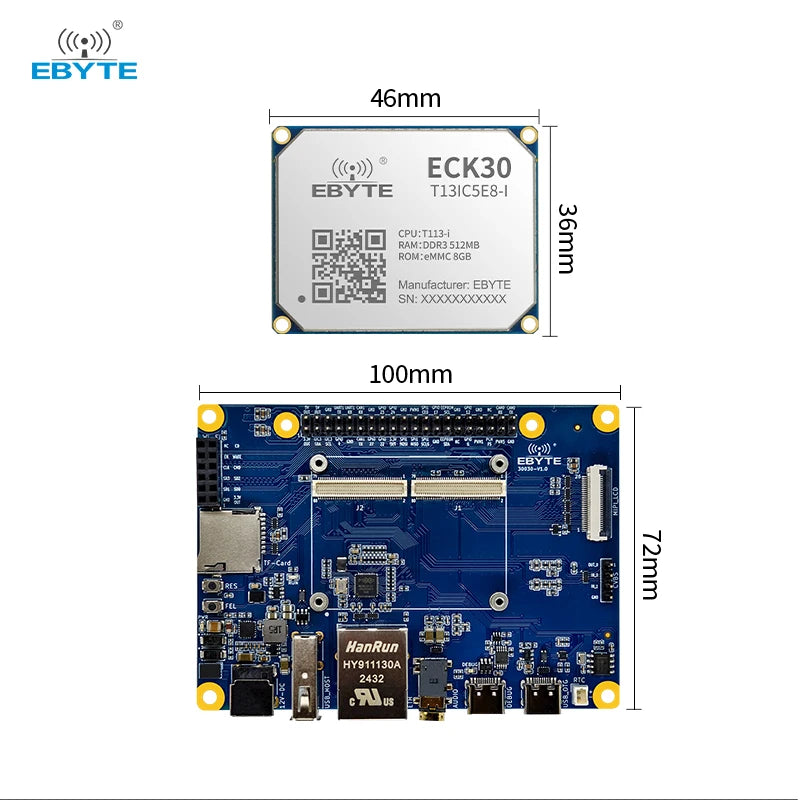

[Size]:100*72mm
[Product weight]:60± 5g

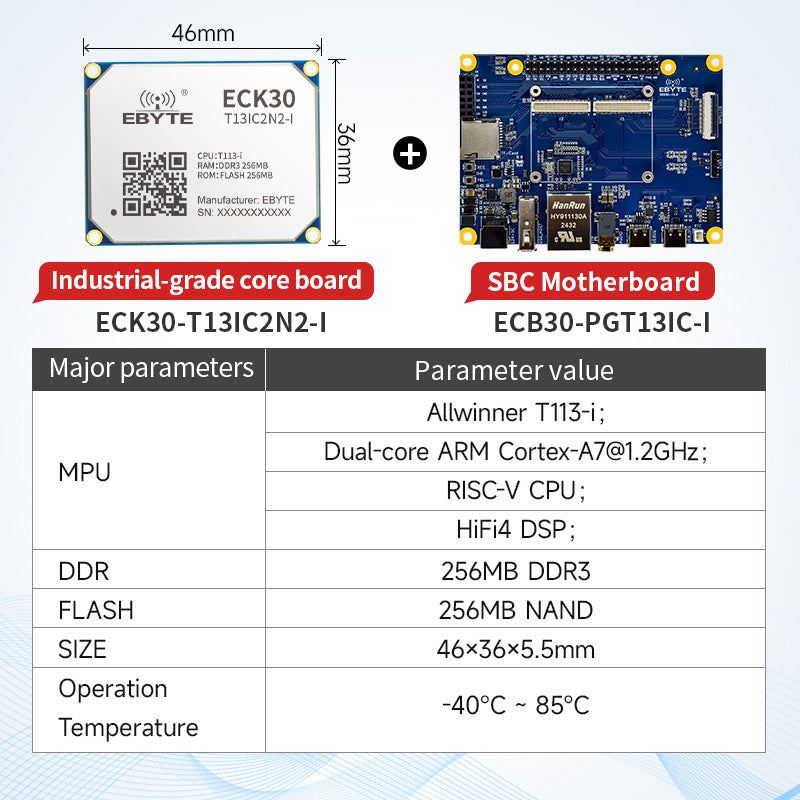

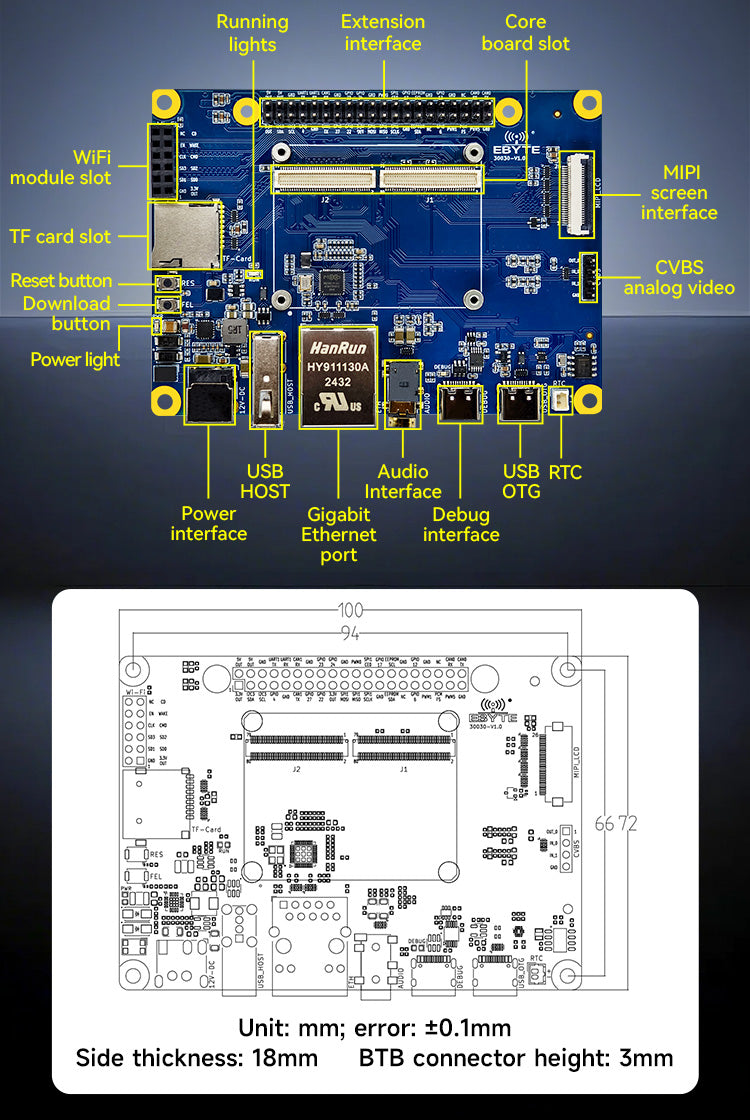

[Introduction]:Based on the ECK30-T13IC series core board, Ebyte has launched the ECB30-PGT13IC-I motherboard. The core board and motherboard are connected via a BTB connector. The motherboard features a rich set of peripheral interfaces. Its design surpasses that of standard development boards and is suitable for mass production in industrial scenarios.
Function | quantity | Functional Description |
CPU | 1 | T113-i;Dual-core ARM Cortex-A7@1.2GHz; RISC-V CPU;HiFi4 DSP; |
MEM | 1 | On-board DDR3 SDRAM, 16-bit width, 256MB/512MB/1GB optional; |
FLASH | 1 | On-board 8GB eMMC / on-board 256MB SPINAND FLASH optional; |
DISPLAY | 1 | Parallel RGB 24-bit color output, supporting up to 1920×1080@60fps; Dual-channel LVDS output, supporting up to 1920×1080@60fps; |
4-lane MIPI DSI, supporting up to 1920×1200@60fps; | ||
Note: The above display interface I/O is multiplexed and cannot be used simultaneously; Serial RGB output, supports up to 800×480@60fps; | ||
CSI | 1 | 8-bit parallel digital camera interface, supports 1080P@30fps, maximum 148.5MHz pixel clock; |
CVBS IN | 2 | 1 CVBS decoder, supporting NTSC and PAL formats, 10-bit video ADC; |
CVBS OUT | 1 | Supports NTSC and PAL formats, 10-bit video DAC; |
Audio Codec | 1 | 2-channel DAC, sampling rate 8KHz~192KHz; |
3-channel ADC, sampling rate 8KHz~48KHz; | ||
3 MIC IN, 1 LINE IN, 1 FM IN; | ||
1 differential LINE OUT, 1 headphone OUT; | ||
MAC | 1 | Support RMII/RGMII interface (10/100/1000Mbps); |
SMHC | 2 | Support SD3.0, SDIO3.0, MMC5.0 protocols; |
SDC0: 4-bit data bus (recommended as baseboard Micro SD function); | ||
SDC1: 4-bit data bus; | ||
Note: SDC2 is not brought out to the BTB connector and is used to connect the eMMC or FLASH storage chip on the board; | ||
USB DRD | 1 | Comply with USB2.0 standard, support USB HOST and USB Device functions; |
USB HOST | 1 | Comply with USB2.0 standard and support USB HOS function; |
TWI(I2C) | 4 | Support standard mode (100Kbps) and high-speed mode (400Kbps); |
SPI | 1 | Supports SPI mode and DBI (Display Bus Interface) mode; supports Master Mode, Slave Mode, 1 chip select signal; supports up to 100MHz operating frequency; |
UART | 6 | Maximum baud rate of 4Mbps (64MHz APB clock), supporting hardware or software flow control; |
PWM | 8 | 0~100% adjustable duty cycle, supports output and input capture, output frequency is 0~24MHz or 100MHz; |
GPADC | 2 | 12-bit SAR type A/D converter with sampling frequency up to 1MHz; |
TPADC | 4 | 12-bit SAR type A/D converter, sampling frequency up to 1MHz, supports 4-wire resistive touch screen; |
LRADC | 1 | 6-bit A/D converter, sampling frequency up to 2KHz, supports hold key and general key; |
LEDC | 1 | Supports 1024 LED serial connections, LED data transmission rate up to 800Kbps; |
PCM/I2S | 3 | Support full duplex, sampling rate 8KHz~384KHz; |
