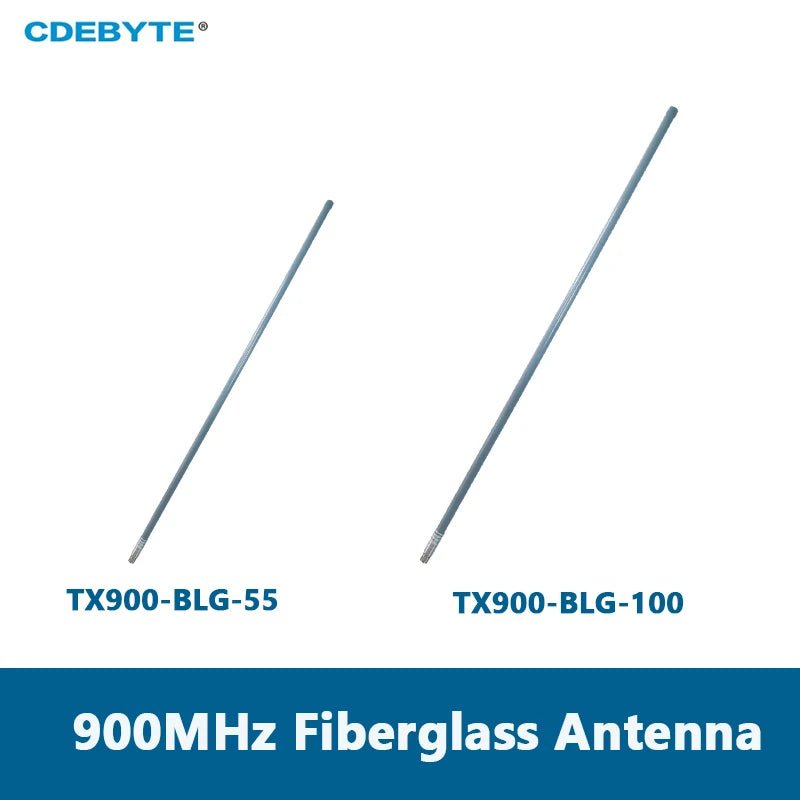

TX900-BLG-100 Fiberglass Antenna Parameter Introduction
Ebyte TX900-BLG-100 is a high-performance 868/915MHz dual-band fiberglass antenna featuring 9.5dBi gain, IP67 weatherproofing, and N-J connector for reliable long-range communication in IoT and industrial applications.
Product Features
- Dual-Band Frequency: Supports 868MHz/915MHz frequency bands
- High Gain: 9.5dBi gain for extended communication range
- Weatherproof Design: IP67-rated waterproof, UV-resistant, and anti-corrosion properties
- Premium Materials: Pure copper core with nickel plating for optimal signal transmission
- Omnidirectional Radiation: 360° coverage for versatile deployment
Full Specifications

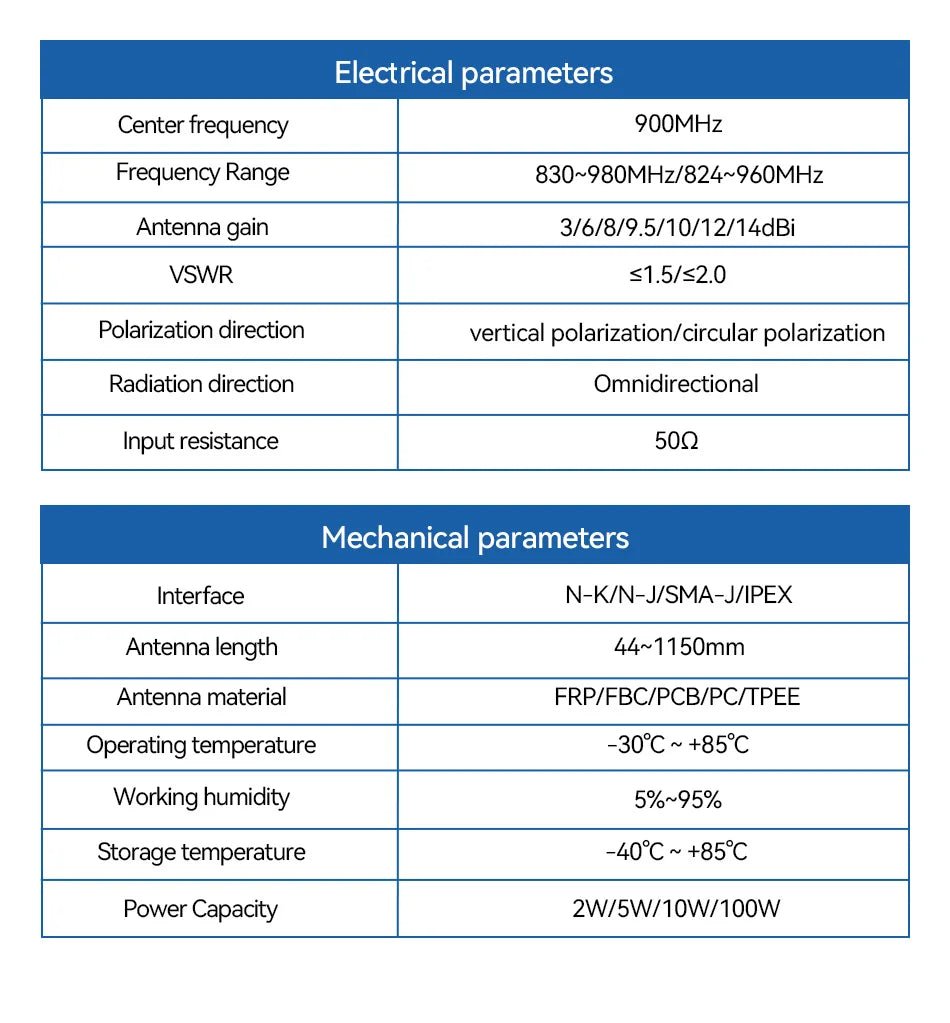

Electrical Parameters
- Frequency Range: 860-940MHz
- VSWR: ≤2.0
- Polarization: Vertical
- Impedance: 50Ω
- Power Capacity: 100W
Physical Parameters

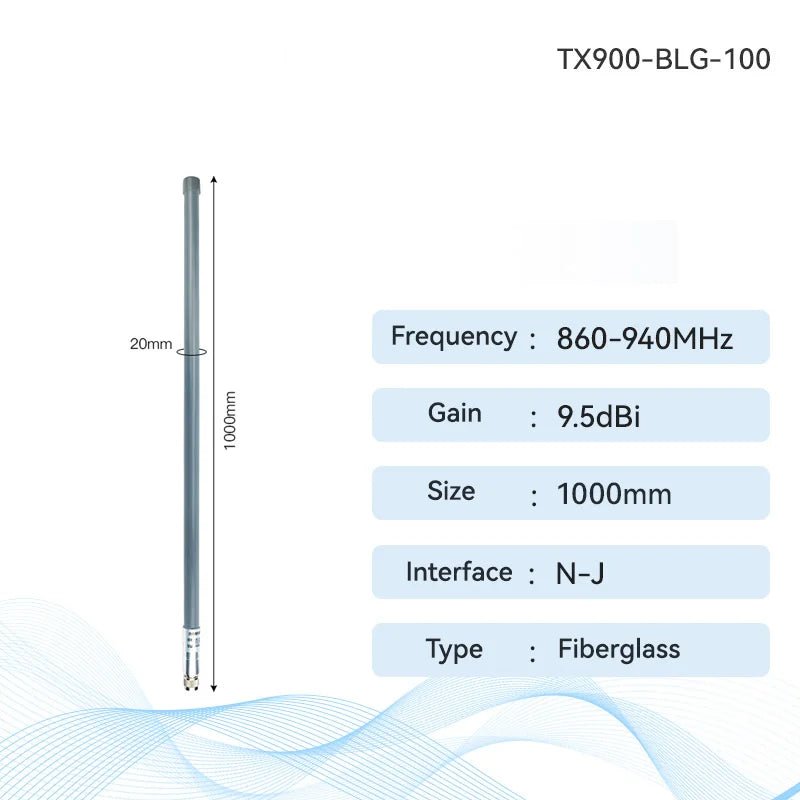

- Dimensions: 1000mm length × Φ20mm diameter
- Weight: 319g ±5g
- Connector: N-J (N-Male)
- Material: Fiberglass reinforced polymer
- Temperature Range: -40℃ to +85℃
Application Scenarios
- IoT Networks: LoRaWAN/Helium mining deployments
- Industrial Communication: Base stations and wireless gateways
- Outdoor Systems: Weather-resistant installations in harsh environments
- Long-Range Solutions: RAK wireless modules and LPWAN applications
