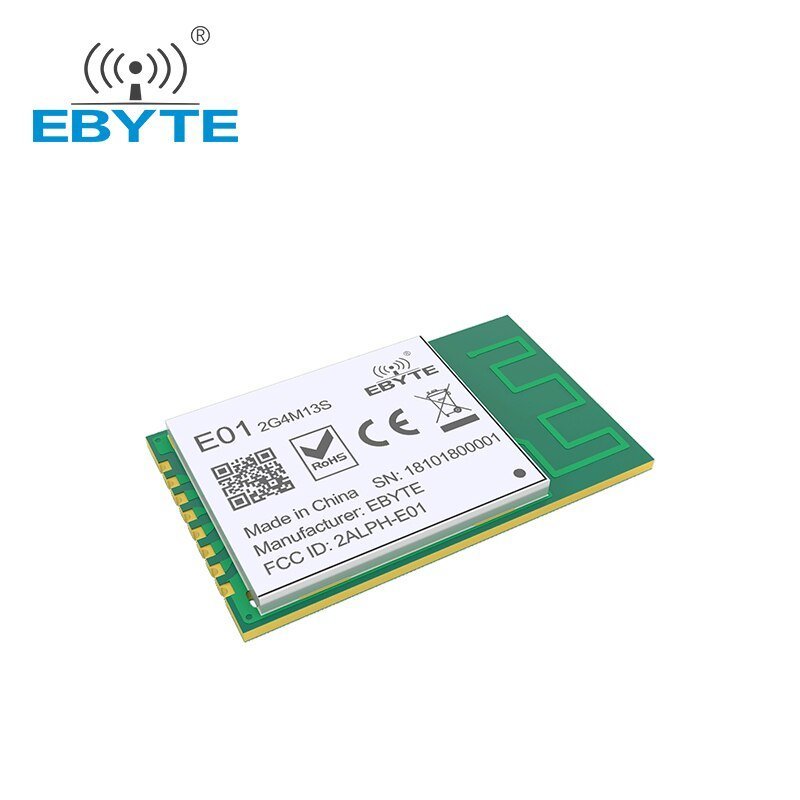

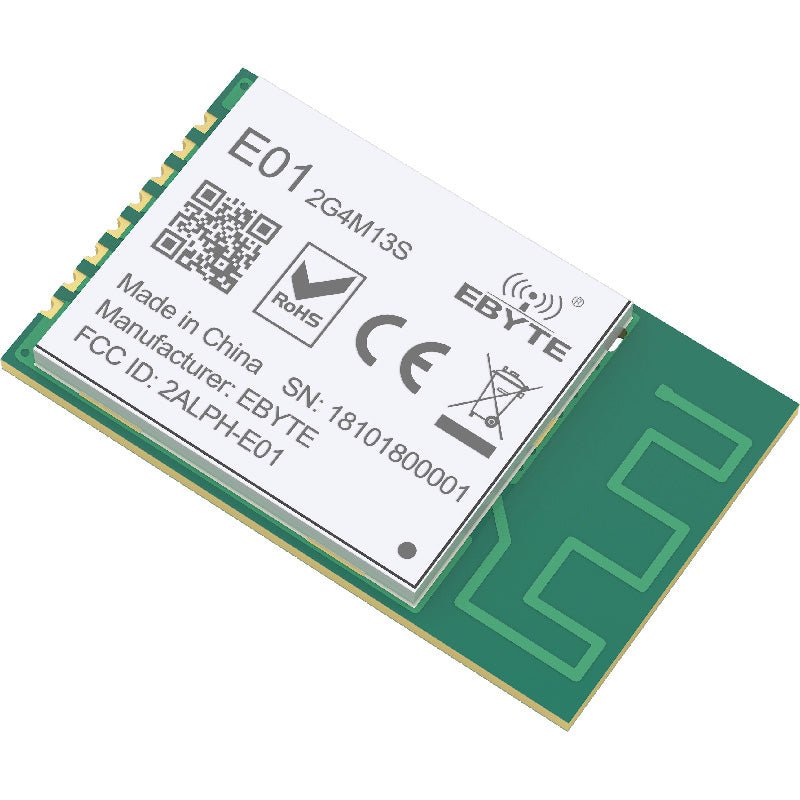

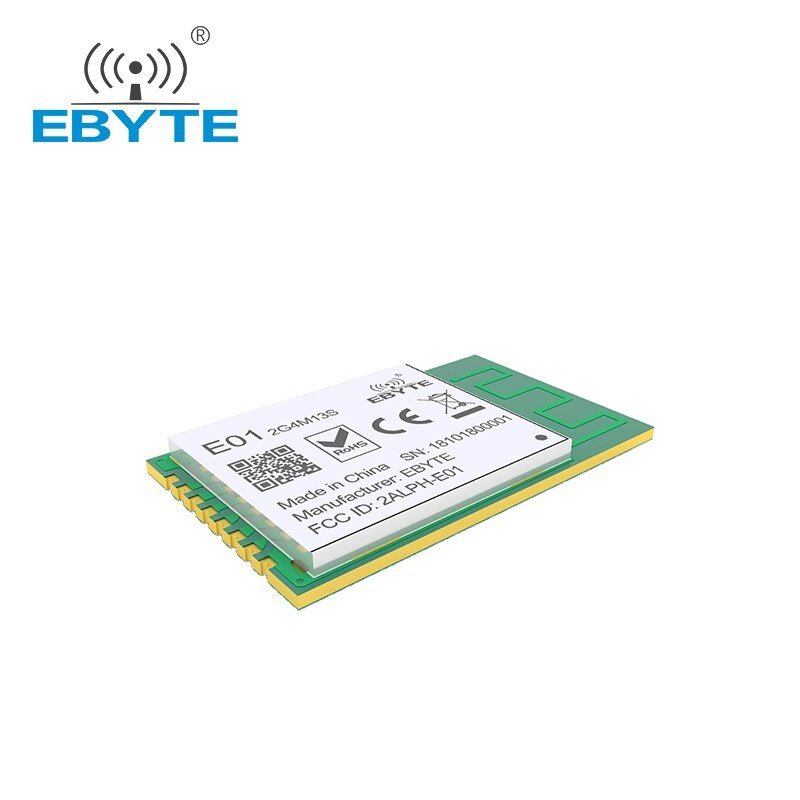

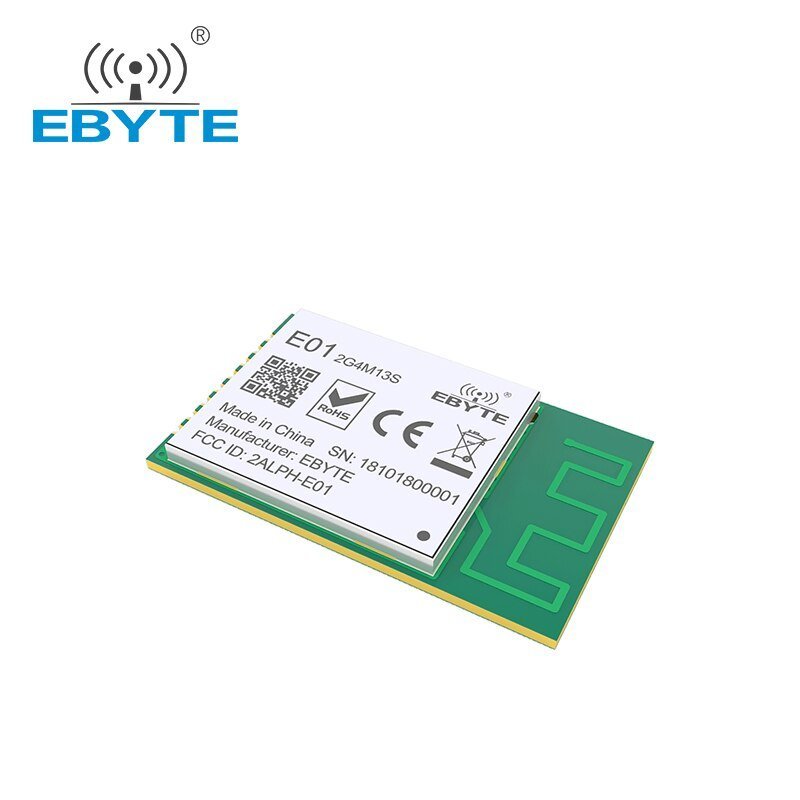

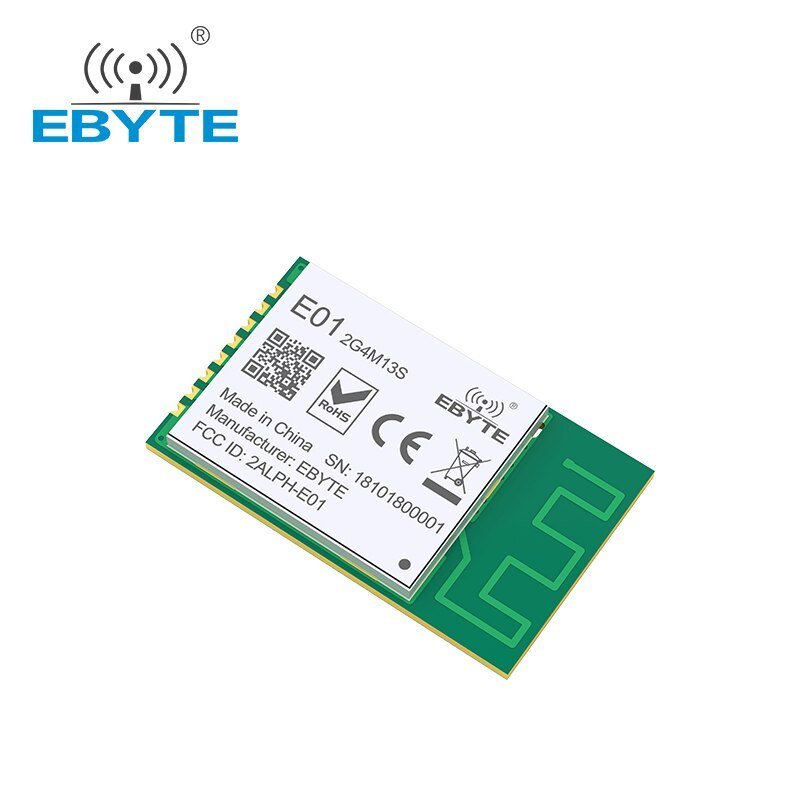

E01-2G4M13S is a SMD wireless transceiver module, operates at 2.4GHz with small-size and high air data rate (2Mbps maximum). With embedded high-performance antenna, impedance matching precision and Batch production, the module is suitable for various applications. As an industry expert, I can confidently say that the E01-2G4M13S is a SMD wireless transceiver module designed for optimal performance.
Origin: Mainland China
Condition: New
Type: Drive IC
Model Number: E01-2G4M13S
Supply Voltage: 2.0 - 3.6 V
Dissipation Power: 20mW
Operating Temperature: -40 - +85 ℃
Application: Computer
Package: SMD
Size: 20 mm
Weight: 1.2±0.1g
Frequency: 2.4~2.525GHz
Power: 13dBm
Distance: 800m
Interface: SPI
Type: Wireless Module
RF Parameter | Value |
Remark |
Working frequency |
2400~2525 MHz |
Default: 2.4GHz (16MHz oscillator) |
Transmitting power | 27 dBm |
Max. Power (500mW) |
Receiving sensitivity |
-99 dBm |
Air data rate: 250kbps |
Air data rate | 250k~2Mbps |
Default: 250kbps |
Test distance | 5000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
Hardware Parameter | Value |
Remark |
Size |
18 * 33.4 mm |
Without SMA |
Antenna type |
SMA-K |
|
Communication interface |
SPI |
|
Package |
DIP |
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply |
2.5 | 3.3 | 5.5 | V | |
Communication level | 2.0 | 3.3 | 3.6 | V | |
Transmitting current |
480 | 490 | 500 | mA |
3.3V |
Transmitting current |
380 | 390 | 400 | mA |
5.0V |
Receiving current |
22 |
23 | 24 |
mA |
3.3V |
Receiving current |
21 |
22 | 23 |
mA |
5.0V |
Sleep current |
450 |
455 | 460 | μA | |
Operating temperature |
-40 | 20 |
+85 | ℃ | |
Operating humidity |
10 | 60 |
90 | % | |
Storage temperature |
-40 | 20 |
+125 | ℃ |
