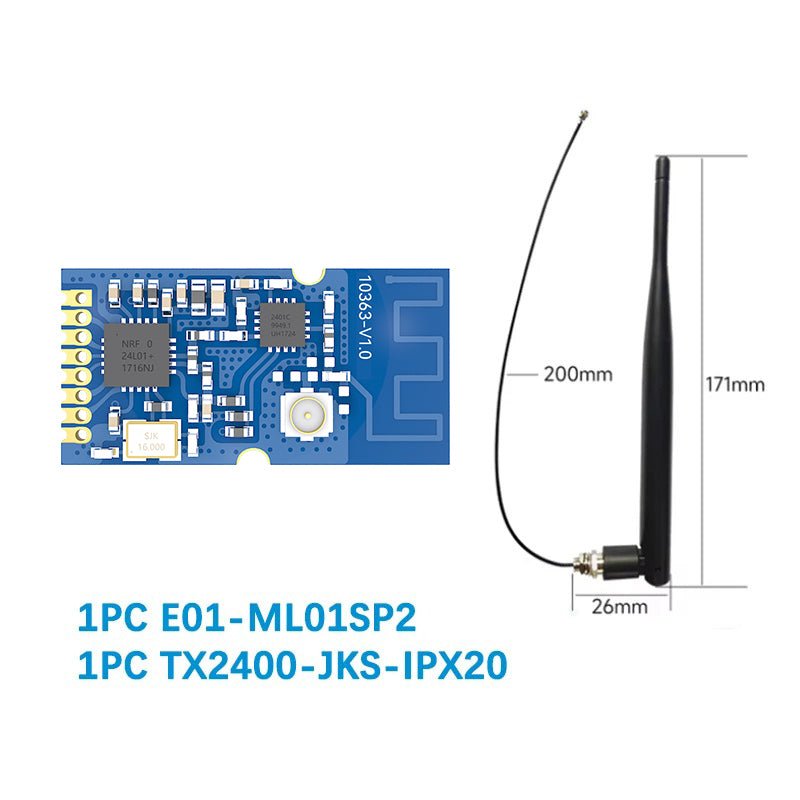

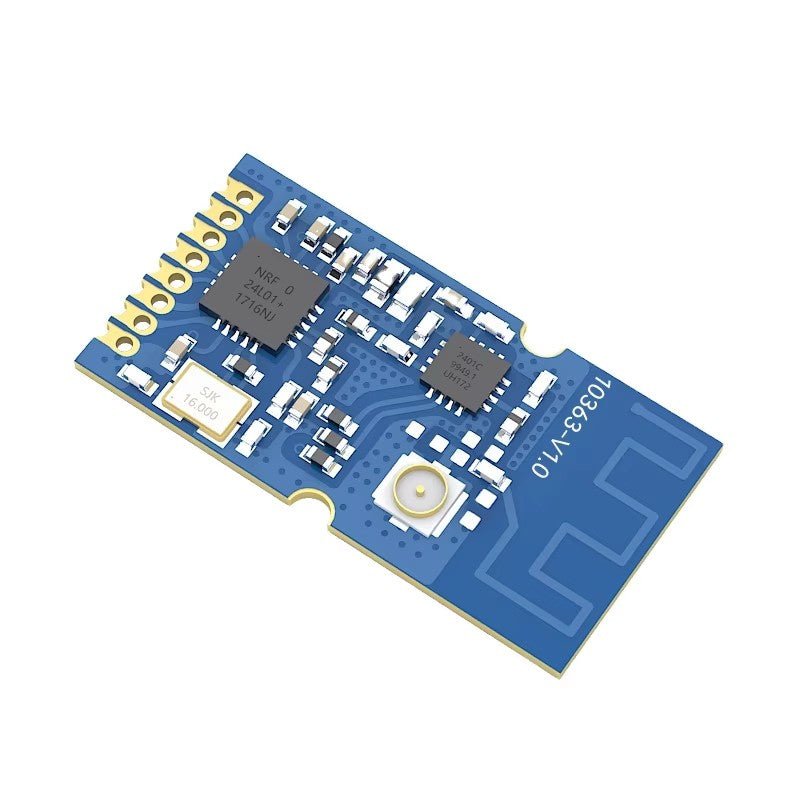

[Introduction]：E01-ML01SP2 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm). The professional hardware design allows the module features small-size, which is convenient for all kinds of embedded development.
Brand Name:EBYTE
Origin:Mainland China
Condition:New
Type:Drive IC
Model Number:E01-ML01SP2
Supply Voltage:2.0-3.6 V
Dissipation Power:100mW
Operating Temperature:-40-+85 ℃
Application:Computer
Package:SMD
IC:nRF24L01P
Power:20dBm
Distance:1.8km
Interface:SPI
Weight:0.6±0.1g
| RF Parameter | Value |
Remark |
| Working frequency |
2400~2525 MHz |
Default: 2.4GHz (16MHz oscillator) |
| Transmitting power | 20 dBm |
Max. Power (100mW) |
| Receiving sensitivity |
-96 dBm |
Air data rate: 250kbps |
| Air data rate | 250k~2Mbps |
Default: 250kbps |
| Test distance | 1500m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
| Hardware Parameter | Value |
Remark |
|
Size |
12.8 * 25 mm |
Without SMA |
|
Antenna type |
PCB / IPEX |
|
|
Communication interface |
SPI |
|
|
Package |
SMD |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
2.0 | 3.3 | 3.6 | V | |
| Communication level | 2.0 | 3.3 | 3.6 | V | |
| Transmitting current |
120 | 130 | 140 | mA | 20dBm（100mW） |
| Receiving current |
19 |
21 | 23 | mA |
|
| Sleep current |
0.5 |
1.0 | 2.0 | μA | |
| Operating temperature |
-40 | 20 |
+85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
+125 | ℃ |
