[Carrier frequency]:410~441MHz
[Transmission power]:30dBm
[Communication distance]:10km
[Air rate]:0.5~470kbps

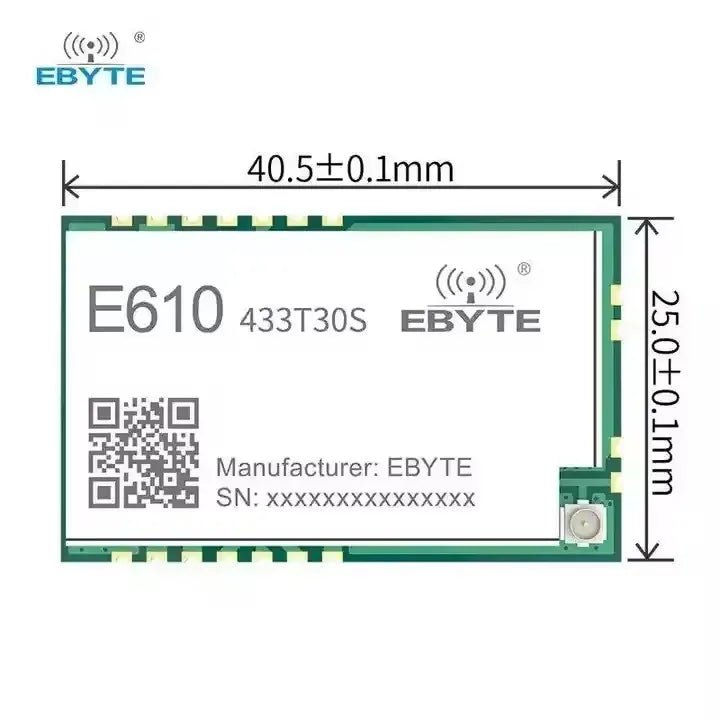

[Product size]:40.5*25.0*3.9mm
[Product weight]:5.1g±0.1g

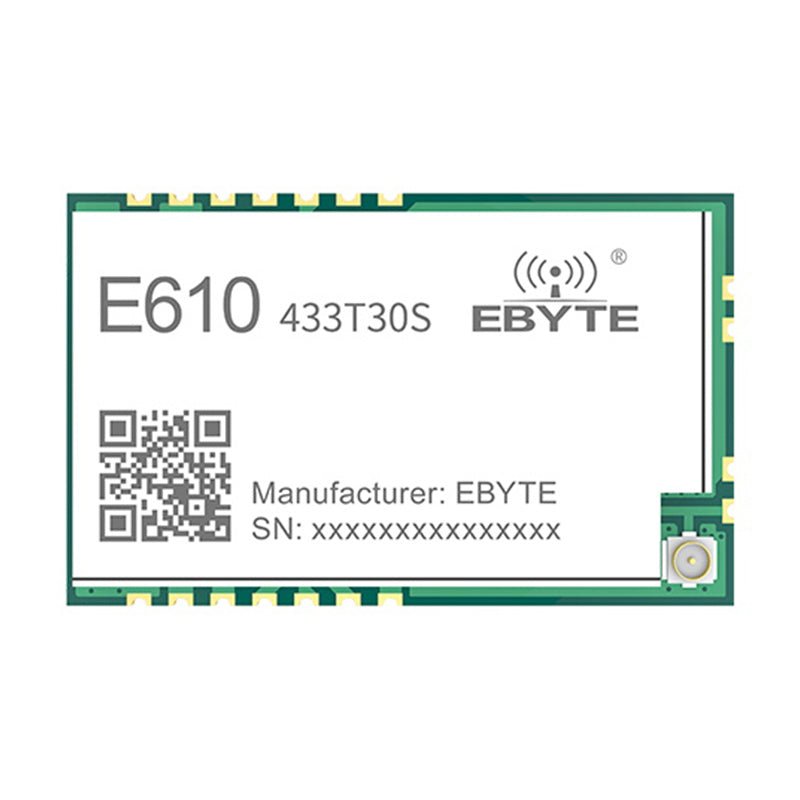

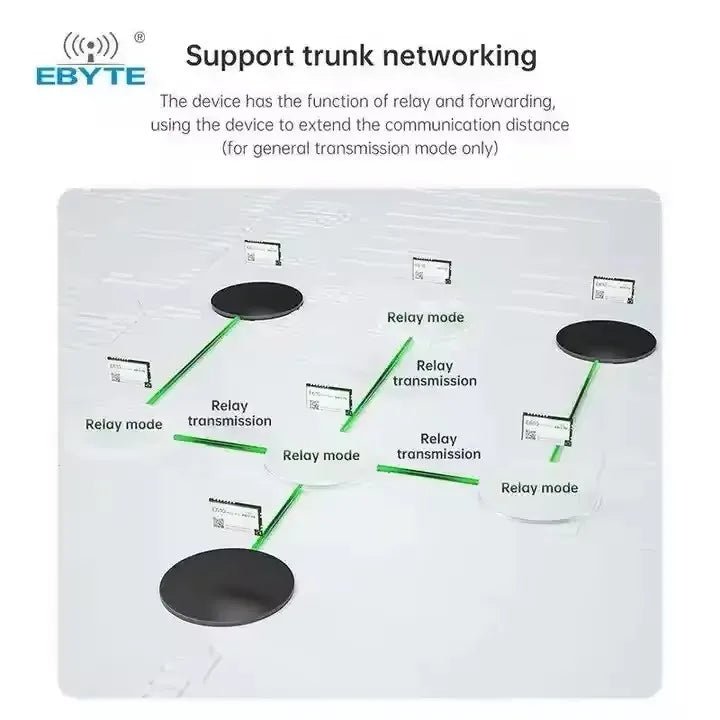

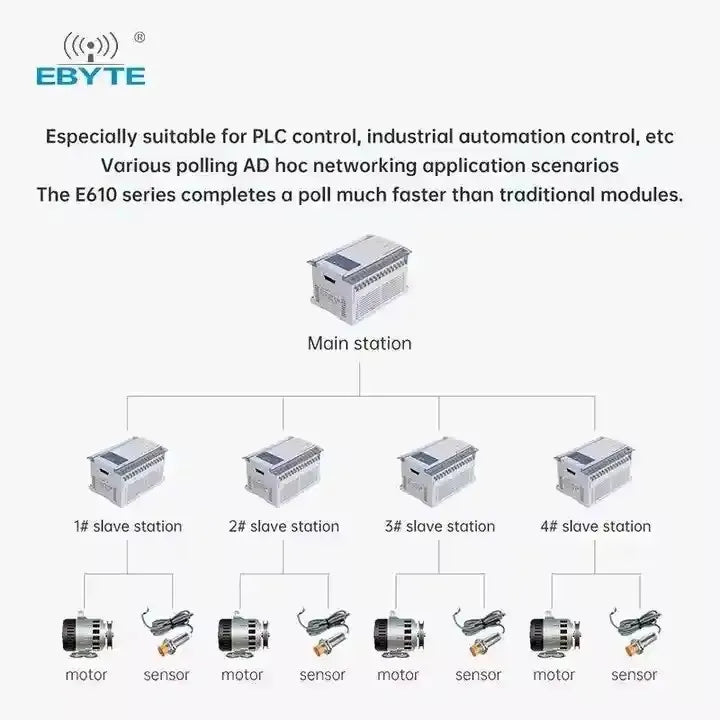

[Introduction]:E610-433TXXS product is a high speed continuous transmission type 433M wireless data transmission module developed by EBYTE, with built-in high performance microcontroller and wireless transceiver chip. It operates in the 410-441MHz frequency band (default 433MHz) and has a transmit power of 20-30dBm.
Electrical parameters |
Unit | Performance | Remark | |
E610-433T30S | E610-433T20S | |||
Operating volta |
V |
3.0 ~ 3.6 |
1.8 ~ 3.6 | ≥3.3V for guaranteed output power, exceeding 3.6V will permanently damage the module |
Communicati on level |
V | 3.3 | Risk of burn-in with 5V TTL | |
Transmitting current | mA | 1000 |
125 | Instantaneous power consumption |
Receiving current |
mA | 40 | 38 | - |
Sleeping current |
uA | 2.0 | Software shutdow | |
Operating temperature |
°C | -40 ~ +85 | Industrial | |
Storage temperature |
°C | -40 ~ +125 | Industrial |
Hardware paramete |
Unit | Description | Remark | |
E610-433T30S | E610-433T20S | |||
Packet length | byte | 55 | No limit on package length in continuous mode |
|
Cache capacity |
byte | 4096 | Seen as unlimited capacity in continuous mode |
|
Modulation method |
- |
GFSK | Gaussian frequency shift key modulation |
|
Communicati on interface |
- | UART serial port | TTL leveL | |
Serial port baud rate |
bps | 2400 ~ 230400 | - |
|
Packaging method |
- | SMD |
Stamp hole | |
PA+LNA | - | Yes | Only LAN | Power amplifier + low noise amplifier |
SAW | - | Yes | SAW filter | |

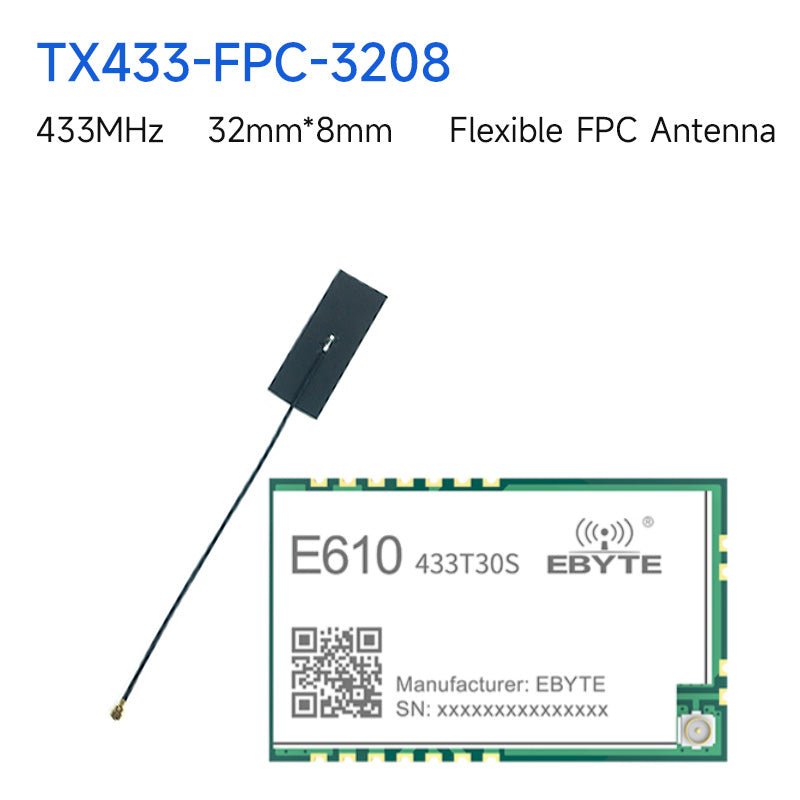

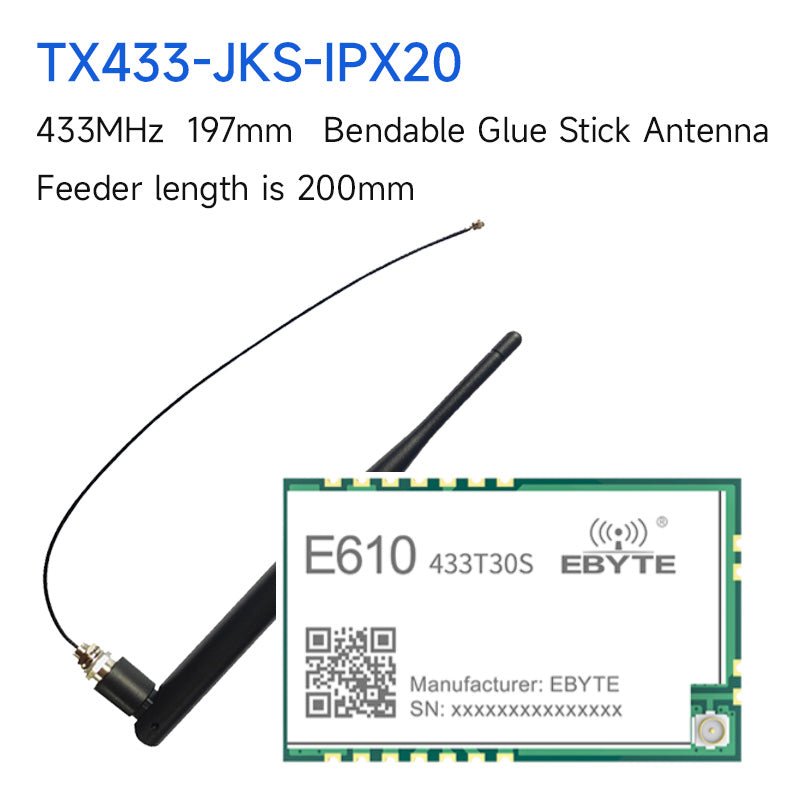

Antenna interface |
- | IPEX-1 | Equivalent impedance approx. 50 Ω | |
Dimensions | mm | 40.5*25.0*3.9(±0.1) | 16.0*26.0*3.9(±0.1) | Length*width*heig |
Weight | g | 5.2(±0.1) | 2.4(±0.1) | - |
RF paramete |
Unit | Performance | Remark | |
E610-433T30S | E610-433T20S | |||
Operating frequency band |
MHz | 410 ~ 441 | Global license-free ISM 433MHz band with user-programmable control |
|
Transmitting power |
dBm | 30.0±0.5 | 20.0±0.5 | User programmable control |
Blocking power |
dBm | 0 ~ 10.0 | Low burn-in probability for close range use | |
Receiving Sensitivity |
dBm | -120 ~ -123 | Airborne rate of 1.5kbp | |
Matching impedance |
Ω | 50 | IPEX-1 interface antenna matching impedanc | |
Air Rate | kbps | 0.5 ~ 470 | User-programmable control [Note 1] | |
Measured distance |
km | 2 (continuous transmission mode) |
1 (continuous transmission mode) |
Clear and open, height 2m, serial baud rate 115200 [Note 2] |
10 (general transmission mode) |
6 (general transmission mode) |
Clear and empty, height 2m, air rate 1.5kbps | ||
Note 1: Valid in general transmission mode. |
