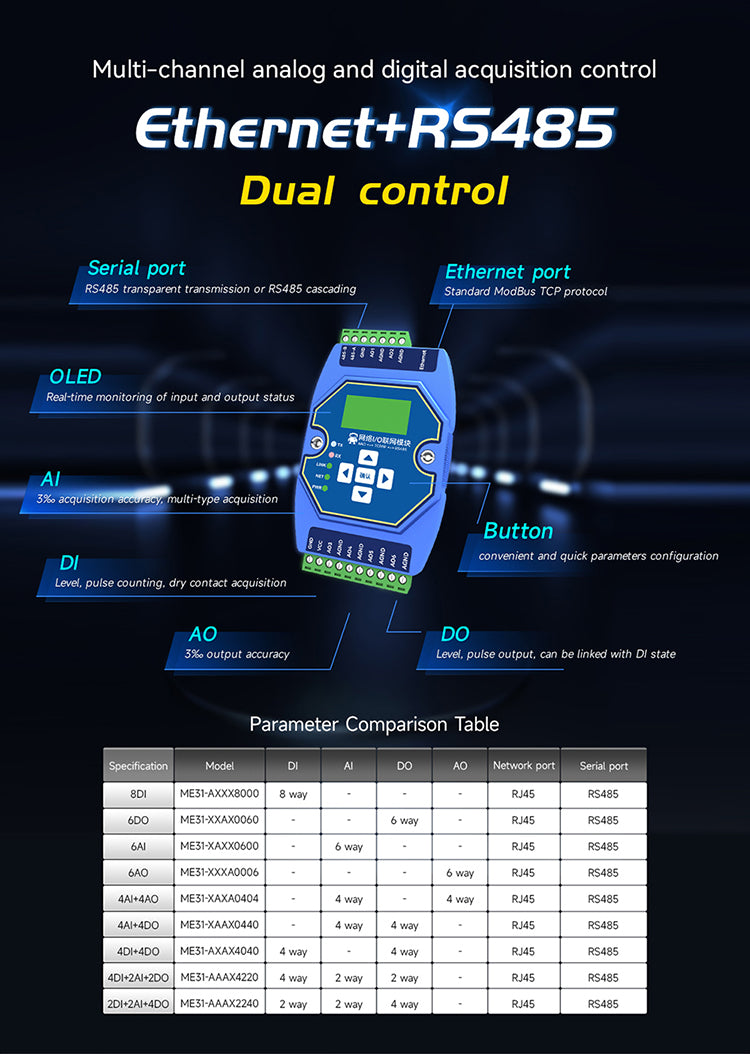

[Introduction]：ME31-XXXA0006 is a network I/O networking module with 6 analog outputs (0-20mA/4-20mA), supports Modbus TCP protocol or Modbus RTU protocol for acquisition control, and the device can also be used as a simple Modbus gateway (automatically send commands with non-local Modbus addresses through the serial port/network port).
[Communication interface]：RJ45, RS485
[Working voltage]：DC 8 ~ 28V
[Product weight]：135±5 g

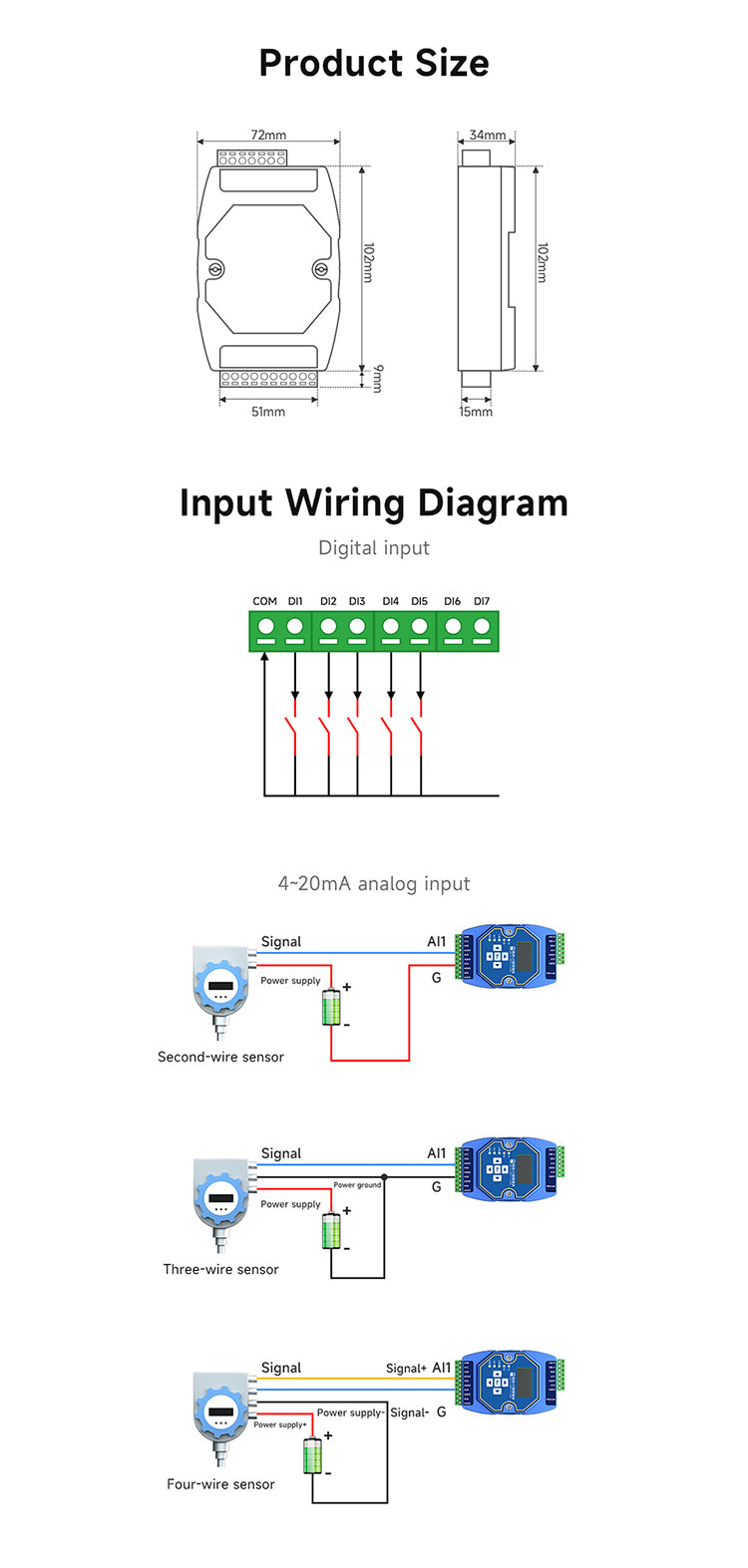

[Product size]：121*72*34mm
[Serial port baud rate]：9600bps (customizable)
| Category | Name | Parameters |
| power supply | Operating Voltage | DC8～28V |
| Power indicator | blue LED indication | |

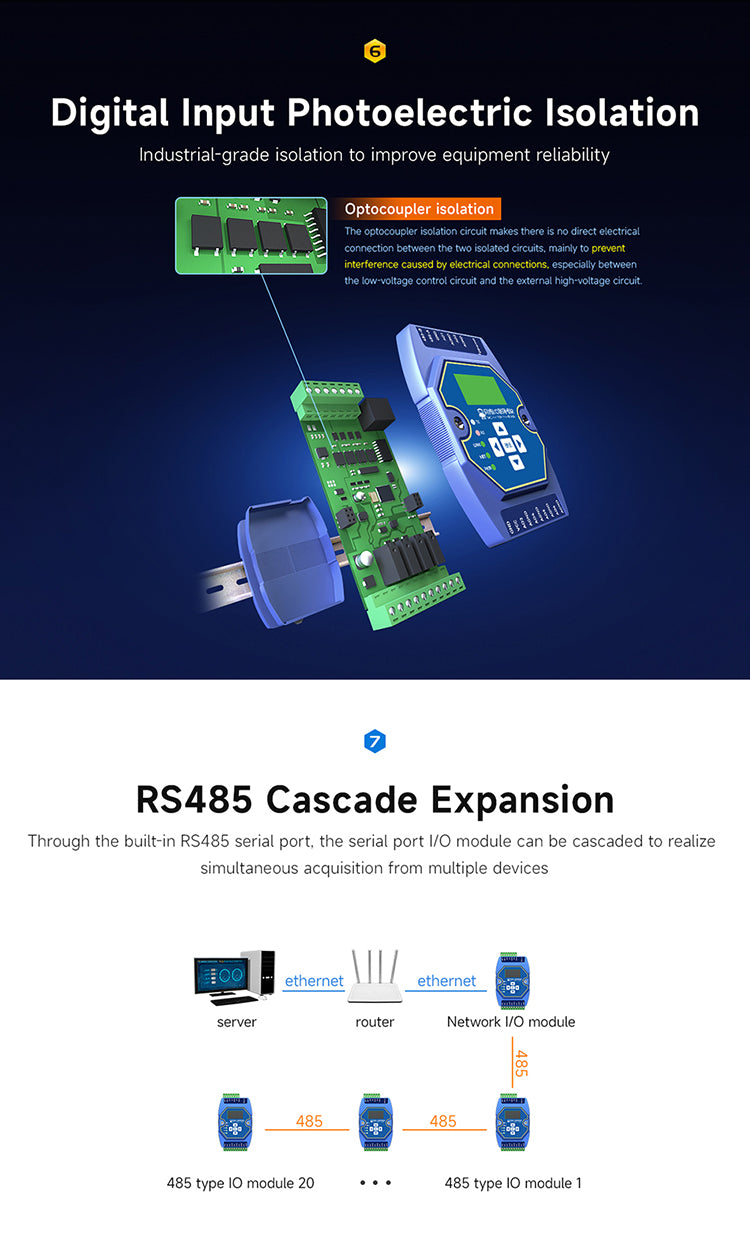

| serial port | Communication Interface | RJ45, RS485 |
| baud rate | 9600bps (customizable) | |
| Protocol | Standard Modbus TCP, Modbus RTU protocols | |
| MODBUS | device address | Can be modified by Modbus command and host computer |
| AO output | Number of AO channels | 6 way |
| AO output type | Current output, 2-wire connection | |
| AO output range | 0～20mA～20mA | |
| AO resolution | 16 bit | |

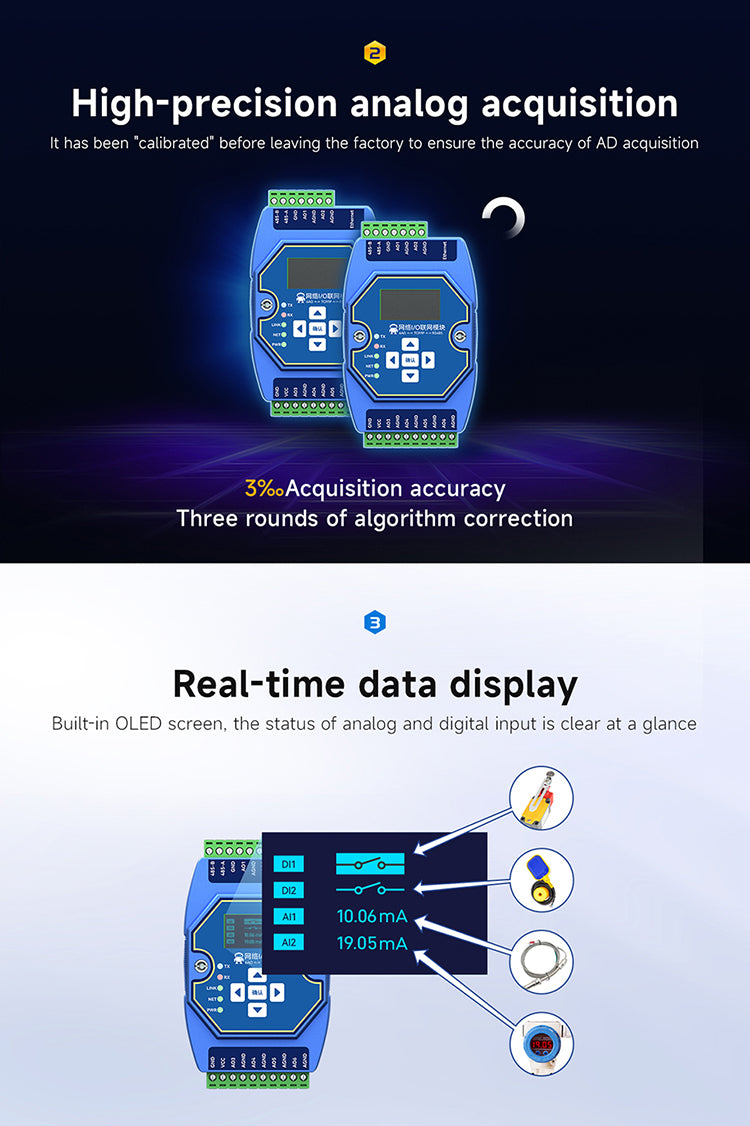

| Output accuracy | 3‰ | |
| output indication | OLED screen display | |
| other | Product Size | 121mm * 72mm * 34mm (L*W*H) |
| product weight | 135±5g | |
| Working temperature and humidity | -40 ～ +85℃, 5% ～ 95%RH (no condensation) | |
| storage temperature and humidity | -40 ～ E17+105℃, 5% ～ 95%RH (no condensation) | |
| Installation method | rail installation |
| Category | Name | Parameters |

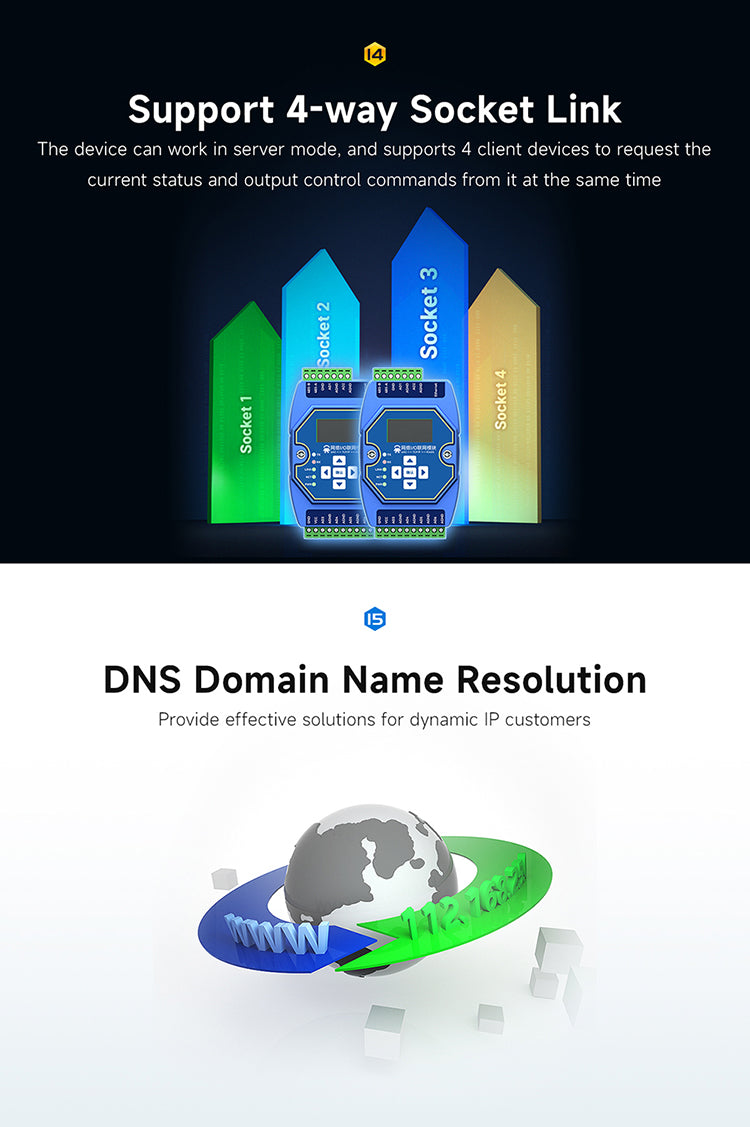

| Ethernet parameters | Operating mode | TCP server (up to 4-way client access) |
| Local IP | 192.168.3.7 | |
| local port | 502 | |
| subnet mask | 255.255.255.0 | |
| gateway address | 192.168.3.1 | |
| DHCP | closure | |
| Native MAC | Determined by the chip (fixed) | |
| target IP | 192.168.3.3 | |
| target port | 502 | |
| DNS server | 114.114.114.114 | |
| active upload | closure | |
| Serial parameters | baud rate | 9600bps (8 types) |
| Check method | None (default), Odd, Even | |
| data bit | 8 | |
| stop bit | 1 | |
| MODBUS parameters | Modbus master-slave | Slave |
| address | 1 |
