E15-LW-T1 alternative to Raspberry Pi SX1302,LoRa LoRaWAN gateway, PCIE interface, 230/433/470/868/915MHz frequency band PCIE Adapter board
[Interface]:PCI-e
[Size]:64.5*56mm
[Weight]: 23.89±0.2g

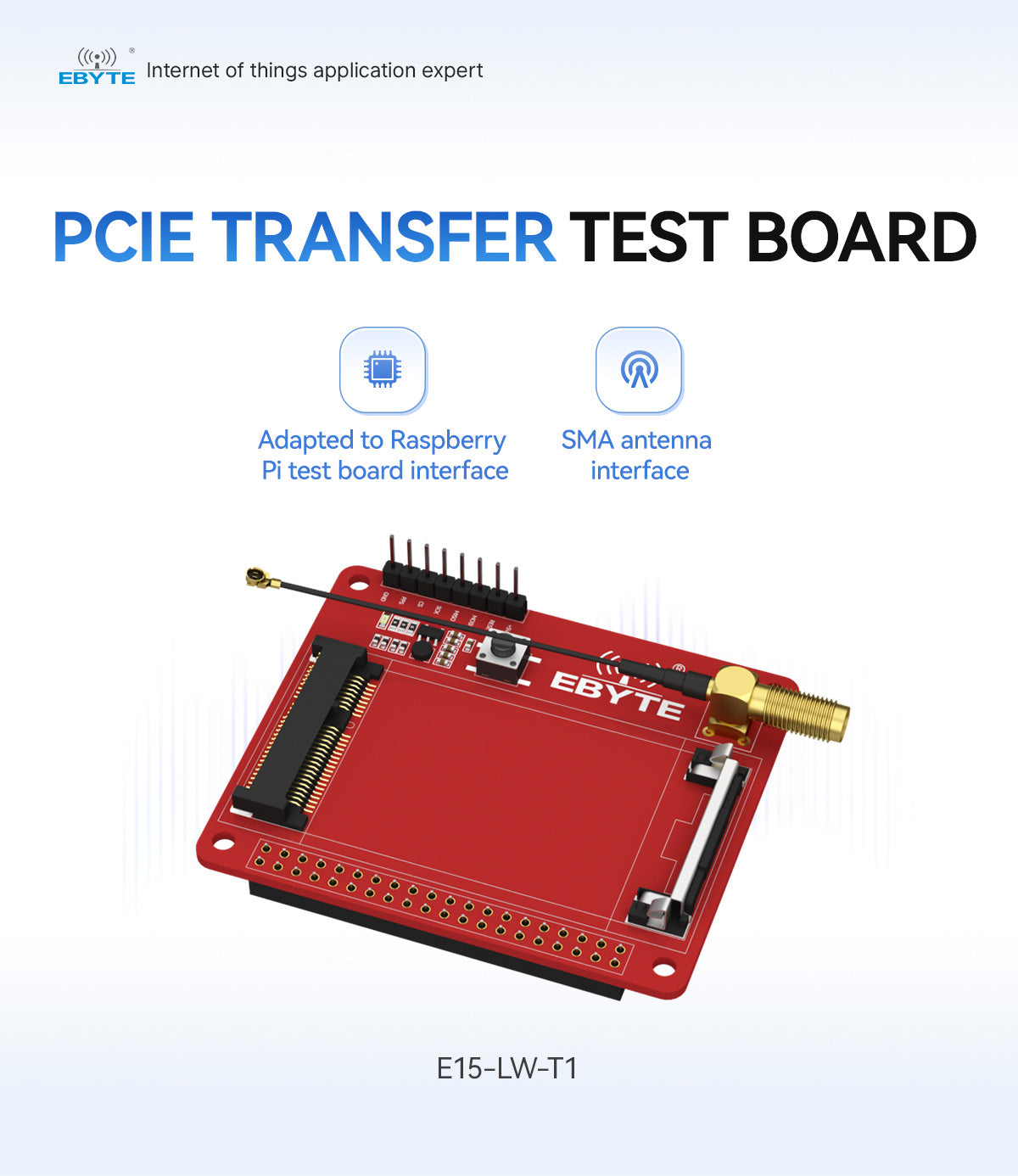

[Introduction]:E15-LW-T1 wireless module development board is a test and evaluation kit developed by Chengdu Ebyte for the mini PCI-e interface LoRawan module. The PCIE adapter board is mainly aimed at the embedded application of the E106 series LoRa gateway module launched by our company. , and equipped with ESD protection, supporting multiple systems and multiple baud rates. Developers can easily connect a variety of peripheral devices through jumpers according to actual needs.
| serial number | parameter name | Parameter value |
| 1 | Support module | E106-433G27P2、E106-868G27P2、E106-470G27P2、E106-915G27P2 |
| 2 | Test board size | 64.5*56mm |
| 3 | Production Process | Lead-free process, machine-mounted |
| 5 | Operating temperature | -40 ~ +85℃ |
| 6 | Working humidity | 10% ~ 90% |
| 7 | Storage temperature | -40 ~ +125℃ |
