[Working voltage]：DC 8~28V

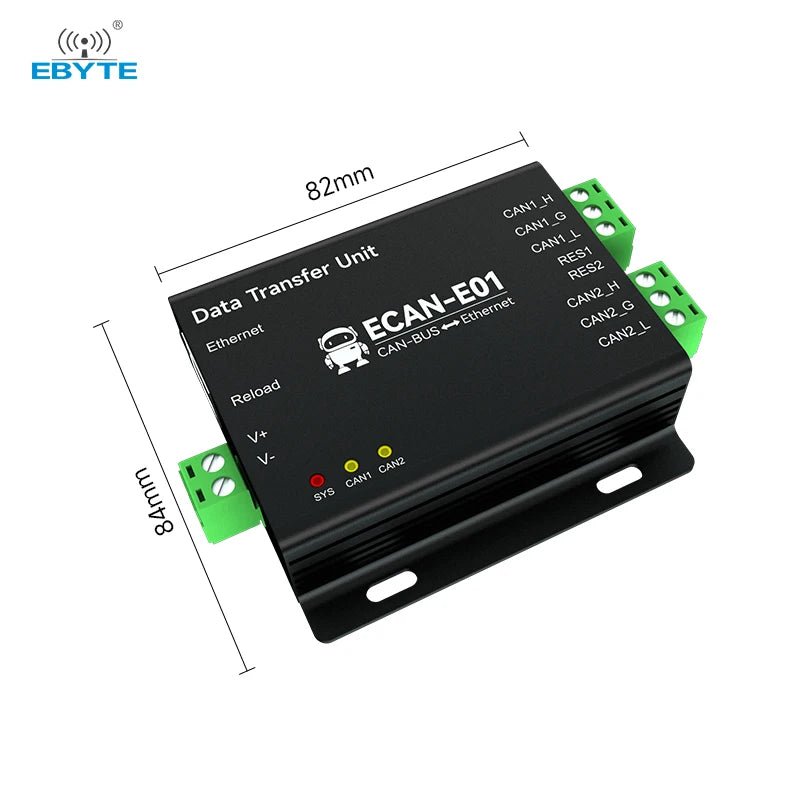

[Product size]： 82*84mm
[Product weight]： 120g

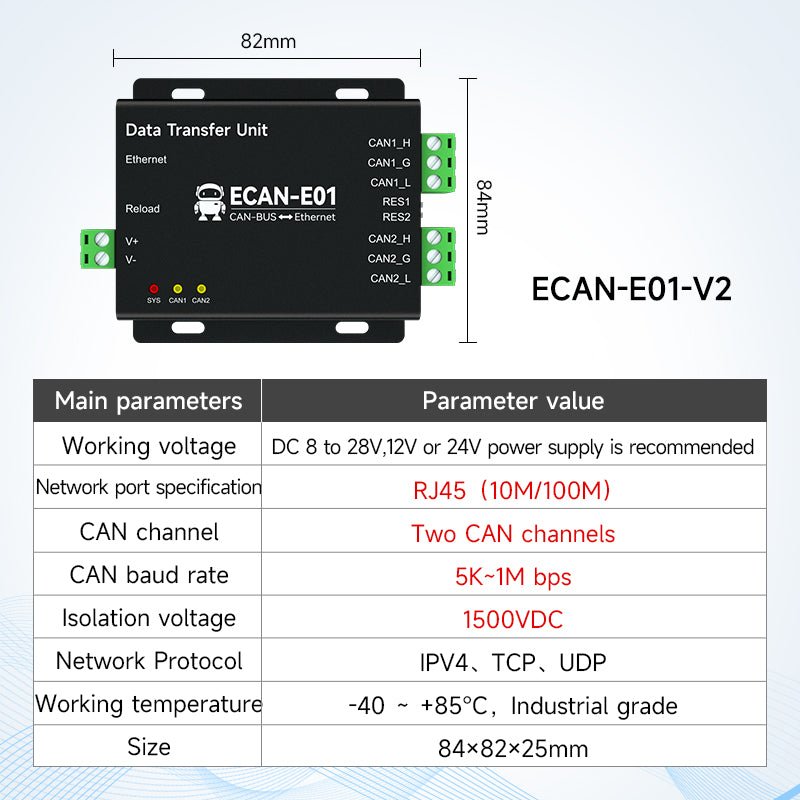

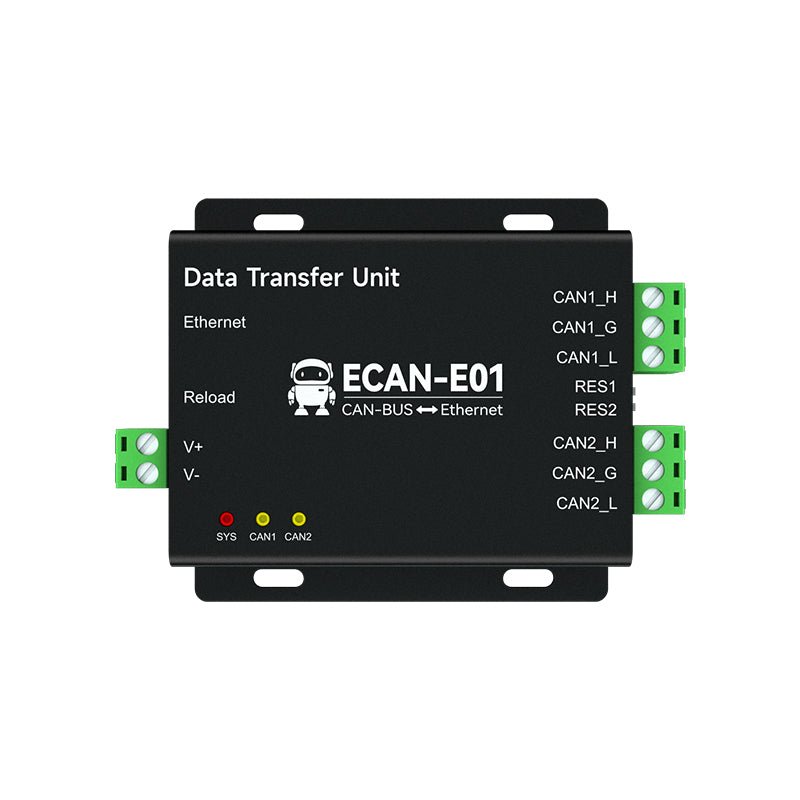

[Introduction]：ECAN-E01-V2 is a high-performance industrial Ethernet and CAN-bus data conversion device developed by Ebyte. The CAN gateway integrates 2 CAN-bus interfaces and 1 EtherNet interface, supports TCP/UDP protocol, and can easily complete the intercommunication between CAN-bus network and Ethernet network. The CAN gateway has a built-in 120 ohm resistor, which can be enabled by dialing; it supports working in the temperature range of -40℃～85℃. It has a 10M/100M Ethernet interface, high protection of CAN interface, and increased isolation; the maximum baud rate of 2 CAN ports is 1Mbps, with multiple working modes such as TCP Server, TCP Client, UDP, etc., and the parameters can be configured through the host computer configuration software.
| Serial number | project | Specification |
| 1 | Supply voltage | 8V~28VDC, more than 28V may burn out, 12V or 24V power supply is recommended |
| 2 | Network port specifications | Standard RJ45, support 10/100Mbps |
| 3 | Network Protocol | IP、 TCP/UDP、 |
| 4 | Simple transparent transmission method | TCP Server、TCP Client、UDP Server、UDP Client |
| 5 | TCP Server Connection | Supports up to 14 TCP connections |
| 6 | How to obtain IP | Static IP, DHCP |
| 7 | Domain name resolution | support |
| 8 | User Configuration | Host computer configuration |
| 10 | Operating temperature | -40 ~ +85℃, industrial grade |
| 11 | Operating humidity | 10% ~ 90%, relative humidity, non-condensing |
| 12 | Size | See dimensional drawing |
| 13 | Average weight | 120g |
| 14 | Storage temperature | -40～+85℃, industrial grade |
[Working voltage]：DC 8~28V
[Network protocol]：IP, TCP/UDP
[Product size]：100*84*25mm
[Product weight]：120g
[Introduction]：ECAN-E01S-V2 is a high-performance industrial Ethernet and CAN-bus data conversion device developed by Ebyte. It integrates 2 CAN-bus interfaces with a maximum baud rate of 1Mbps and 1 10M/100M Ethernet interface. It supports TCP/UDP protocol and has a built-in 120 ohm resistor, which can be enabled by dialing. It supports working in the temperature range of -40℃ to 85℃. It has multiple working modes such as TCP Server, TCP Client, UDP, etc., and the parameters can be configured through the host computer configuration software. It can easily complete the intercommunication between CAN-bus network and Ethernet network.
| Serial number | project | Specification |
| 1 | Supply voltage | 8V~28VDC, more than 28V may burn out, 12V or 24V power supply is recommended |
| 2 | Network port specifications | Standard RJ45, support 10/100Mbps |
| 3 | Network Protocol | IP、 TCP/UDP、 |
| 4 | Simple transparent transmission method | TCP Server、TCP Client、UDP Server、UDP Client |
| 5 | TCP Server Connection | Supports up to 14 TCP connections |
| 6 | How to obtain IP | Static IP, DHCP |
| 7 | Domain name resolution | support |
| 8 | User Configuration | Host computer configuration |
| 10 | Operating temperature | -40 ~ +85℃, industrial grade |
| 11 | Operating humidity | 10% ~ 90%, relative humidity, non-condensing |
| 12 | Size | See dimensional drawing |
| 13 | Average weight | 120g |
| 14 | Storage temperature | -40～+85℃, industrial grade |
