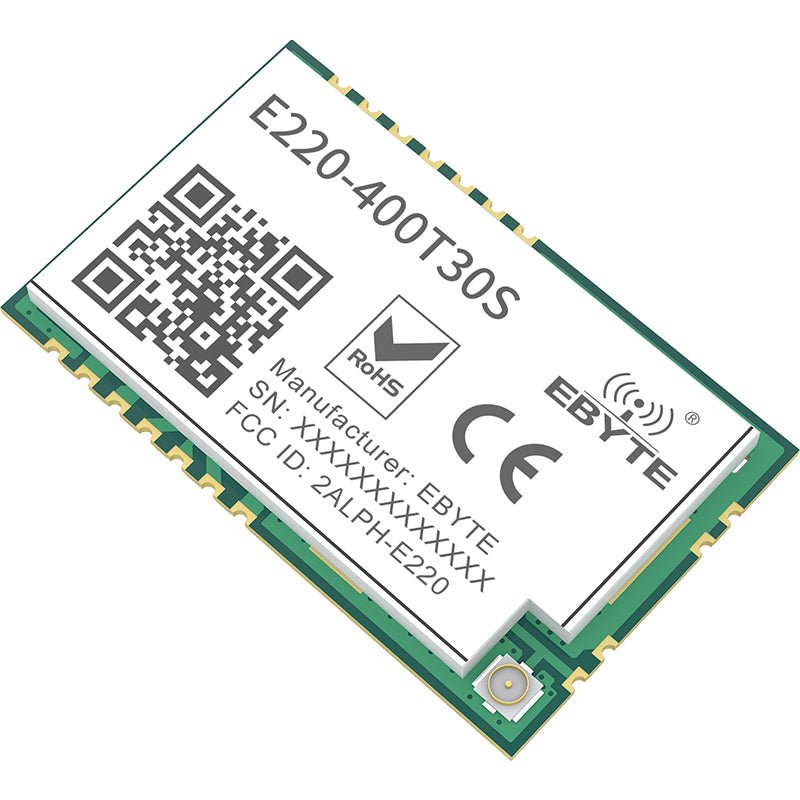

Ebyte E220-400T30S LoRa Wireless Module FSK RSSI ISM 433MHz 470MHz 30dBm LoRa Spread Spectrum SMD UART Interface IPEX Antenna

$6.99

Shipping calculated at checkout.

E220-400T30S is a wireless serial port module (UART) based on SEMTECH's LLCC68, with an operating frequency of 410.125~493.125MHz (default 433.125MHz), TTL level output, and is compatible with 3.3V and 5V IO... Read more

Availability: In Stock

Free Gift: TI Samples $0.00, ESP32 Samples $0.00(Christmas Only)

Shipping: Free Air Shipping Over $79.99

Ship From: China EBYTE Manufacturer Factory

Bulk Purchase Tips: Please confirm the firmware version of the test sample with the salesperson before purchasing

Order today. Get it and , hoursminutes

Module plus antenna:: E220-400T30S

  • E220-400T30S

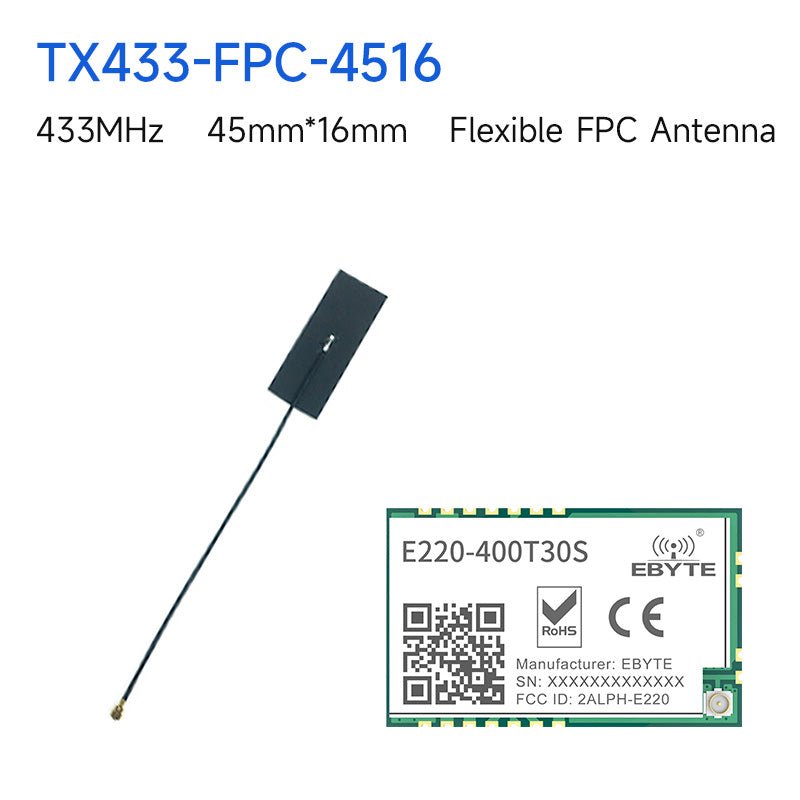

  • E220-400T30S and TX433-FPC-4516

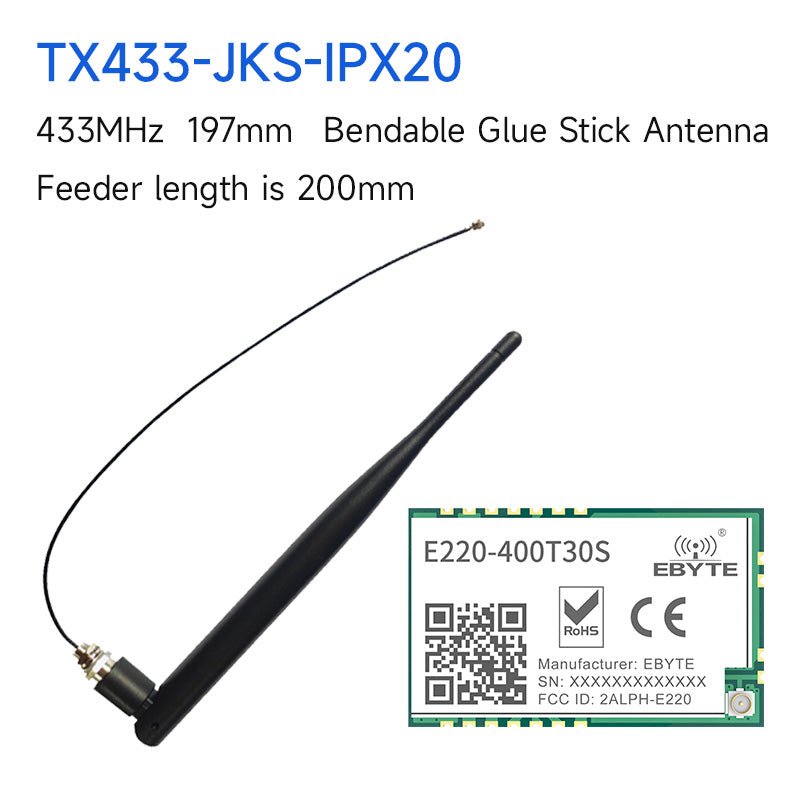

  • E220-400T30S and TX433-JKS-IPX20
Se enviarán después de [19041994]
$6.99
Sin existencias
SKU: E220-400T30SNo disponibleEtiquetas: 10km, 30dBm, 433mhz, 470mhz, IPEX, SMD, UART

Guaranteed Safe Checkout

paypalvisadiscovermaestroamerican express

Every day, EBYTEIOT serves hundreds of clients worldwide, ensuring that we always remain responsive.

Free Shipping: All product orders with a total amount exceeding $79.99 qualify for free shipping.

Total time = processing time + shipping time (shipping time is business days)

Processing time = the time between placing an order and us shipping it.

Shipping time = the time it takes for your order to be shipped and delivered to you.

Processing time: 7 working days


Shipping time: 7-15 working days by China Post Air Mail (may take up to 45 working days due to unpredictable factors such as weather and customs processing).



Please be advised that we do not deliver to

  • Cuba
  • Islamic Republic of Iran
  • Democratic People's Republic of Korea (North Korea).
  • Sudan
  • Syria
  • Venezuela
  • Yemen

We apologize for any inconvenience this may cause.



Cancel order

We accept order cancellations before the product is shipped. If your order is canceled, you will receive a full refund. We cannot intercept order cancellations if the product has already been shipped.


Returns

We accept product returns. Customers have the right to request a return within 30 days of receipt of the product. To be eligible for a return, your item must be unused and in the same condition you received it. It must also be in its original packaging. To complete your return, we require a receipt or proof of purchase.

If the return is caused by the consumer, the consumer will bear the shipping costs. The exact cost depends on the courier company you choose.

If the product is damaged or unusable due to our fault, such as product or transportation reasons, please contact EBYTE: ebyteiot@cdebyte.com. After communication with our technical staff, we will arrange for a reissue or refund.


Refund

Once your return has been received and inspected, we will send you a delivery notification via email. We will also notify you of approval or rejection of the refund. If you're approved, your refund will be processed and automatically credited to your credit card or original payment method within 15 business days.

Contact

Contact our customer service at ebyteiot@cdebyte.com.

Tel: +086 028 61543675

Return address: Building B5, No. 199, West District Avenue, High Tech West District Chengdu, China.



EBYTE product technical manual and detailed parameters download: https://www.cdebyte.com/Product-Selection

E220-400T30S is a wireless serial port module (UART) based on SEMTECH's LLCC68, with an operating frequency of 410.125~493.125MHz (default 433.125MHz), TTL level output, and is compatible with 3.3V and 5V IO port voltages.

IC: LLCC68

Frequency: 410.125~493.125MHz

Power: 30dBm

Distance: 10km

Size: 25*40.5mm

Weight: 6.95g

Certification
【CE Certification】E220-400T30S_CE
【ROHS Certification】E220-400T30S-ROHS
【FCC Certification】E220-FCC

Company Profile
Xcom
Configer Tool
Ebyte Company Profile

Product Descriptio
【PCB_LIB】E220-400T30S
Mannual

Main parameter Performance Remark
Operating frequency 410.125~493.125MHz Support ISM band
Tx power 30 dBm -
Receiving sensitivity -129dbm Air data rate: 2.4kbps
Air data rate 2.4k~62.5kbps Controlled via user’s programming
Distance for reference 10Km Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 2.4kbps
Main parameter Description Remark
Size 25 * 40.5 mm
Antenna IPEX/Stamp hole
Communication interface UART TTL level
Package SMD
Main parameter Min. Typ. Max. Unit Remark
Operating voltage 3.3 5.0 5.5 V ≥5.0 V ensures output power
Communication level - 3.3 - V For 5V TTL, it may be at risk of burning down
TX current - 610 - mA Instant power consumption
RX current - 17 - mA
Sleep current - 3 - uA Software is shut down@30dBm
Operating temperature -40 20 +85 Industrial design

EBYTE factory certificate market

Module plus antenna:

E220-400T30S, E220-400T30S and TX433-FPC-4516, E220-400T30S and TX433-JKS-IPX20
